Carport Schwaben 434 x 630, colour pre-treated light oak

€8,155.00*

Prices incl. VAT plus shipping costs

Color

Natural

Light oak

Walnut

White

Slate-grey

Size

434 x 630 cm

Product number: 245055-01-20

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

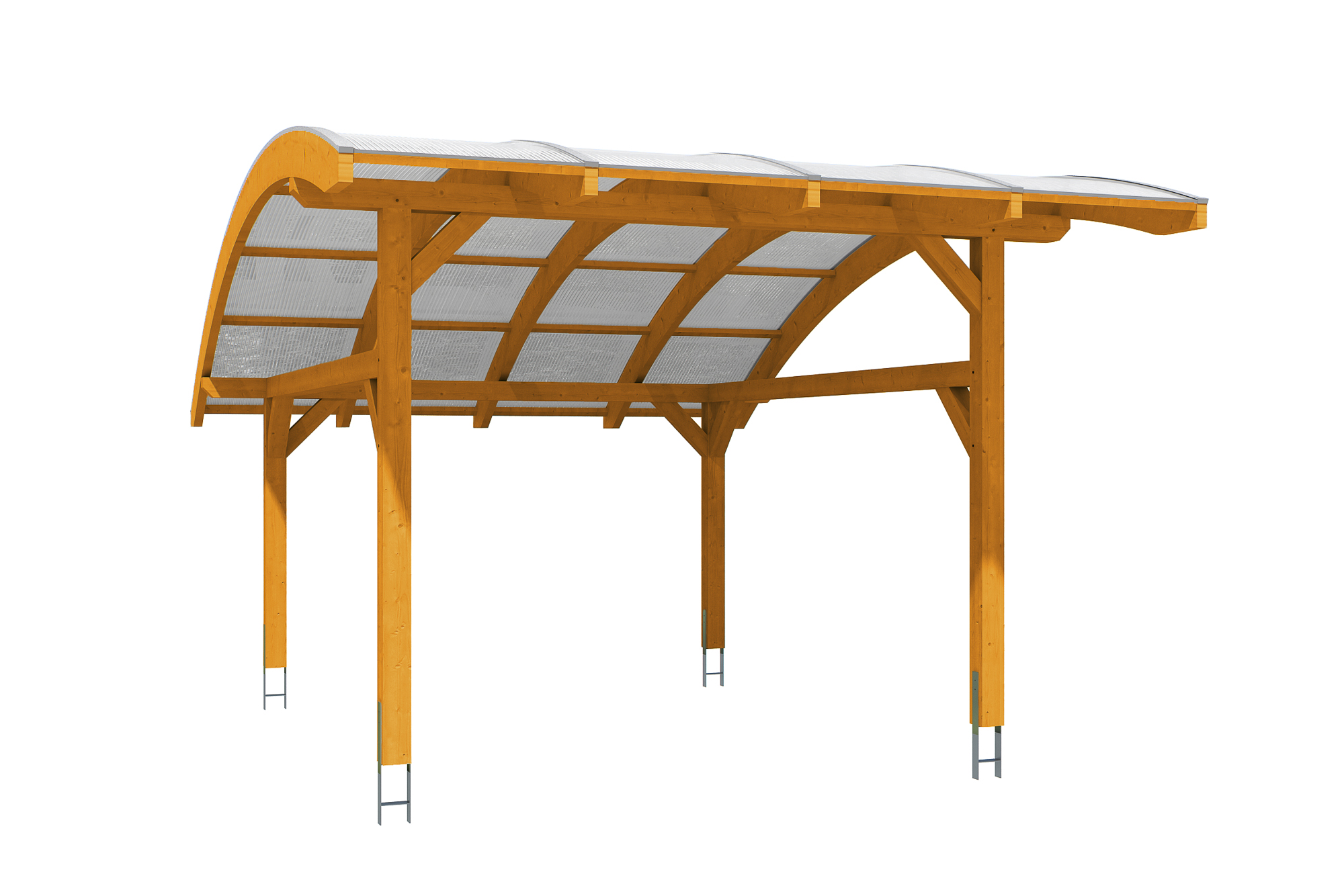

SKAN HOLZ Carport Schwaben

Round-roof carport

Exterior dimensions 434 x 630 cm

solid structure of high quality glued laminate (BSH spruce)

colour-treated in light oak

posts 14 x 14 cm including H-post anchor

Roofing 16 mm Polycarbonate sheet in clear

Construction

The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.

Color treatment

The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.

You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.

If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.

Roofing

Roofing consists of stable, 16 mm-thick polycarbonate twin-wall sheet. The top face is provided with a UV-reflecting layer. It is attached with a high-quality aluminium profile with EPDM lip-seals.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Round-roof carport

Solid structure of glued laminate (BSH spruce)

Colour-treated in light oak

Roofing: Polycarbonate sheet in clear

Posts 14 x 14 cm

Material:	Glulam, spruce
Color:	Light oak
Color treatment:	Stained
Size:	434 x 630 cm
Basic width:	348 cm
Basic length:	428 cm
Total width:	434 cm
Total length:	630 cm
Roof ridge height:	317 cm
Roof eave height:	186 cm
Total height (front):	286 cm
Total height (behind):	186 cm
Roof shape:	Round roof
Material roof covering:	Polycarbonate multiwall sheets
Color roofing:	Transparent
Roof thickness:	16 mm
Roof surface:	28.64 m²
Roof slope:	backwards
Roof overhang (front):	126 cm
Roof overhang (behind):	76 cm
roof overhang (left):	43 cm
roof overhang (right):	43 cm
Base surface:	27.34 m²
Building volume:	80.12 m³
Passage width:	320 cm
Passage height (front):	263 cm
Passage height (behind):	171 cm
Thickness of posts:	14 x 14 cm
Post spacing (width):	320 cm
Post spacing (depth):	400 cm
Number of posts:	4 Stück
Anchoring:	Post anchors
Snow load:	2.5 kN/m²
Wind pressure:	0.96 kN/m²
Surface wood:	42.04 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	6 weeks
Number of packages:	2
package weight 1:	344 kg
packaging width 1:	665 cm
packaging height 1:	45 cm
packaging length 1:	120 cm
package weight 2:	250 kg
packaging width 2:	635 cm
packaging height 2:	40 cm
packaging length 2:	120 cm
Total weight:	594 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)

Accessories

Guttering set 434cm, anthrazit, steel

Weather-resistant metal gutter set.Length: 434 cmColour: anthracite coateddiameter gutter 100 mmdiameter downpipe 75 mmconsisting of :gutter(s)downpipeconnection elementsgutter end piecespipe clampsgutter bracketsdownpipe bendscrews for gutter bracketssilicone cartridge for sealingEasy insertion and clamping of parts, one-time gluing of gutter end pieces, no soldering nor welding.Metal gutter setAnthraciteDiameter gutter 100 mmDiameter downpipe 75 mm

€269.00*

Details

Sidewall for glulam carports 230 x 180 cm, spruce, colour pre-treated in light oak

Siding for installation in a SKAN HOLZ CarportSiding consists of loose boarding in 20 mm thickness, and is not installed until the carport has been completely erected. It provides for increased stability, privacy shield from the side, and protection from wind and overgrown hedges.Product featuresWidth: 230 cmHeight: 180 cmthickness siding: 2 x 12 cmMaterial: nordic sprucecolour-treated in light oakPhoto galleryAny illustrated terrace roofs, colour treatment and decoration are not included in scope of supply. This involves customer photos, which are to provide you with an impression of the installed condition.ConstructionThe construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Sidewall, nordic sprucePanels with vertical slatsSuitable for post spacing of 230 cmColour-treated in light oak

€509.00*

Details

Backwall for glulam carports 341 x 180 x m, spruce, colour pre-treated in light oak

Backwall of siding for installation in a SKAN HOLZ CarportSiding consists of loose boarding in 20 mm thickness, and is not installed until the carport has been completely erected. It provides for increased stability, privacy shield from the side, and protection from wind and overgrown hedges.Product featuresWidth: 341 cmHeight: 180 cmthickness siding: 2 x 12 cmincluding H-post anchorMaterial: nordic sprucecolour-treated in light oakPhoto galleryAny illustrated terrace roofs, colour treatment and decoration are not included in scope of supply. This involves customer photos, which are to provide you with an impression of the installed condition.ConstructionThe construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Backwall, nordic sprucePanels with vertical slatsSuitable for post spacing of 341 cmColour-treated in light oak

€885.00*

Details

Post extension 14x14cm in running meters, glulam, colour pre-treated in light oak

Do you need longer posts?Order the post extension for your terrace roof or carport of glued laminate. The posts in the building kits are then replaced with longer posts.Product featuresThickness: 14 x 14 cmMaterial: glulam, sprucecolour-treated in light oakAttention: the surcharge applies per post, and they can only be ordered directly with the carport/terrace roof.Post extension 14x14cm in running meters14 x 14 cmGlued laminateColour-treated in light oak

€66.28*

Details
