Wooden garage Varberg 3, 570 x 525 cm, untreated

€7,299.00*

Color
Size
Product number: 247172
Premium quality for your garden
*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

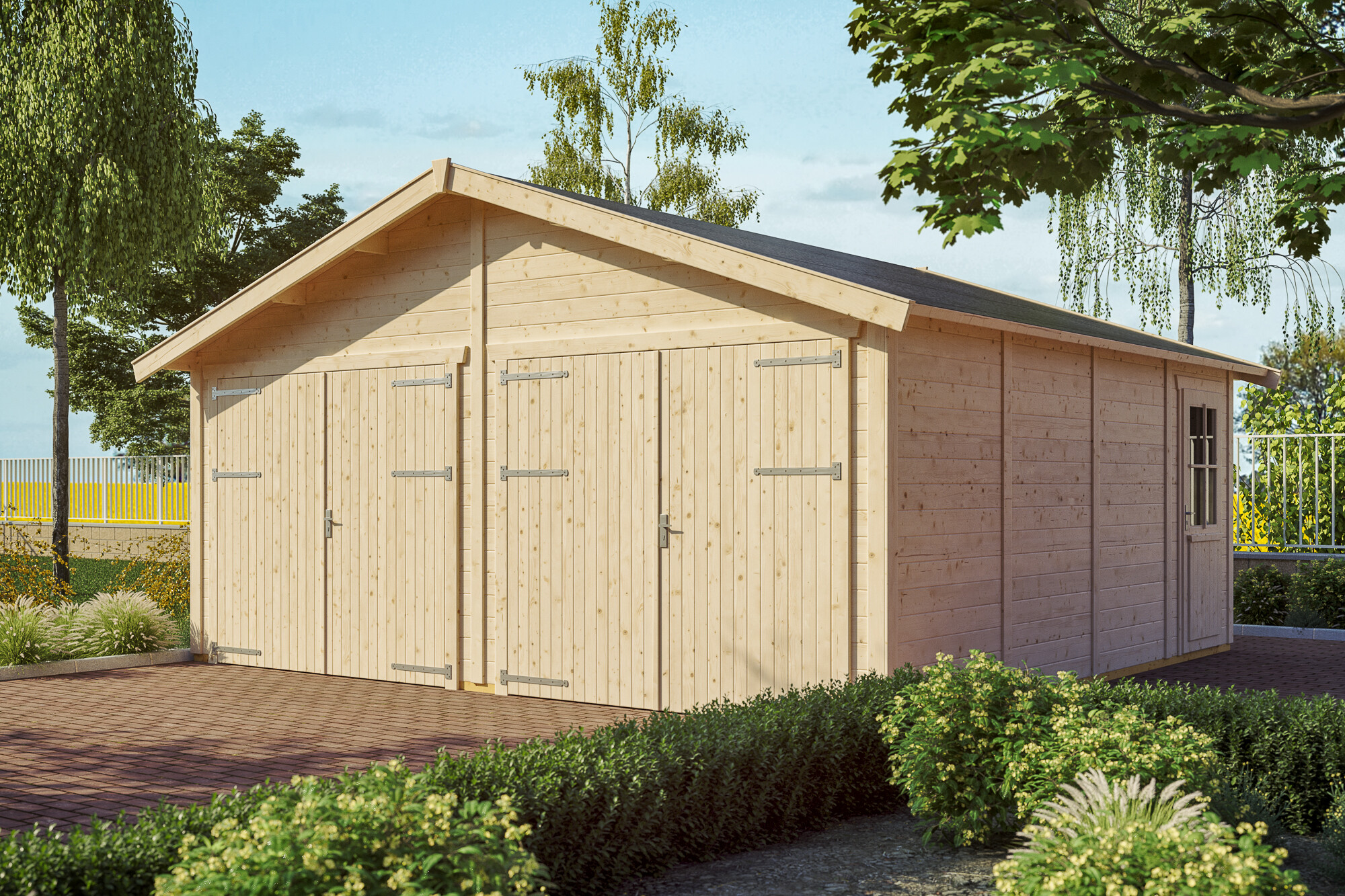

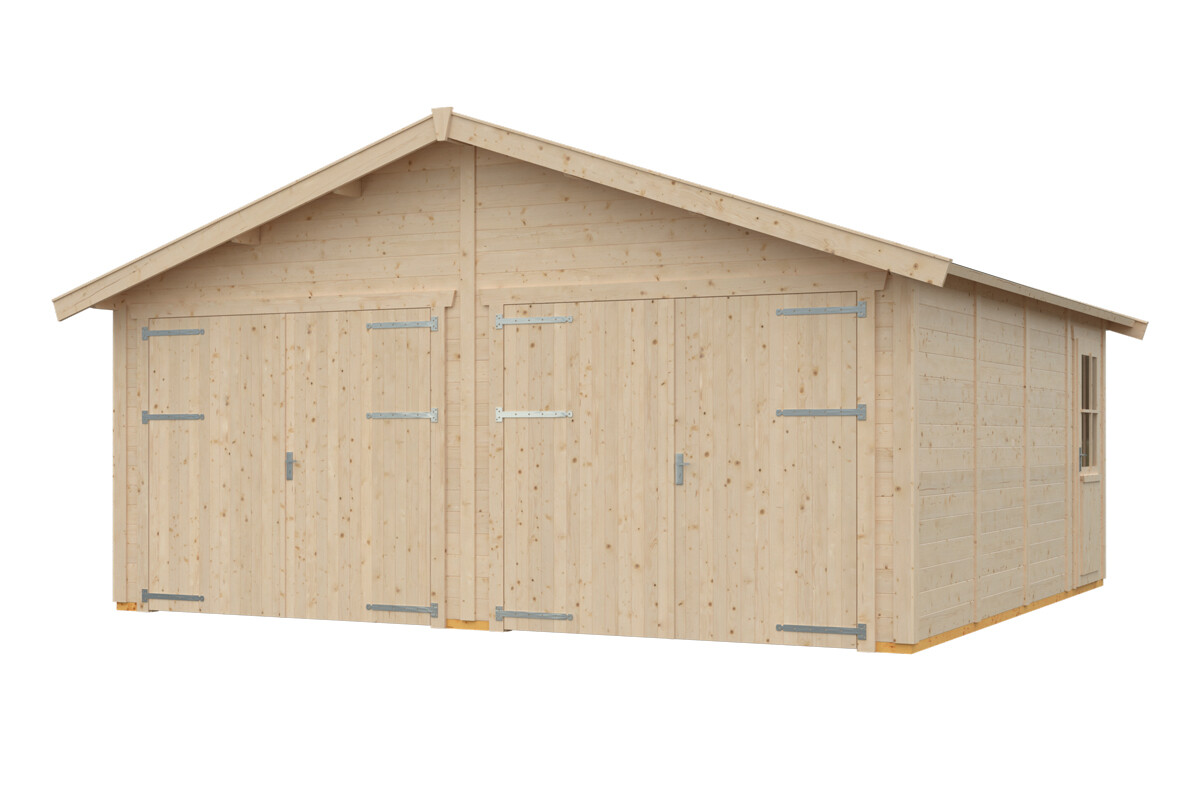

SKAN HOLZ wood garage Varberg 3


  • Size 570 x 525 cm

  • not colour-treated

  • high-quality Nordic spruce

  • 4-side planed 45 mmwall logs with tongue and double groove

  • bolted corner connection

  • impregnated ground supports

  • Door with real glass and fitted glazing bars

  • Moulded cylinder lock with 3 keys

  • Door clear opening door w x h 78,5 x 186,5 cm

  • including 2 garage doors

  • Aperture dimensions w x h 226 x 198 cm

  • Roof 19 mmtongue-and-groove profile boarding including 1 layer roofing felt for initial cover

  • Shingles optionally available




Construction

The construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.


Color treatment

The wooden parts of this building kit are not color treated. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular, all-round application of protective coatings is thus essential. First apply wood primer to protect against fungus and insects. Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage.

Ideally, assemble between application of the first and second coat of varnish/paint. The poling boards must have dried prior to assembly. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.


Walls

All 45 mm-thick wall logs have a double-groove and tongue milling. The logs are inserted into one another and slotted and screwed into the corner post.


Roofing

The roof is supplied with 19 mm-thick roof boarding with tongue and groove for roofing with shingles. (roof shingles are optionally available). A layer of roofing felt is included.


  • high-quality Nordic spruce

  • 45 mm wall logs

  • « Trend » corner connection

  • impregnated ground supports

  • Roof 19 mm profile boarding

Material: Nordic spruce
Color: Natural
Color treatment: Untreated
Size: 570 x 525 cm
Basic width: 570 cm
Basic length: 525 cm
Total width: 610 cm
Total length: 585 cm
Inside width: 561 cm
Inside depth: 516 cm
Roof ridge height: 319 cm
Height sidewall: 222 cm
Wall type: Logs
Wall thickness: 45 mm
Corner construction: Trend, obtuse corner design
Wind bracing: Corner post with screw connection
Wall surface outside: 62.29 m²
Number of rooms: 1
Roof shape: Saddle roof
Roof construction: 19 mm roof boards
Material roof covering: 1 layer of roofing felt
Color roofing: Black
Roof thickness: 19 mm
Roof surface: 37.4 m²
Roof edging: Wooden fascia
Roof slope: to the side
Slope: 19 °
Roof overhang (front): 30 cm
Roof overhang (behind): 30 cm
roof overhang (left): 20 cm
roof overhang (right): 20 cm
Shingles required á 2m²: 21 package(s)
Ground supports: Squared timber, impregnated
Dimension ground supports: 60 x 60 mm
Base surface: 29.93 m²
Building volume: 80.95 m³
Passage width: 226 cm
Passage height (front): 198 cm
Snow load: 0.85 kN/m²
Wind pressure: 0.65 kN/m²
Mounting material: Included
delivery time: 4 weeks
Number of door 1: 1
Type of door 1: Single door, half glased
Opening dimensions door 1: 78,5 x 186,5 cm
Glazing door 1: Single glass
Door lock 1: Moulded cylinder lock with 3 keys
Number of door 2: 2
Type of door 2: Double door
Opening dimensions door 2: 226 x 198 cm
Door lock 2: Moulded cylinder lock with 3 keys
Door hinge: right hinge
Number of packages: 1
package weight 1: 2003 kg
packaging width 1: 580 cm
packaging height 1: 90 cm
packaging length 1: 120 cm
Total weight: 2003 kg
Not inclusiv: Cement, anchoring basic storage with underground (foundation)
Garantie: 5 years according to our warranty conditions
delivery Note: Road that must support a 38t truck (Germany, mainland)
