SKAN HOLZ Novara terrace roof
The Novara terrace roof offers an elegant and robust solution for providing a weatherproof, high-quality roof for your outdoor area. The structure made of solid glued laminated timber (glued laminated timber) from Nordic spruce combines high load-bearing capacity with dimensionally stable, low-crack components. The factory colour treatment preserves the natural appearance of the wood and protects against UV and moisture damage.
Key features at a glance:
- Dimensions - choose from many different sizes to suit your needs
- Glued laminated timber - multi-layer glued wood for high dimensional stability and low warping
- Posts 8 x 22 cm including galvanised lugs for setting in concrete in on-site point foundations
- Roofing: 16 mm polycarbonate multiwall sheets in clear with UV-reflective surface for optimum light transmission and weather protection
- Aluminium profiles with EPDM lip seals for permanent, watertight fastening of the double-skin sheets
Notes on surface treatment:
- The kit is pre-treated at the factory so that you can start assembly immediately after delivery.
- An enclosed repair quantity of glaze enables the professional post-treatment of drill holes and interfaces.
- If you require additional finishing, we recommend light sanding and painting with high-quality glaze after assembly.
Technical and assembly-relevant information:
- Scope of delivery: complete glulam construction, polycarbonate multiwall sheets, aluminium profiles with seal
- Not included: Wall fastening material; this must be selected on a project-specific basis
- Anchoring: Lugs made of galvanised flat steel enable secure anchoring in point foundations to be created on site
The Novara terrace roof combines a well thought-out structure with an attractive design and is ideal for transforming your terrace into a sheltered favourite spot. Whether for relaxing hours outdoors, socialising or as an elegant extension to your living space in the garden - this model impresses with its solid construction, aesthetic design and timeless effect. It combines a natural look with high-quality technology: durable glued laminated timber, weather-resistant polycarbonate multiwall sheets and corrosion-protected anchoring elements ensure a durable, functional solution for your outdoor area. Ideal for homeowners who value quality, durability and an attractive design.
Construction
The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.
Color treatment
The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.
You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.
If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.
Roofing

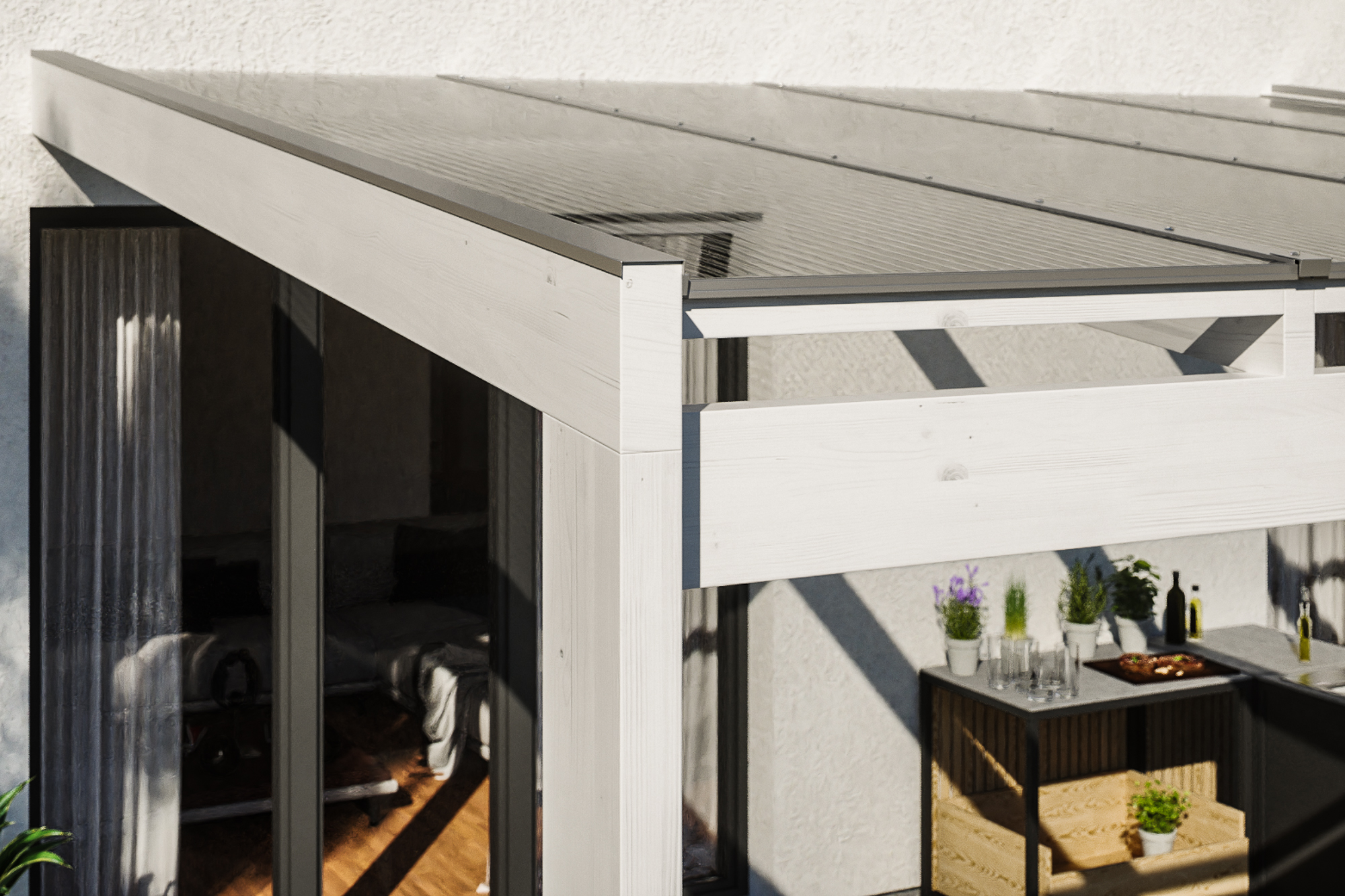

Roofing consists of stable, 16 mm-thick polycarbonate twin-wall sheet. The top face is provided with a UV-reflecting layer. It is attached with a high-quality aluminium profile with EPDM lip-seals.
Bracing
The building kit includes galvanized flat-steel post anchors. They are screwed into the support, embedded in concrete and ensure secure connection to the subsurface.
- Solid structure of glued laminate (BSH spruce)
- Colour-treated in white
- Roofing: Polycarbonate sheet in clear
- posts 8 x 22 cm
- Including fishplates for embedding in concrete
