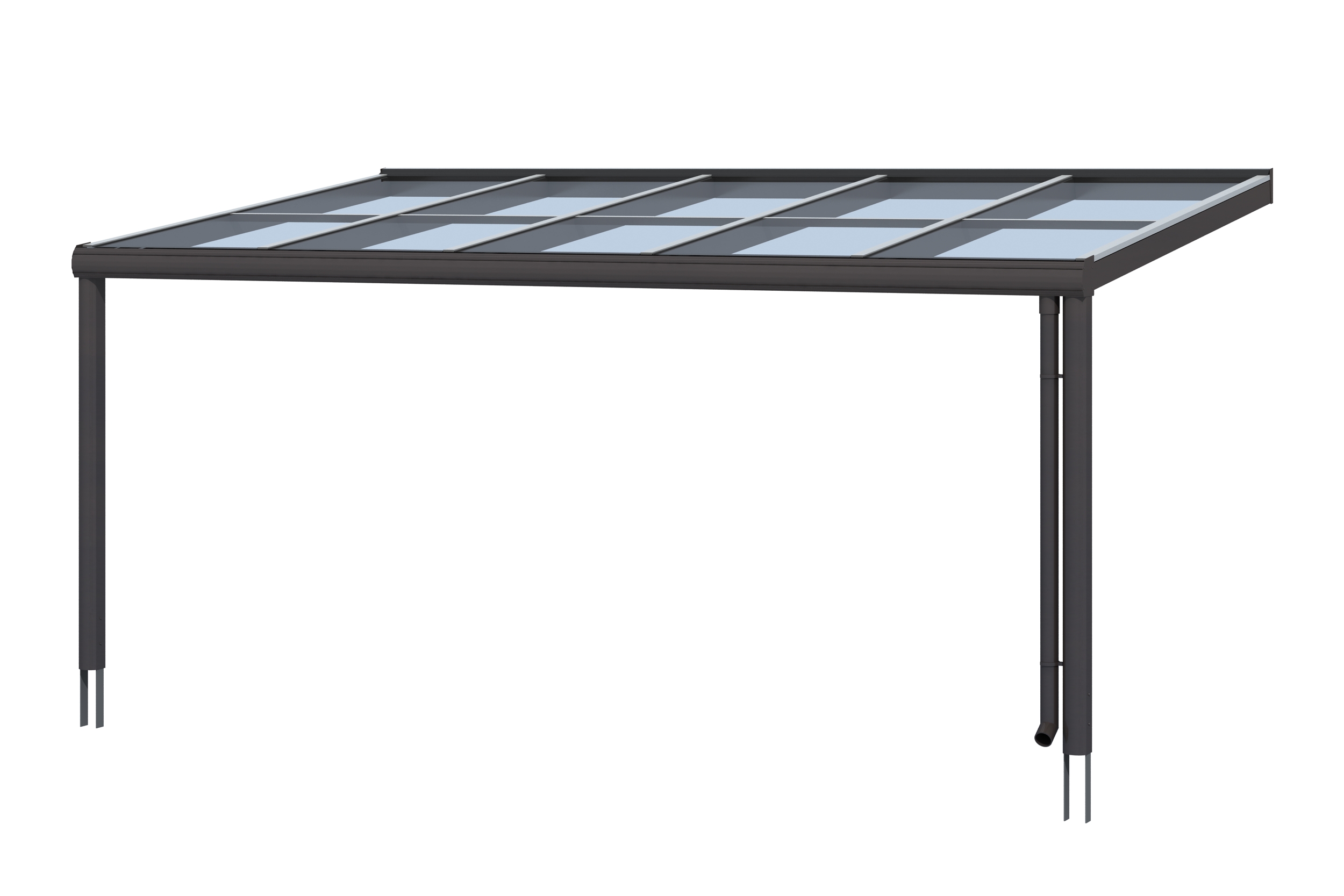

SKAN HOLZ Terrace roof Modena
- Exterior dimensions 541 x 357 cm
- high-quality aluminium structure, powder coated in anthracite (DB703)
- post 11 x 11 cm, front-rounded, including fishplates for embedding in concrete
- modern design with distinctive profile
- gutter integrated into the purlin
- Downpipe either in post or on exterior of post

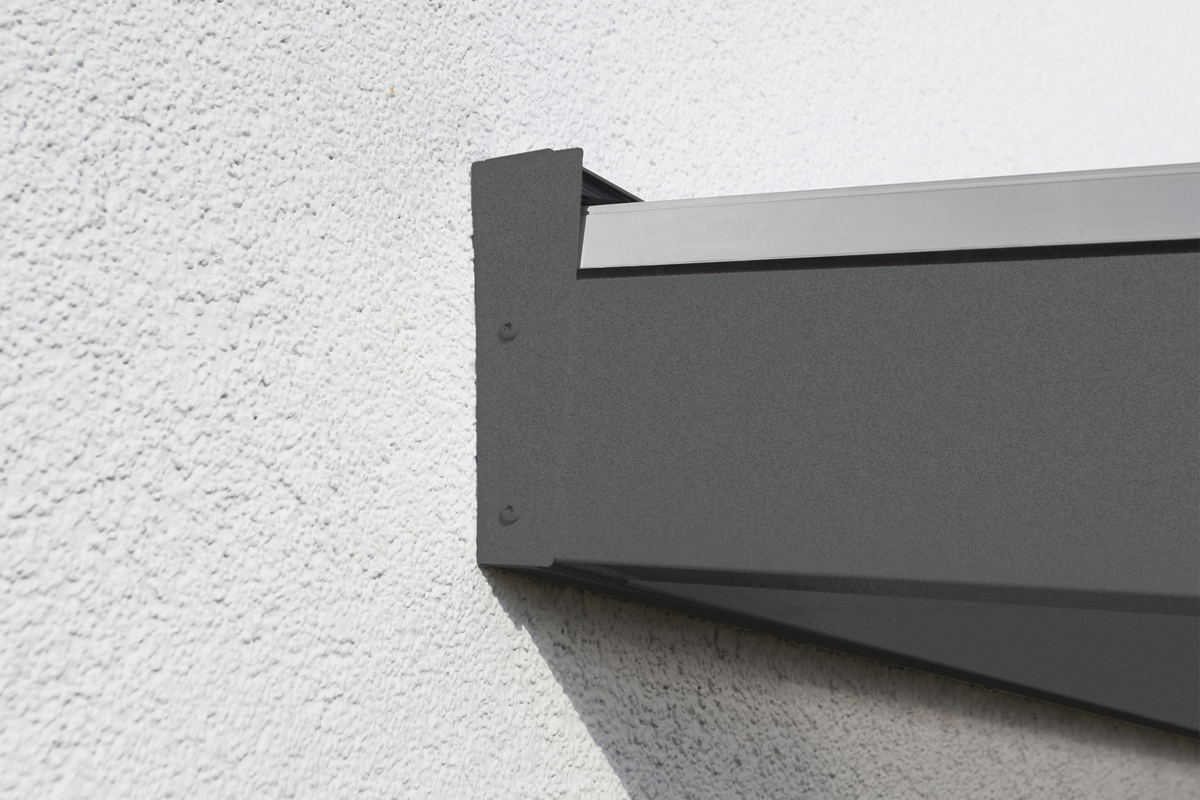

- integrated wall connection profile
- Roofing of 10 mm-thick laminated safety glass
- Supplied without wall-attachment material
Construction

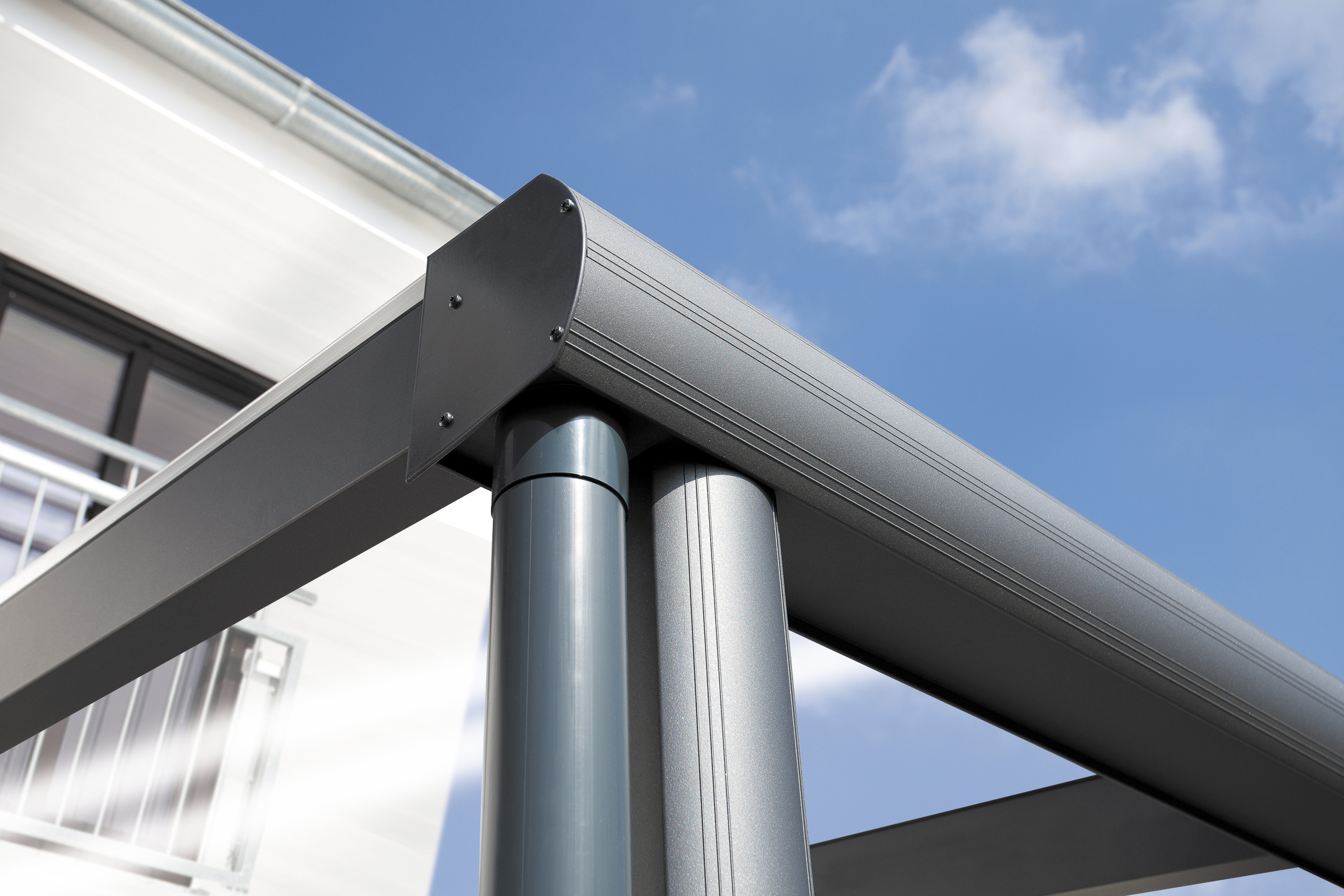

The premium, powder-coated aluminium building kit includes 11 x 11 cm-thick posts which are rounded at the front. The stable and sturdy structure sports a modern design with a distinctive profile. Drip moulding is integrated into the beam.

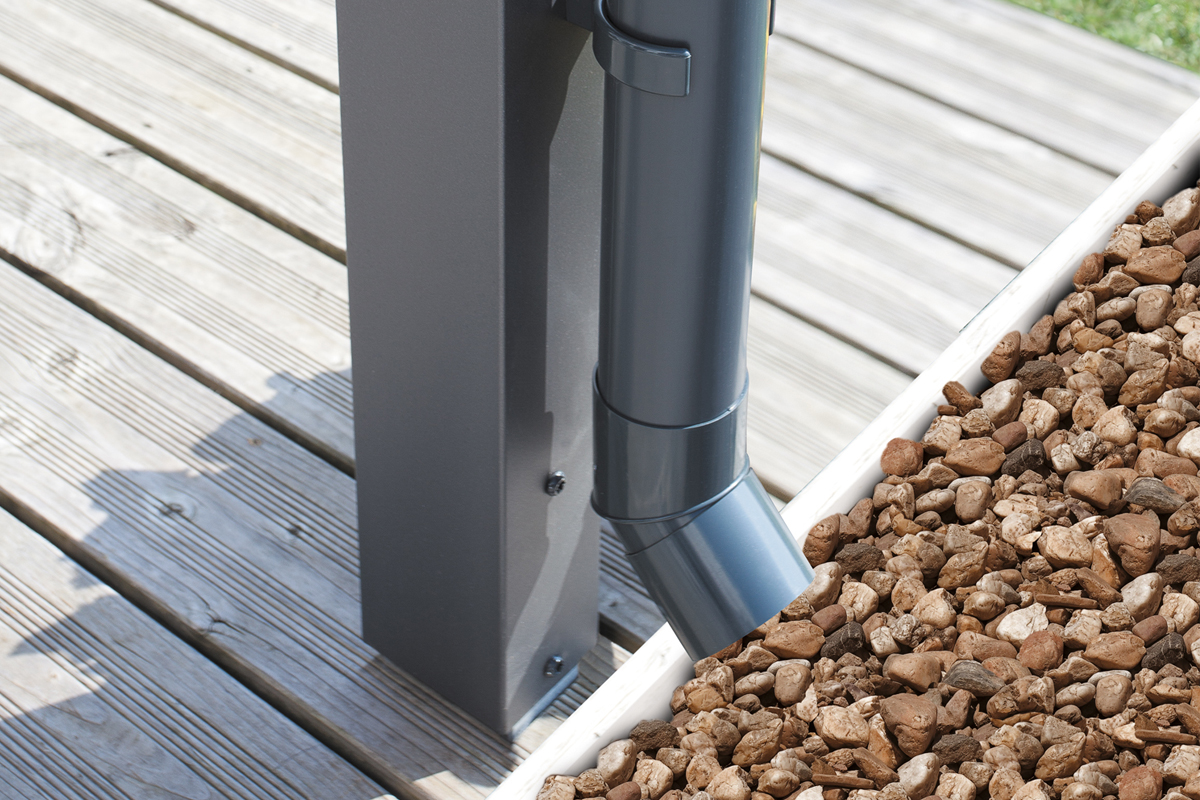

Drainage can be selected as in the post or on its exterior. Wall connection is already integrated into the wall profile.
Roofing

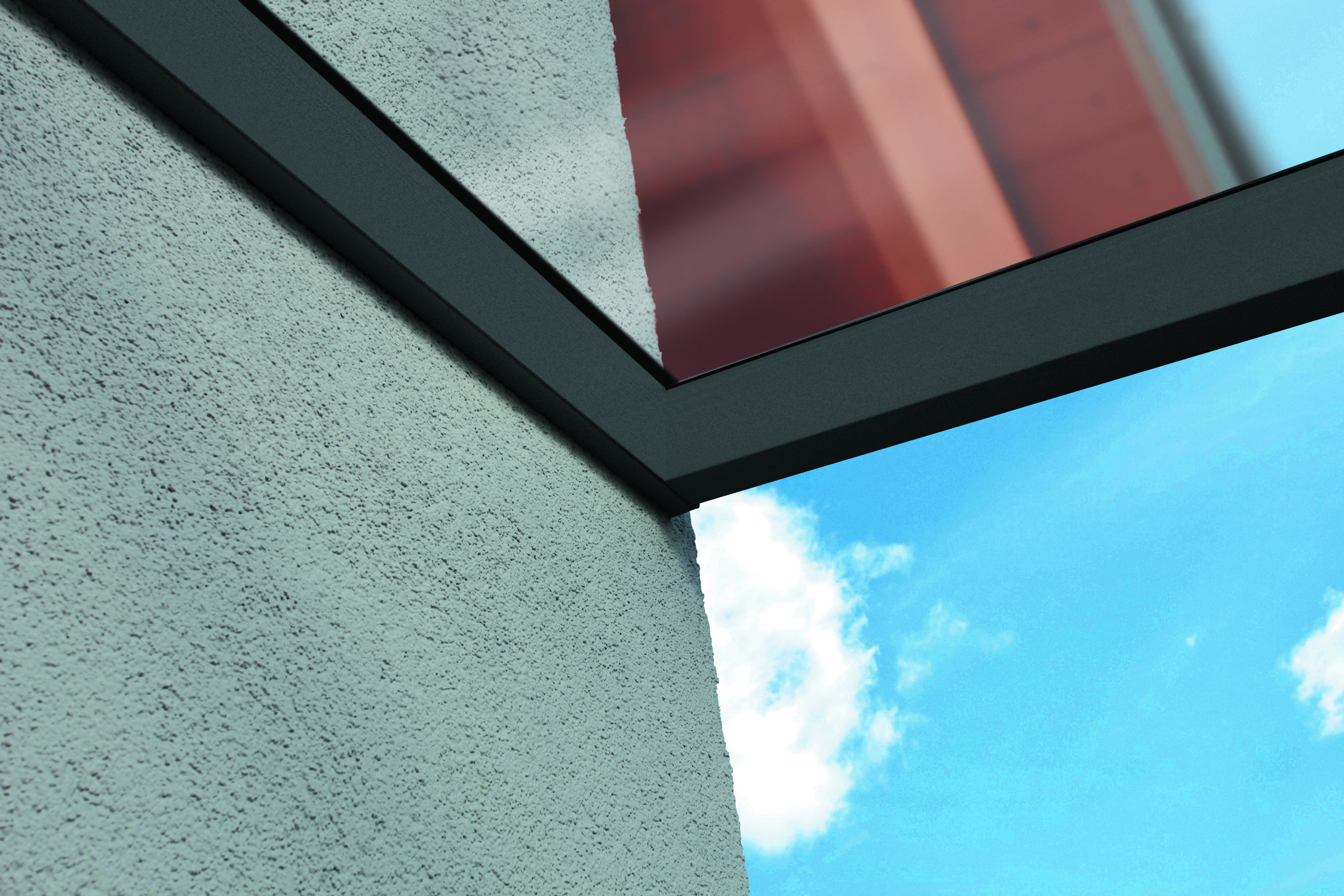

Glass roof with VSG 10 mm. Laminate of two glass surfaces which are bonded with a highly stable plastic foil. Provides optimum splinter protection and very high noise insulation. Condensate formation possible on the underside at certain outside temperatures. Very high form stability, including at high surface temperatures. The optimum solution for unhindered light incidence with minimum loss of light. The glass panels have a width of 105 cm and are split in the center. The glass panes are attached using premium aluminium profiles with EPDM lip-seals.
Delivery only in Germany. For logistical reasons, the glass is delivered separately.
Bracing

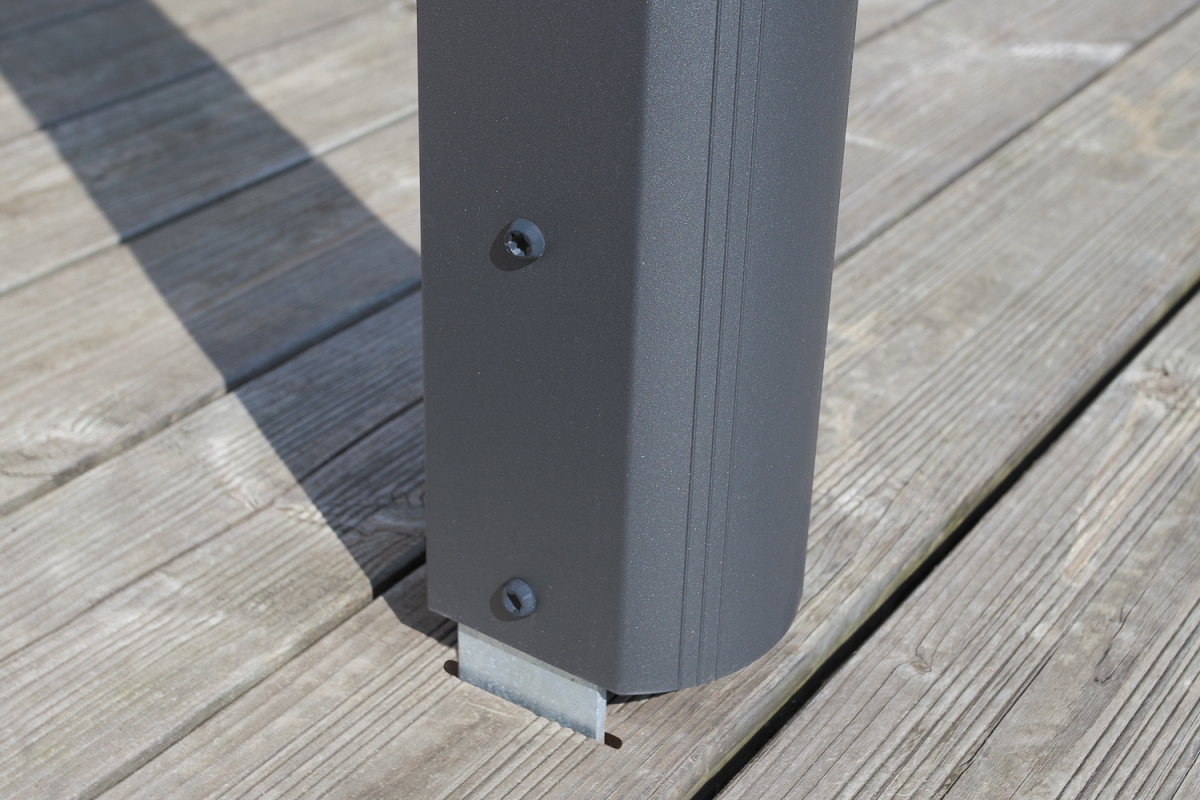

The building kit includes galvanized flat-steel post anchors. They are screwed into the support, embedded in concrete and ensure secure connection to the subsurface.
- Roofing of 10 mm-thick laminated safety glass
- Aluminium structure, powder coated in anthracite
- modern design with distinctive profile
- Gutter integrated into the purlin
- Including fishplates for embedding in concrete
