Terrace roof Modena 541 x 257 cm, Aluminium, white

€6,515.00*

Color
Size
Product number: 224609-11-70
Premium quality for your garden
*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

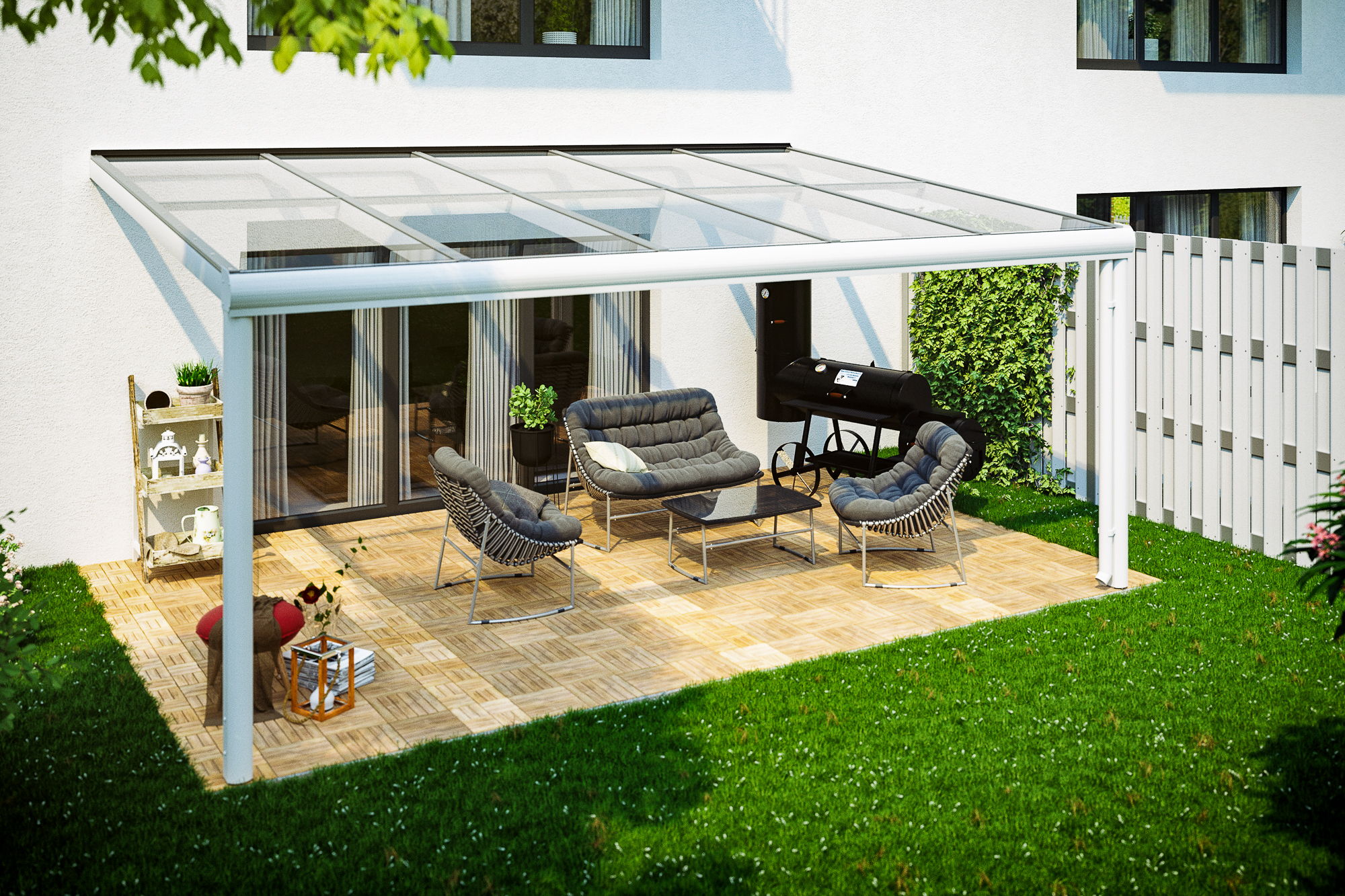

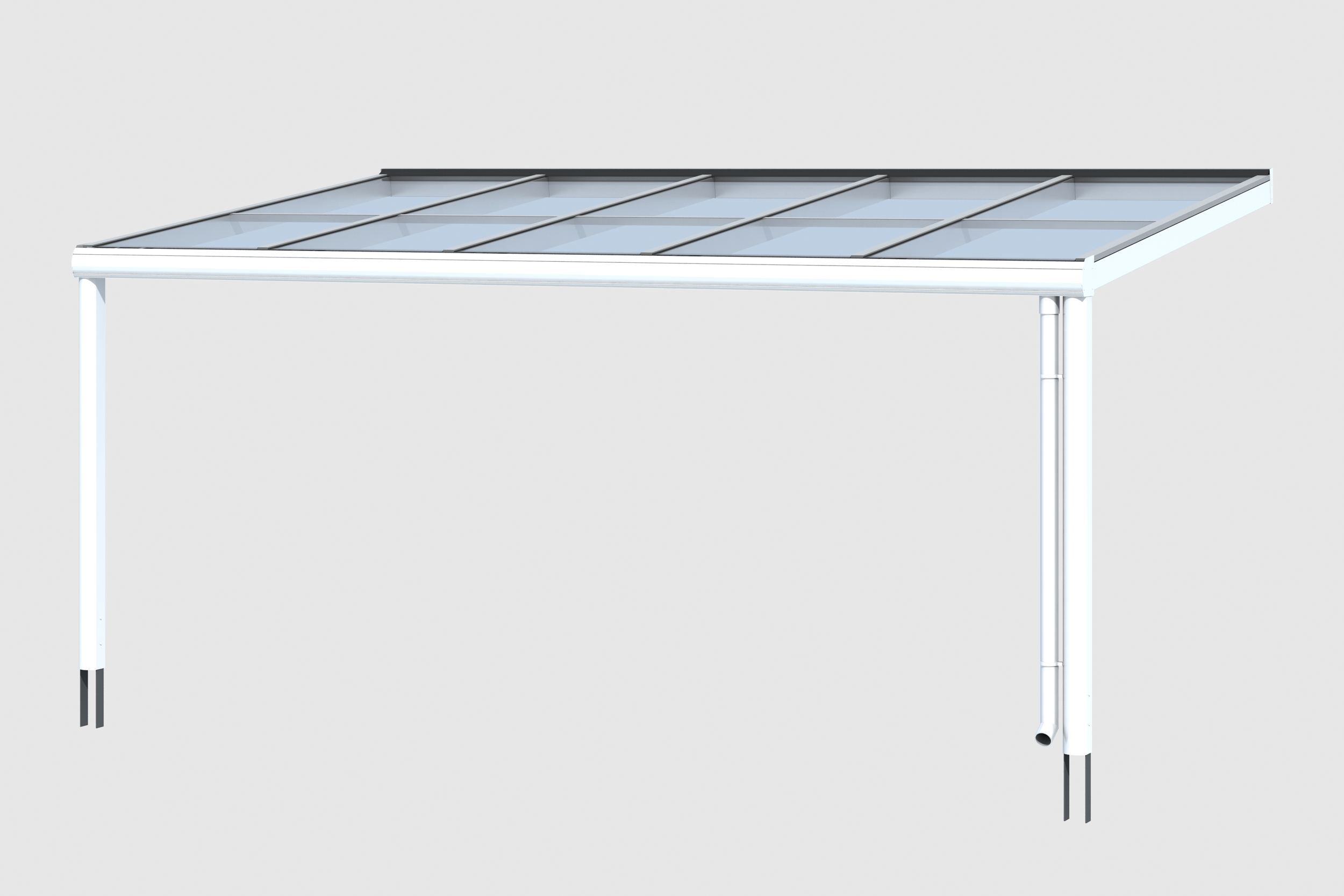

SKAN HOLZ Terrace roof Modena


  • Exterior dimensions 541 x 257 cm

  • high-quality aluminium structure, powder-coated in white (RAL 9016)

  • post 11 x 11 cm, front-rounded, including fishplates for embedding in concrete

  • modern design with distinctive profile

  • gutter integrated into the purlin

  • Downpipe either in post or on exterior of post

  • integrated wall connection profile

  • Roofing of 10 mm-thick laminated safety glass

  • Supplied without wall-attachment material




Construction

The premium, powder-coated aluminium building kit includes 11 x 11 cm-thick posts which are rounded at the front. The stable and sturdy structure sports a modern design with a distinctive profile. Drip moulding is integrated into the beam.

Drainage can be selected as in the post or on its exterior. Wall connection is already integrated into the wall profile.


Roofing

Glass roof with VSG 10 mm. Laminate of two glass surfaces which are bonded with a highly stable plastic foil. Provides optimum splinter protection and very high noise insulation. Condensate formation possible on the underside at certain outside temperatures. Very high form stability, including at high surface temperatures. The optimum solution for unhindered light incidence with minimum loss of light. The glass panels have a width of 105 cm and are split in the center.

The glass panes are attached using premium aluminium profiles with EPDM lip-seals.



Delivery only in Germany. For logistical reasons, the glass is delivered separately.

Bracing

The building kit includes galvanized flat-steel post anchors. They are screwed into the support, embedded in concrete and ensure secure connection to the subsurface.


  • Roofing of 10 mm-thick laminated safety glass

  • Aluminium structure, powder-coated in white

  • modern design with distinctive profile

  • Gutter integrated into the purlin

  • Including fishplates for embedding in concrete

Material: Aluminum
Color: White (RAL 9016)
Color treatment: Powder coated

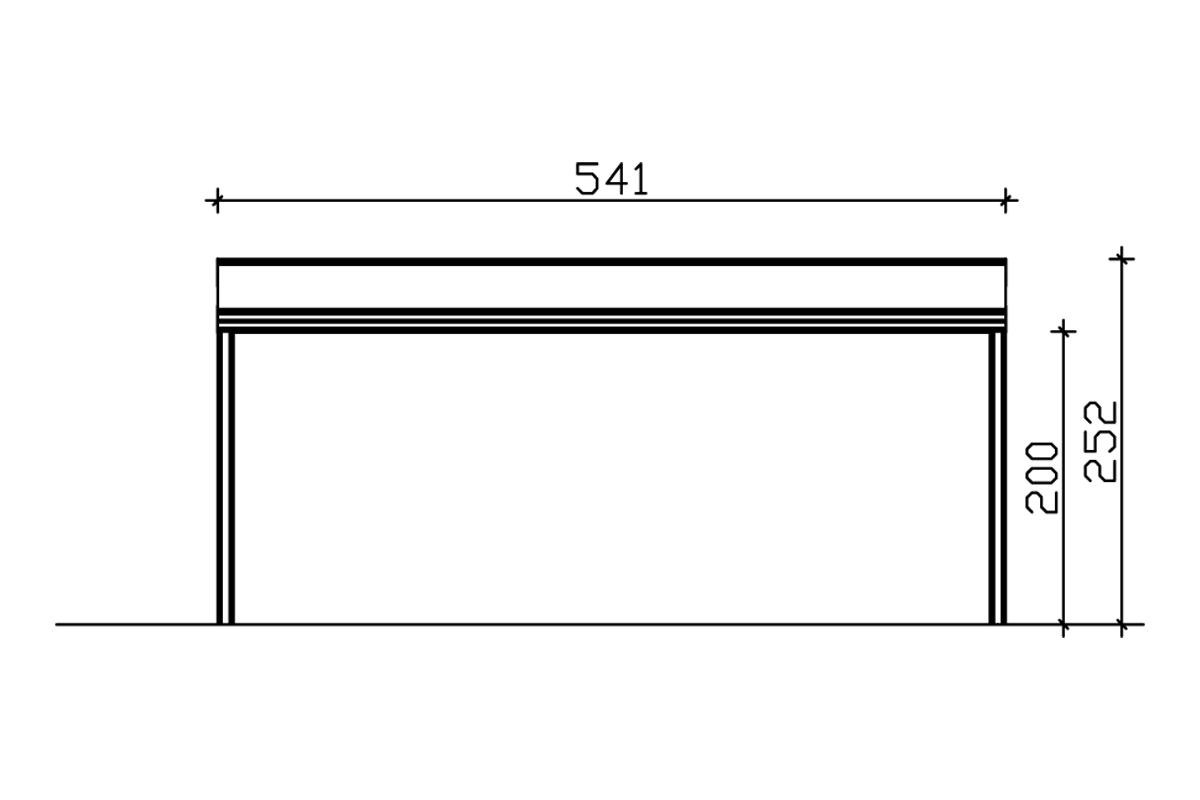

Size: 541 x 257 cm
Basic width: 541 cm
Basic length: 255 cm
Total width: 541 cm
Total length: 257 cm
Total height (front): 217 cm
Total height (behind): 252 cm
Roof shape: Pent roof
Material roof covering: Safety glass 10 mm
Color roofing: Transparent
Roof thickness: 10 mm
Roof surface: 13.9 m²
Roof slope: forward
Slope: 7 °
Roof overhang (front): 2 cm
Roof overhang (behind): 0 cm
roof overhang (left): 0 cm
roof overhang (right): 0 cm
Base surface: 13.9 m²
Building volume: 32.47 m³
Passage height (front): 200 cm
Passage height (behind): 234 cm
Thickness of posts: 11 x 11 cm
Post length (front): 202 cm

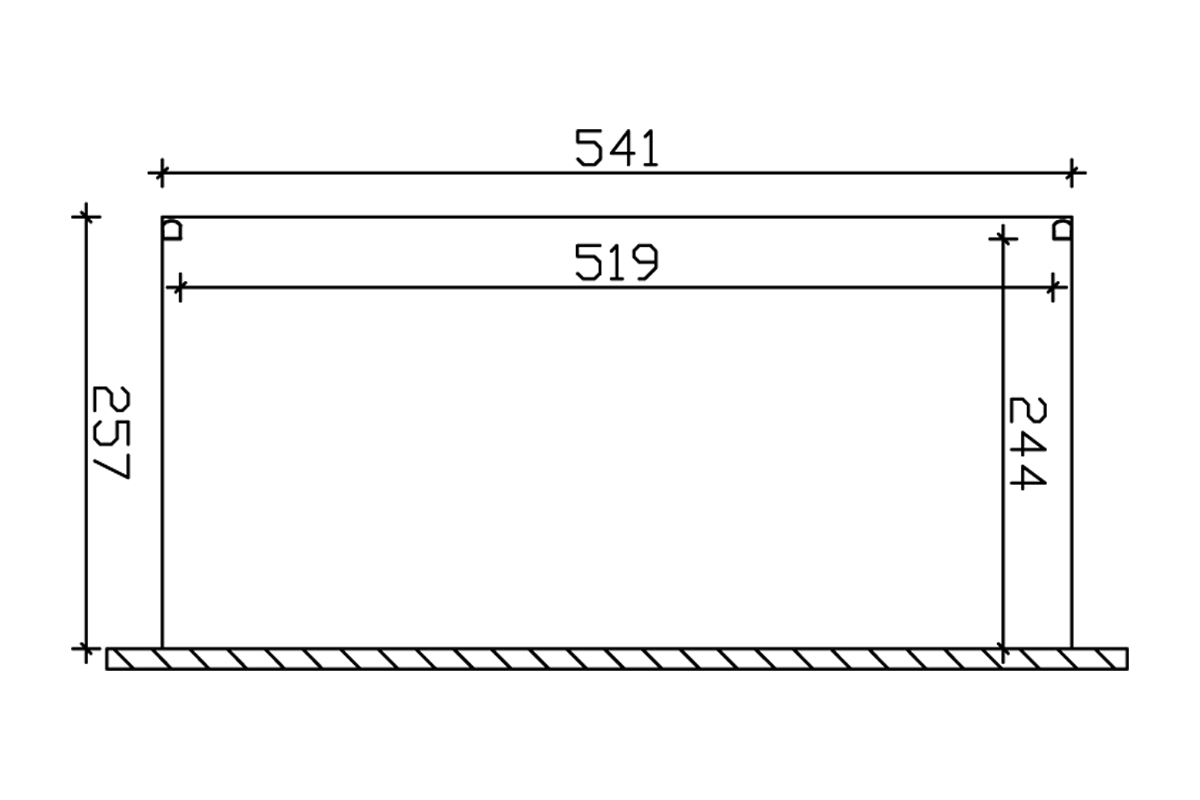

Post spacing (width): 519 cm
Post spacing (depth): 244 cm
Number of posts: 2 Stück
Anchoring: Fishplates for embedding in concrete
Snow load: 0.85 kN/m²
Wind pressure: 0.65 kN/m²
Type of installation: Wall mounting
Mounting material: Included
delivery time: 4 weeks
Number of packages: 2
package weight 1: 229 kg
packaging width 1: 550 cm
packaging height 1: 50 cm
packaging length 1: 120 cm
package weight 2: 328 kg
packaging width 2: 250 cm
packaging height 2: 120 cm
packaging length 2: 120 cm
Total weight: 557 kg
Included in delivery: Fishplates for embedding in concrete, integrated gutter, integrated wall connection, mounting material, assembly instructions
Not inclusiv: Dowels for wall mounting
Garantie: 5 years according to our warranty conditions
delivery Note: Road that must support a 38t truck (Germany, mainland)
