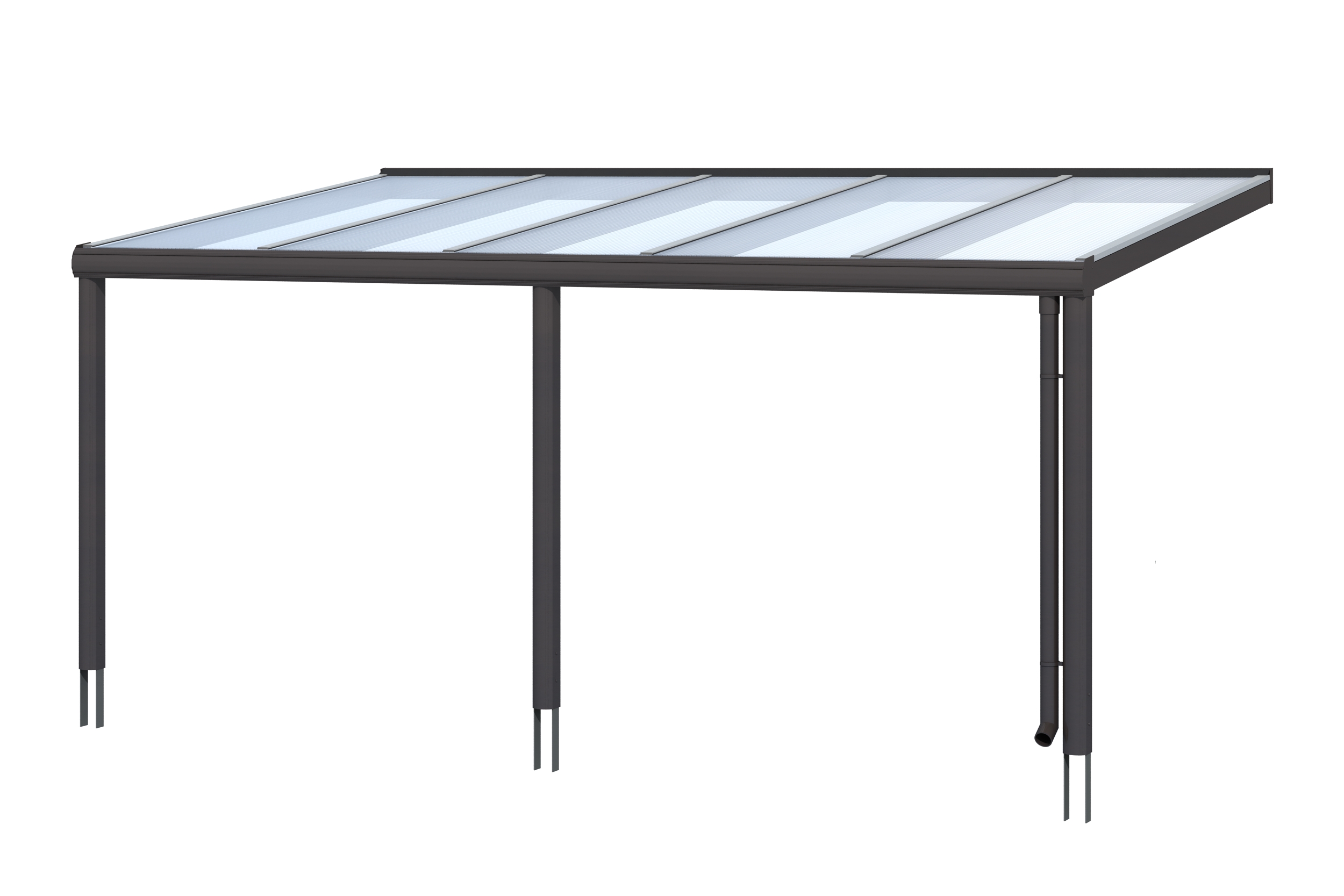

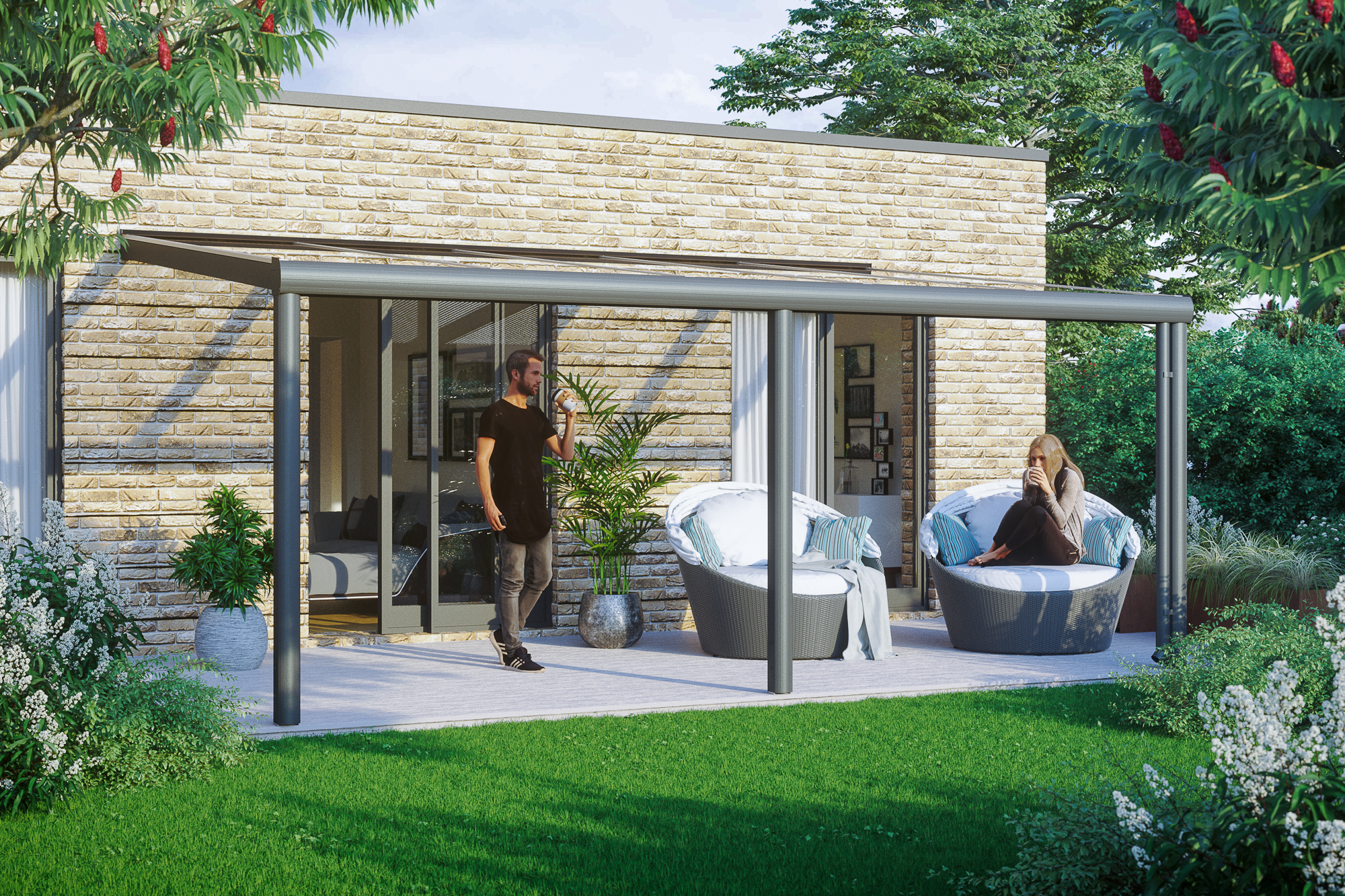

SKAN HOLZ Terrace roof Garda

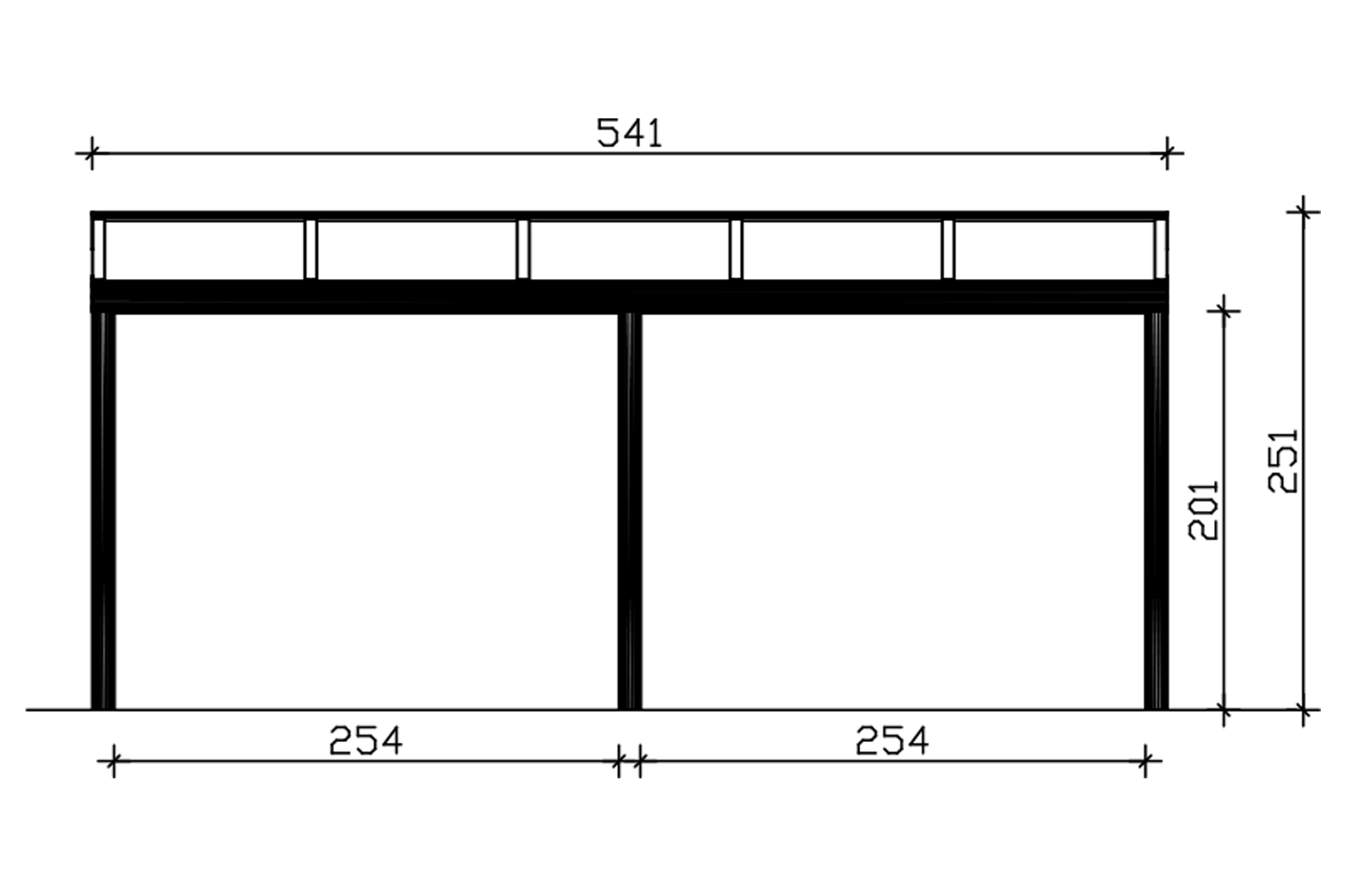

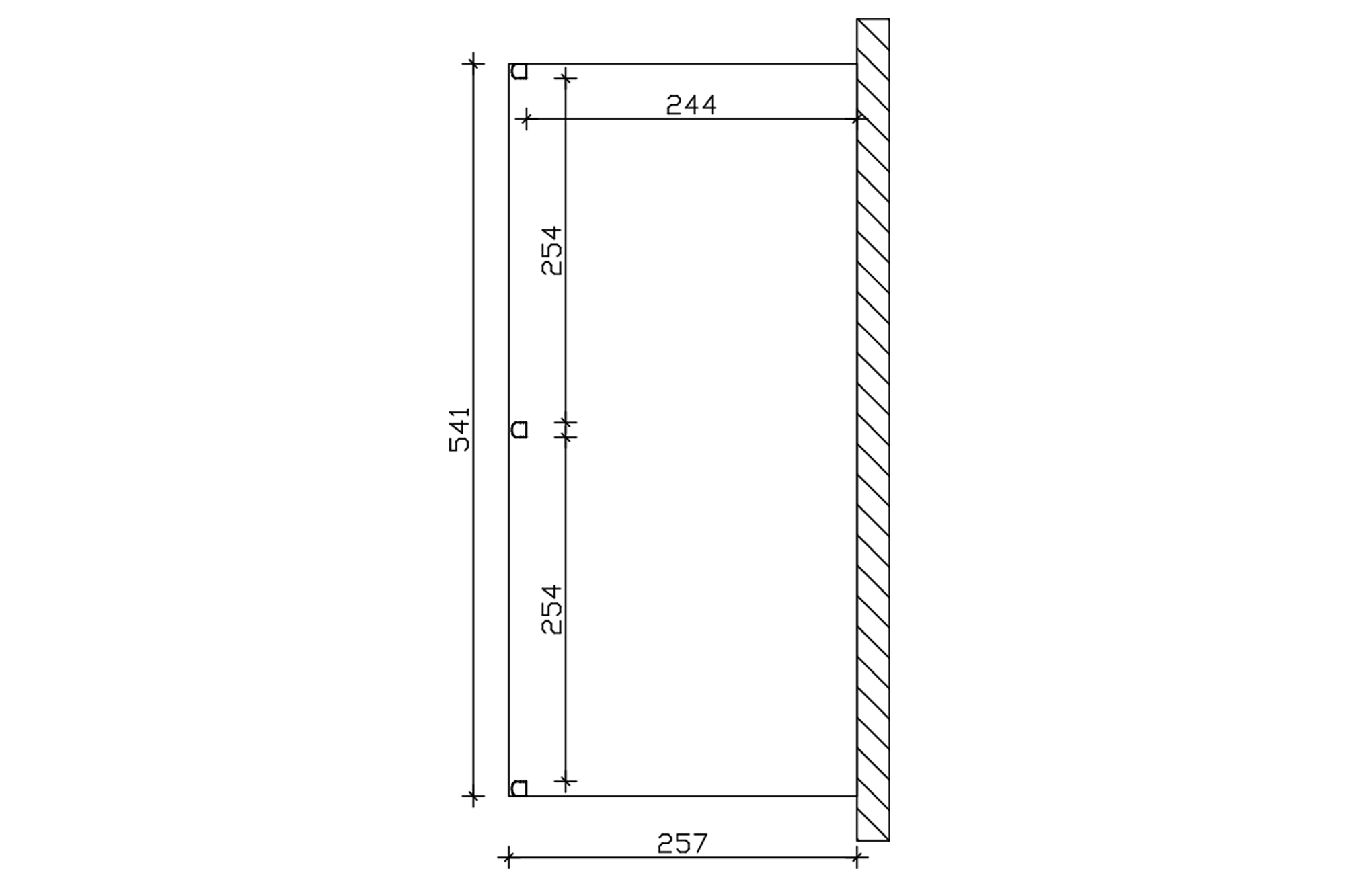

- Exterior dimensions 541 x 257 cm
- high-quality aluminium structure, powder coated in anthracite (DB703)
- post 11 x 11 cm, front-rounded, including fishplates for embedding in concrete
- modern design with distinctive profile
- gutter integrated into the purlin
- Downpipe either in post or on exterior of post
- integrated wall connection profile
- Roofing 16 mm Polycarbonate sheet in clear
- Supplied without wall-attachment material
Construction
The premium, powder-coated aluminium building kit includes 11 x 11 cm-thick posts which are rounded at the front. The stable and sturdy structure sports a modern design with a distinctive profile. Drip moulding is integrated into the beam.
Drainage can be selected as in the post or on its exterior. Wall connection is already integrated into the wall profile.
Roofing
Roofing consists of stable, 16 mm-thick polycarbonate twin-wall sheet. The top face is provided with a UV-reflecting layer. It is attached with a high-quality aluminium profile with EPDM lip-seals.
Bracing
The building kit includes galvanized flat-steel post anchors. They are screwed into the support, embedded in concrete and ensure secure connection to the subsurface.
- Roofing: Polycarbonate sheet in clear
- Aluminium structure, powder coated in anthracite
- modern design with distinctive profile
- Gutter integrated into the purlin
- Including fishplates for embedding in concrete
