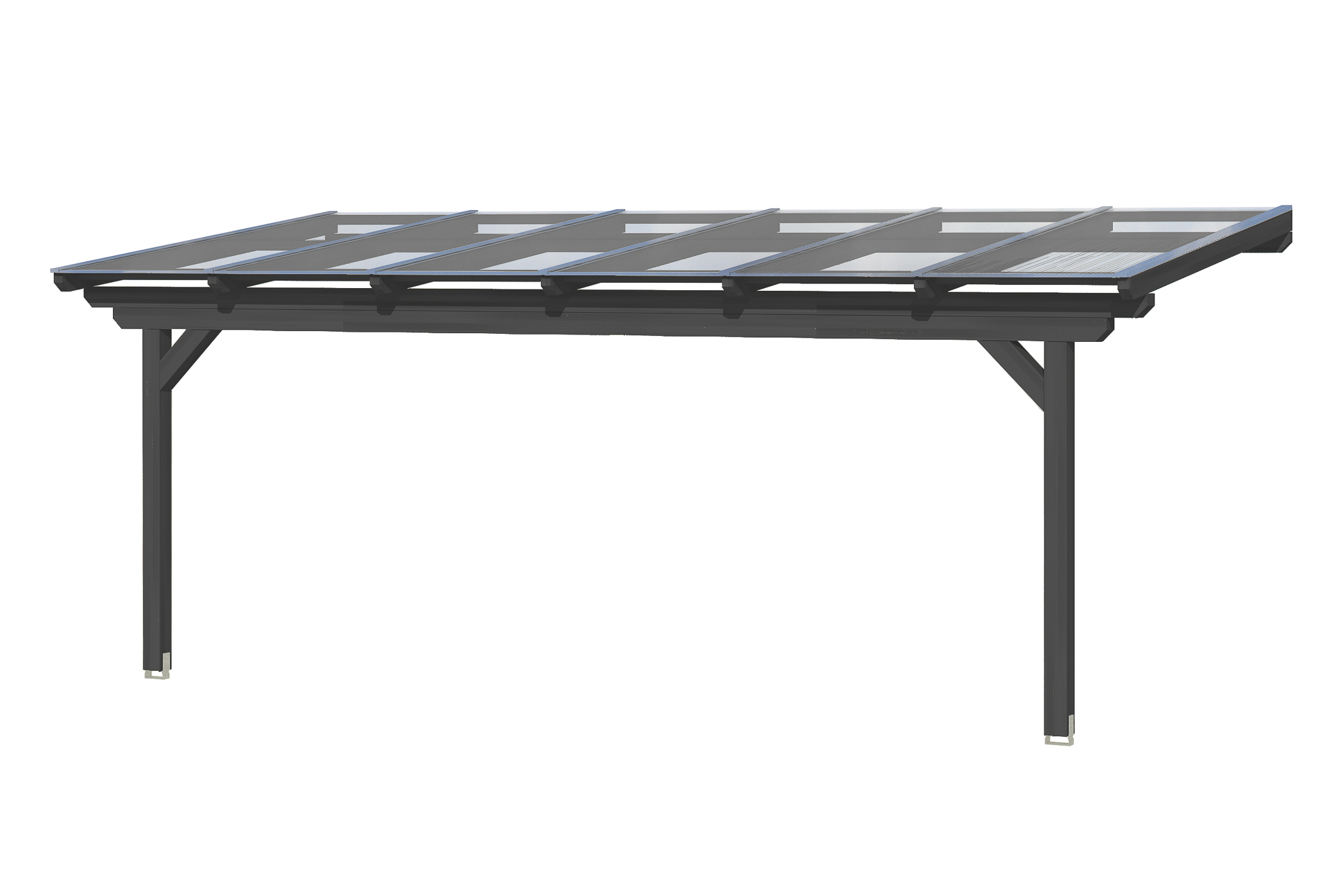

SKAN HOLZ Ancona terrace roof
The Ancona terrace roof offers an elegant and robust solution for providing a weatherproof, high-quality roof for your outdoor area. The structure made of solid glued laminated timber (glued laminated timber) from Nordic spruce combines high load-bearing capacity with dimensionally stable, low-crack components. The factory colour treatment preserves the natural appearance of the wood and protects against UV and moisture damage. The sturdy double-beam construction without centre posts and the clear polycarbonate multiwall sheets (16 mm) create a sheltered, light-flooded area that offers protection from the weather while preserving the natural look of your garden.
Key features at a glance:
- Dimensions - choose from many different sizes to suit your needs
- Glued laminated timber - multi-layered glued wood for high dimensional stability and low warping
- Posts 12 x 12 cm including galvanised screw-on brackets for secure attachment to a foundation provided by the customer
- Roofing: 16 mm polycarbonate multiwall sheets in clear with UV-reflective surface for optimum light transmission and weather protection
- Aluminium profiles with EPDM lip seals for permanent, watertight fastening of the double-skin sheets
Notes on surface treatment and care:
- The kit is pre-treated at the factory so that you can start assembly immediately after delivery.
- An enclosed repair quantity of glaze enables the professional post-treatment of drilling and cutting points.
- If you require additional finishing, we recommend light sanding and painting with high-quality glaze after assembly.
Technical and assembly-relevant information:
- Scope of delivery: complete glulam construction, posts with screw-on supports, polycarbonate multiwall sheets, aluminium profiles with seal
- Not included: Wall fastening material; this must be selected on a project-specific basis
- Anchoring: galvanised screw-on supports including dowels for fastening to the existing foundation
The Ancona terrace roof combines a natural look with high-quality technology: durable glued laminated timber, weather-resistant polycarbonate multiwall sheets and corrosion-protected anchoring elements ensure a durable, functional solution for your outdoor area. Ideal for homeowners who value quality, durability and an attractive design.
Construction
The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.
Colour treatment
The colour-treated components are coated with a layer of paint at the factory. The coating allows the natural wood grain to remain visible whilst ensuring a uniform surface finish. The components are coated on all sides twice at the factory, after which any excess material is brushed off.
Thanks to this factory pre-treatment, the components can be assembled immediately upon delivery. A primer coat prior to assembly is not required. Each kit also includes a quantity of wood stain or paint for touching up cut edges, screw holes or any damage caused during assembly. These areas should be treated in accordance with the installation instructions.
For a personalised finish, the visible wooden surfaces can be lightly sanded after assembly and treated with a suitable wood stain or paint. Components that have been colour-treated on all sides may show storage marks due to technical reasons.
Roof covering
The roof cladding consists of 16 mm thick polycarbonate multiwall sheets. The upper surface is coated with a UV-reflective layer. These are secured using aluminium profiles with EPDM lip seals.
Bracing
The building kit contains mounting brackets of galvanized flat steel including anchor bolts for attachment to the site-built foundation. They ensure secure connection to the subsurface.
- Solid structure of glued laminate (BSH spruce)
- Colour-treated in anthracite
- Roofing: Polycarbonate sheet in clear
- posts 12 x 12 cm
- Including mounting brackets
