Log cabin Lugano 1, 420 x 300 cm, untreated

€6,469.00*

Size
Roof construction
Product number: 610808
Premium quality for your garden
*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

SKAN HOLZ Log cabin Lugano 1


  • Size 420 x 300 cm

  • not colour-treated

  • high-quality Nordic spruce

  • 4-side planed 45 mmwall logs with tongue and double groove

  • Chalet milled corners and invisible wind bracing

  • floor 19 mmincluding impregnated ground supports

  • Door and window with insulation glass and rubber sealing, as well as fitted glazing bars

  • Door with moulded cylinder lock and 3 keys

  • Door clear opening door w x h 112 x 181,5 cm

  • Window with aluminium drip rail and tilt/turn mounting

  • Roof 19 mmtongue-and-groove roof boarding with aluminium end edge, including 1 layer roofing felt for initial roofing

  • Shingles optionally available




Construction

The construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.


Color treatment

The wooden parts of this building kit are not color treated. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular, all-round application of protective coatings is thus essential. First apply wood primer to protect against fungus and insects. Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage.

Ideally, assemble between application of the first and second coat of varnish/paint. The poling boards must have dried prior to assembly. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.


Walls

All 45 mm-thick wall logs have a double-groove and tongue milling. The logs are simply inserted into one another. The fitting accuracy of the logs during assembly is achieved with modern milling technology and asymmetric corner connection. This ensures easy assembly of the house.

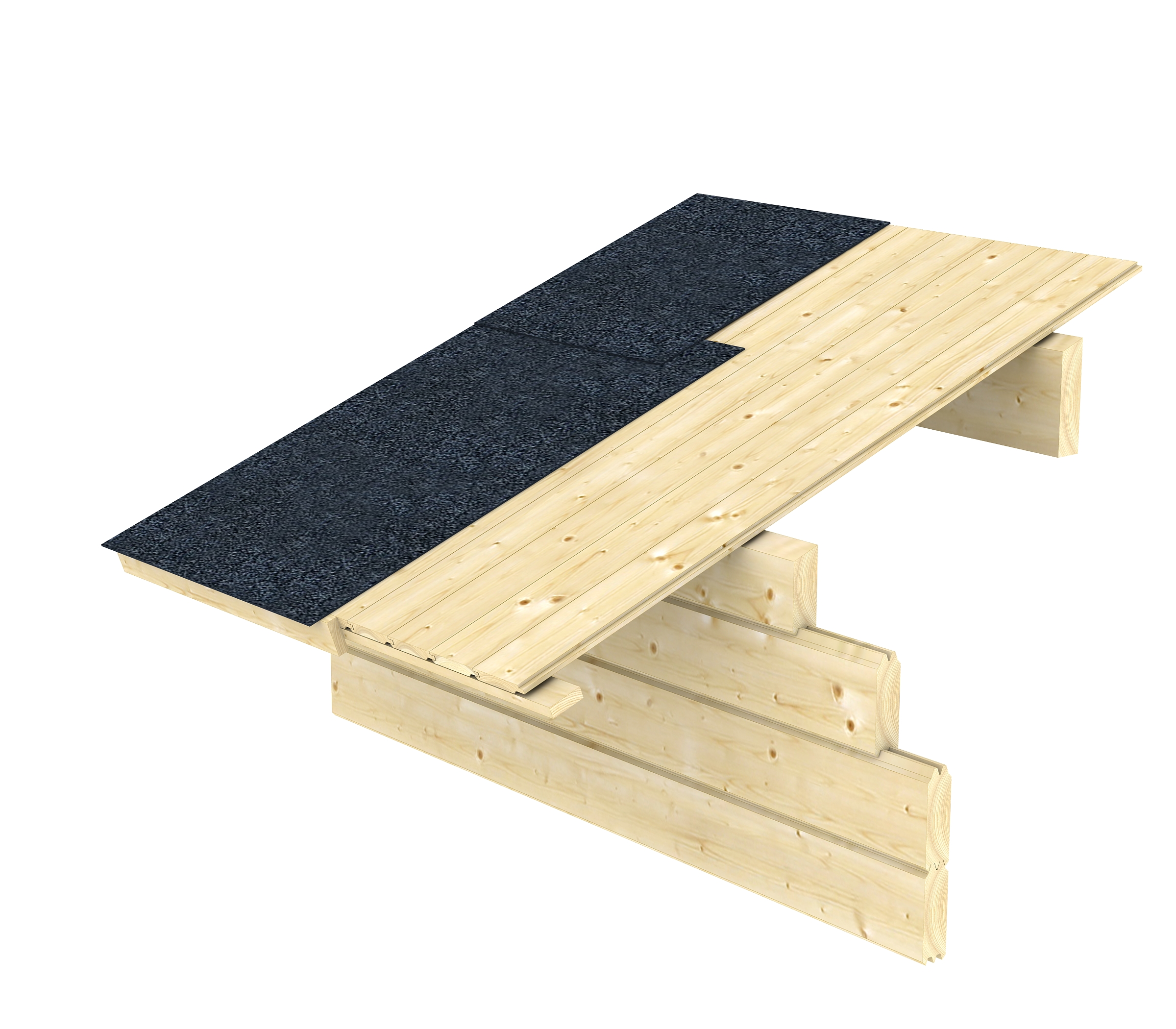

BASISHAUS, uninsulated roof:

The roof is supplied with 19 mm-thick roof boarding with tongue and groove for roofing with shingles. (roof shingles are optionally available). A layer of roofing felt is included.


Flooring

The floor consists of untreated 19 mm floorboards with tongue and groove, including impregnated ground supports.


  • high-quality Nordic spruce

  • 45 mm wall logs

  • floor 19 mm

  • « plus » corner connection

  • Roof 19 mm profile boarding

Material: Nordic spruce
Color: Natural
Color treatment: Untreated

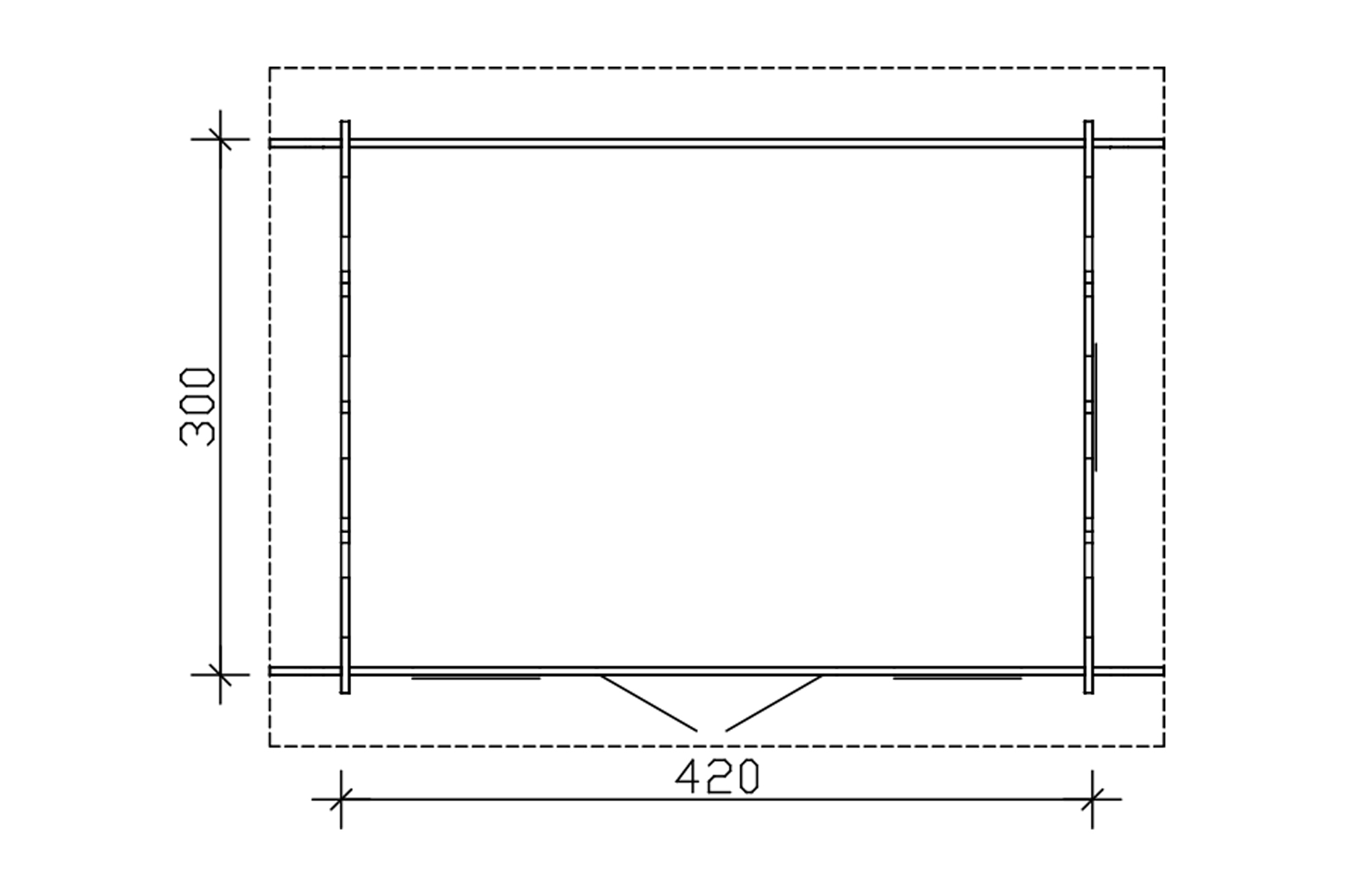

Size: 420 x 300 cm
Basic width: 420 cm
Basic length: 300 cm
Total width: 500 cm
Total length: 380 cm
Inside width: 411 cm
Inside depth: 291 cm

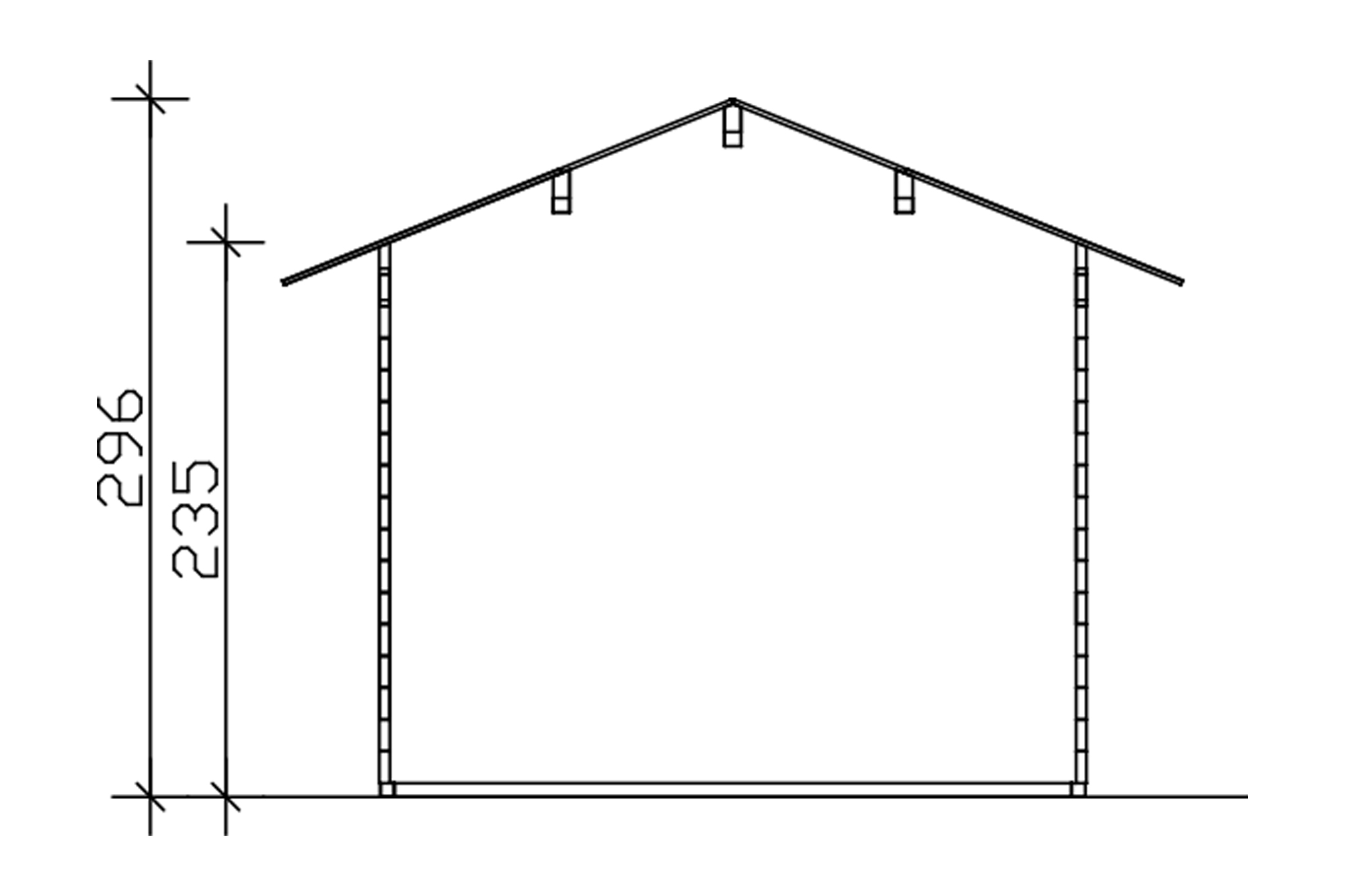

Roof ridge height: 296 cm
Height sidewall: 235 cm
Wall type: Logs
Wall thickness: 45 mm
Corner construction: plus, asymmetrical corner construction
Wind bracing: Threaded rod + tension spring
Wall surface outside: 39.67 m²
Number of rooms: 1
Roof shape: Saddle roof
Roof construction: 19 mm roof boards
Material roof covering: 1 layer of roofing felt
Color roofing: Black
Roof thickness: 19 mm
Roof surface: 20.8 m²
Roof edging: Wooden fascia with alu edges
Roof slope: to the side
Slope: 23 °
Roof overhang (front): 40 cm
Roof overhang (behind): 40 cm
roof overhang (left): 40 cm
roof overhang (right): 40 cm
Shingles required á 2m²: 12 package(s)
Floor: Floorboards, untreated
Floor thickness: 19 mm
Ground supports: Squared timber, impregnated
Dimension ground supports: 60 x 60 mm
Base surface: 12.6 m²
Building volume: 33.45 m³
Snow load: 1.25 kN/m²
Wind pressure: 0.95 kN/m²
Mounting material: Included
delivery time: 6 weeks
Number of door 1: 1
Type of door 1: Double door, full glased
Opening dimensions door 1: 112 x 181,5 cm
Glazing door 1: Insulating glass
Door lock 1: Moulded cylinder lock with 3 keys
Number of windows 1: 3
Window type 1: Single window
Opening dimensions window 1: 52 x 118 cm
Function window 1: Tilt-and-turn function
Glazing window 1: Insulating glass
Number of packages: 1
package weight 1: 1120 kg
packaging width 1: 505 cm
packaging height 1: 75 cm
packaging length 1: 120 cm
Total weight: 1120 kg
Not inclusiv: Floor, ground support, cement, anchoring basic storage with underground (foundation)
Garantie: 5 years according to our warranty conditions
delivery Note: Road that must support a 38t truck (Germany, mainland)
