€4,439.00*

% €5,225.00* (15.04% saved)

Prices incl. VAT plus shipping costs

Size
Product number: 560134
Premium quality for your garden
*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

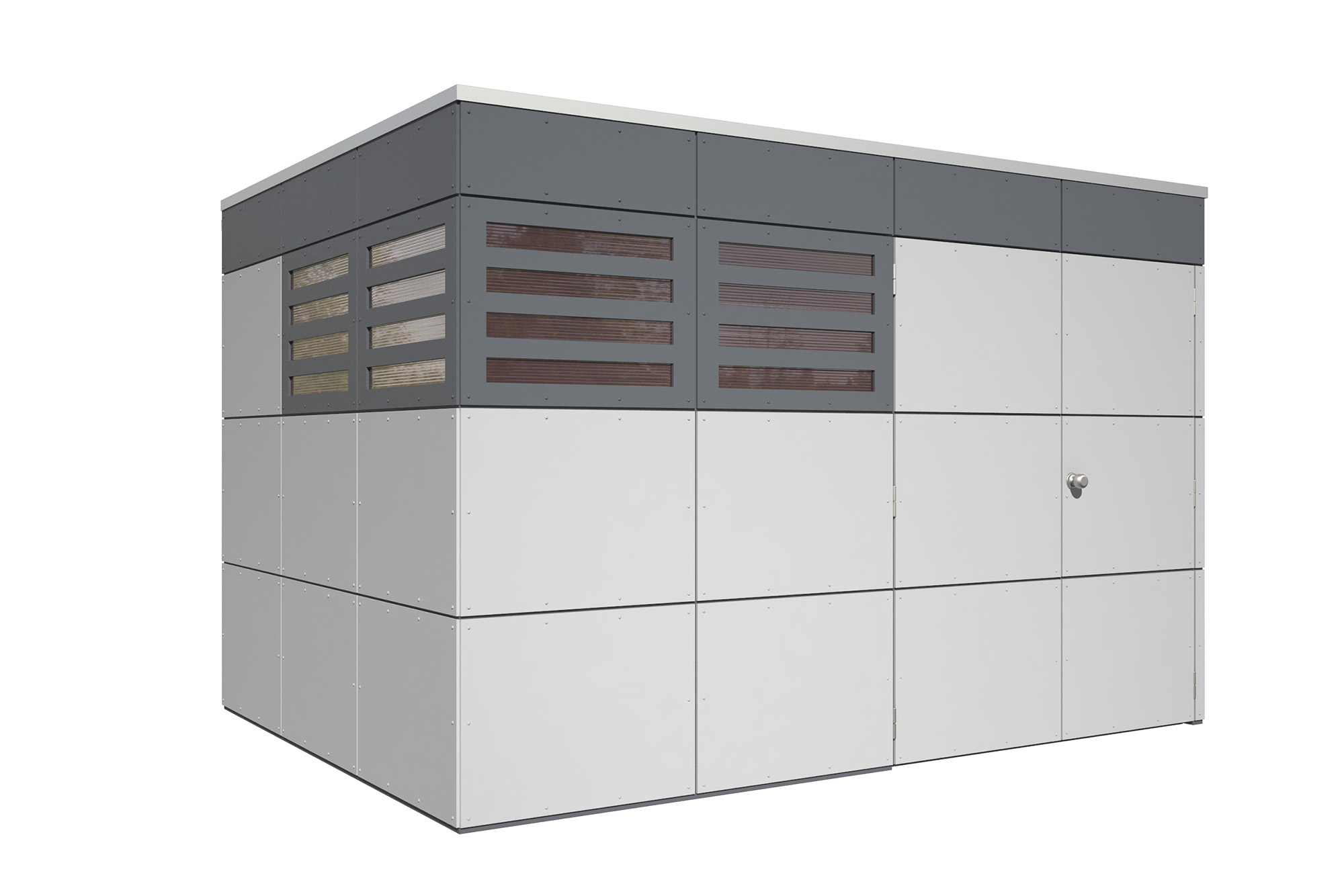

SKAN HOLZ CrossCube Garden shed Sydney 4


  • Size 337 x 253 cm

  • Structure of weather-resistant, cement-bound cladding panels

  • Panels cut to size, pre-drilled and colour-finished

  • Primary colour telegrey, window and upper crown in slate-grey

  • Mounted on slate-grey wood-frame structure

  • Doorknob with lock cylinder and 2 keys

  • Door clear opening door w x h 159 x 184 cm

  • Window elements with bronze-colour Polycarbonate sheets

  • Roof 19 mmtongue-and-groove roof boarding with aluminium roof sheeting, including self-adhesive KSK-M roof edging

  • Floor and gutter optional




Walls

The weather-resistant, cement-bound cladding panels are fitted, pre-drilled, and exterior color-finished. Assembly takes place with color stainless-steel screws on a slate-grey wood-frame construction.


Roofing

The roof boarding of 19mm-thick wood moulding is covered with an aluminium-covered, pressure-sensitive roofing membrane with aluminium roof edging. The slope runs toward the rear.


  • Structure of weather-resistant, cement-bound cladding panels

  • Panels cut to size and pre-drilled

  • Primary colour telegrey

  • Mounted on wood-frame structure

  • Window elements with bronze-colour Polycarbonate sheets

Material: Facade panels
Color: Tele grey (RAL 7047)
Color treatment: The facade panels are painted on the outside, the frame construction on all sides slate gray. The roof boards, the rafters and the cut edges are delivered untreated due to production reasons.
Size: 337 x 253 cm
Basic width: 337 cm
Basic length: 253 cm
Total width: 337 cm
Total length: 253 cm
Roof ridge height: 223 cm
Height sidewall: 223 cm
Total height (front): 223 cm
Total height (behind): 223 cm
Wall type: Wood frame construction
Wall thickness: 10 mm
Corner construction: Wood frame construction
Number of rooms: 1
Roof shape: Flat roof
Roof construction: 19 mm roof boards
Material roof covering: Onduline KSK-M membranes
Color roofing: Silver grey
Roof thickness: 19 mm
Roof surface: 8.53 m²
Roof slope: backwards
Slope: 2 °
Roof overhang (front): 0 cm
Roof overhang (behind): 4 cm
roof overhang (left): 0 cm
roof overhang (right): 0 cm
Floor: Optionally available
Base surface: 8.53 m²
Building volume: 19.02 m³
Snow load: 0.85 kN/m²
Wind pressure: 0.65 kN/m²
Mounting material: Included
delivery time: 4 weeks
Number of door 1: 1
Type of door 1: Double door
Opening dimensions door 1: 159 x 184 cm
Door lock 1: Doorknob with lock cylinder and 2 keys
Number of windows 1: 4
Window type 1: Window element
Function window 1: Fixed
Glazing window 1: Polycarbonate sheets 10 mm, bronze
Number of packages: 1
package weight 1: 570 kg
packaging width 1: 350 cm
packaging height 1: 50 cm
packaging length 1: 120 cm
Total weight: 570 kg
Not inclusiv: Floor, base bearing, concrete, anchoring base bearing with substrate (foundation)
Garantie: 5 years according to our warranty conditions
delivery Note: Road that must support a 38t truck (Germany, mainland)

Accessories

Flooring 19mm for CrossCube 337 x 253 cm, untreated
Flooring 19mm for CrossCube 337 x 253 cm, untreated
SKAN HOLZ floors for summer houses in the CrossCube seriesProduct featuresWidth: 337 cmDepth: 253 cmground supports: 28 x 70 mm, impregnatedfloorboards: 19 x 121 mmMaterial: nordic sprucenot colour-treatedincluding mounting materialFlooring 19mm for CrossCube337 x 253 cmfloorboards: 19 x 121 mmground supports: 28 x 70 mm, impregnated

€545.00*
Details
Guttering set 335 cm, anthrazit, steel
Guttering set 335 cm, anthrazit, steel
Weather-resistant metal gutter set.Length: 335 cmColour: anthracite coateddiameter gutter 100 mmdiameter downpipe 75 mmconsisting of :gutter(s)downpipeconnection elementsgutter end piecespipe clampsgutter bracketsdownpipe bendscrews for gutter bracketssilicone cartridge for sealingEasy insertion and clamping of parts, one-time gluing of gutter end pieces, no soldering nor welding.Metal gutter setAnthraciteDiameter gutter 100 mmDiameter downpipe 75 mm

€195.00*
Details
Tug-on roof for CrossCube, Size 3+4 168 x 253 cm, slate-grey
Tug-on roof for CrossCube, Size 3+4 168 x 253 cm, slate-grey
Lateral canopy 168 x 253 cm for SKAN HOLZ CrossCube houses Sydney and Brisbane 3 + 4.The facing of the canopy consists of 10 mm-thick, painted cladding panels (exterior colour-finished) with slate-grey wood-frame structure.Boarding of 19 mm-thick wood moulding is covered with aluminium-coated, self-adhesive roof sheeting. The pitch runs toward the back.wall colour: Slate grey (RAL 7015)Building kit complete with mounting material and assembly instructions.Gutter extension optionally available.Tug-on roof for CrossCube, Size 3+4168 x 253 cmWall colour: Slate grey (RAL 7015)Including self-adhesive KSK-M foil

€1,265.00*
Details
Guttering set 167 cm, anthrazit, steel
Guttering set 167 cm, anthrazit, steel
Weather-resistant metal gutter extension in anthracite. Diameter gutter 100 mm. Set incl. gutter, connection elements and gutter brackets. Easy insertion and clamping of parts, one-time gluing of gutter connectors, no soldering nor welding.Weather-resistant metal gutter extensionAnthraciteDiameter gutter 100 mm

€99.00*
Details
