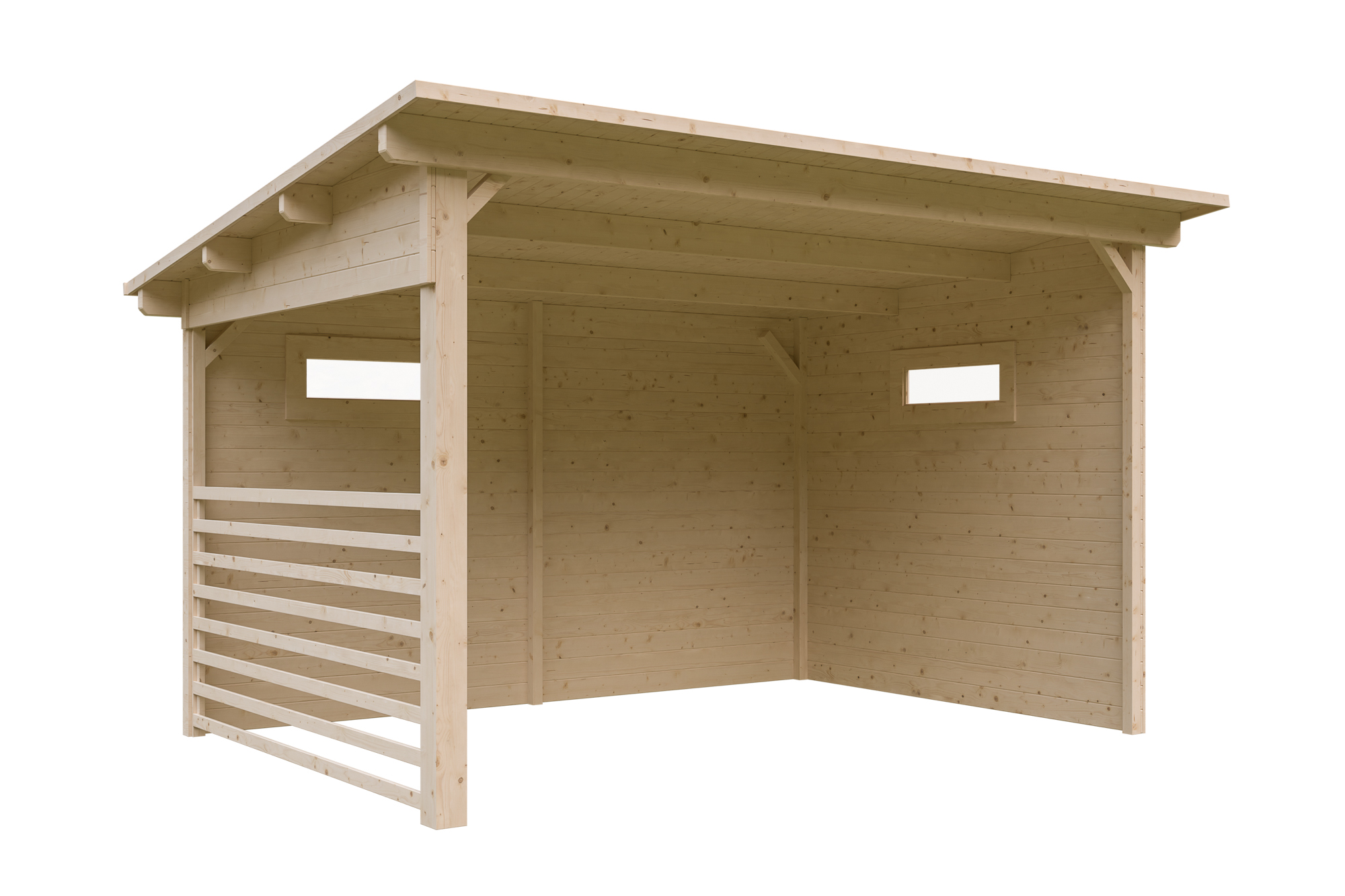

Garden kitchen Vimmerby, 370 x 250 cm, untreated

€1,999.00*

Color
Size
Product number: 760558
Premium quality for your garden
*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

SKAN HOLZ Garden kitchen Vimmerby


  • Size 370 x 250 cm

  • not colour-treated

  • high-quality Nordic spruce

  • 4-side planed 19 mmwall logs with tongue and groove

  • bolted corner connection

  • Roof 16 mm tongue-and-groove profile boarding

  • Due to low roof pitch, roofing with shingles not possible (KSK-M roofing membrane optionally available)




Construction

The construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.


Color treatment

The wooden parts of this building kit are not color treated. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular, all-round application of protective coatings is thus essential. First apply wood primer to protect against fungus and insects. Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage.

Ideally, assemble between application of the first and second coat of varnish/paint. The poling boards must have dried prior to assembly. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.


  • high-quality Nordic spruce

  • bolted corner connection

  • 19 mm wall logs

  • Roof 16 mm profile boarding

  • without floor

Material: Nordic spruce
Color: Natural
Color treatment: Untreated

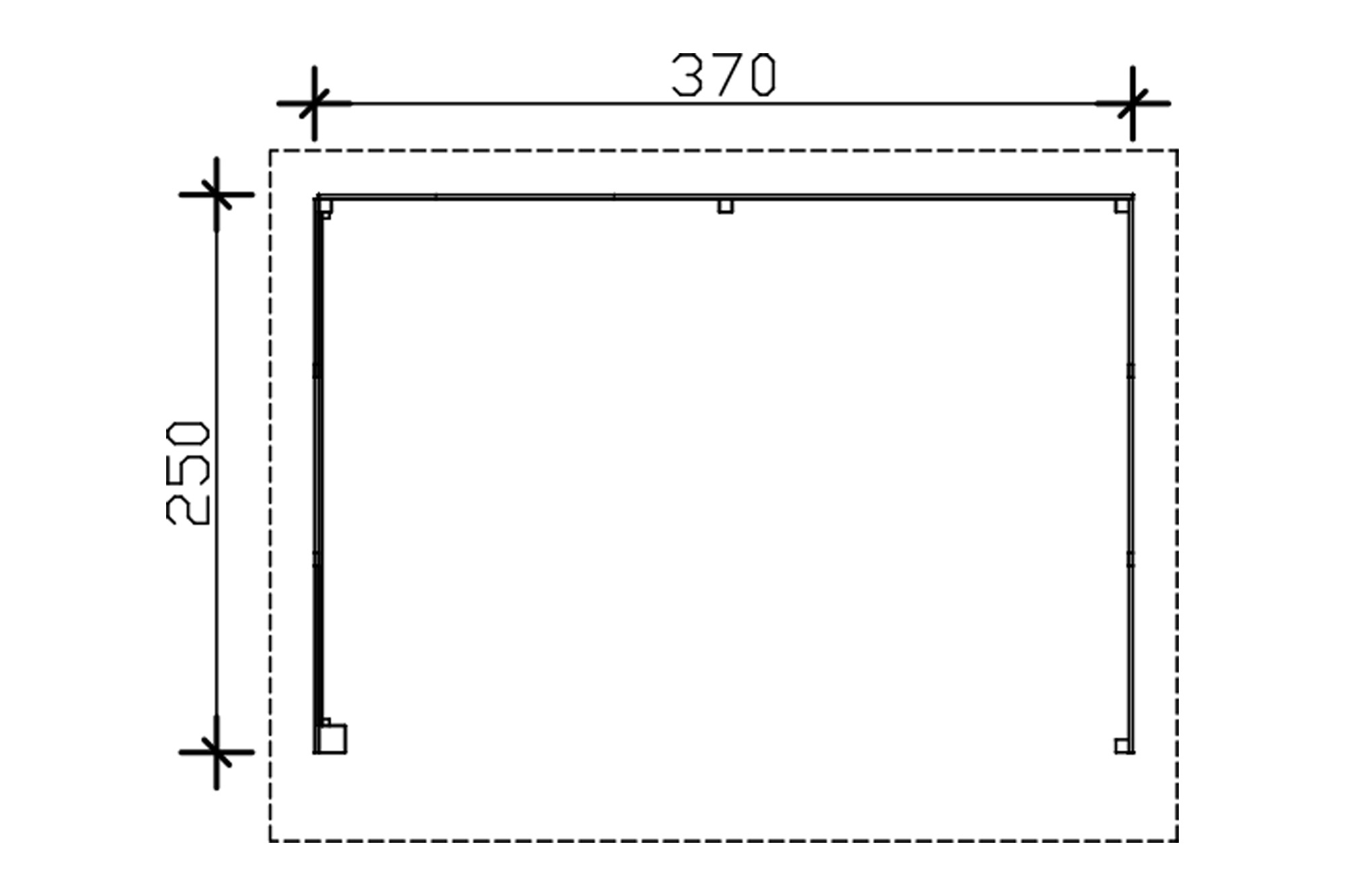

Size: 370 x 250 cm
Basic width: 370 cm
Basic length: 250 cm
Total width: 410 cm
Total length: 310 cm

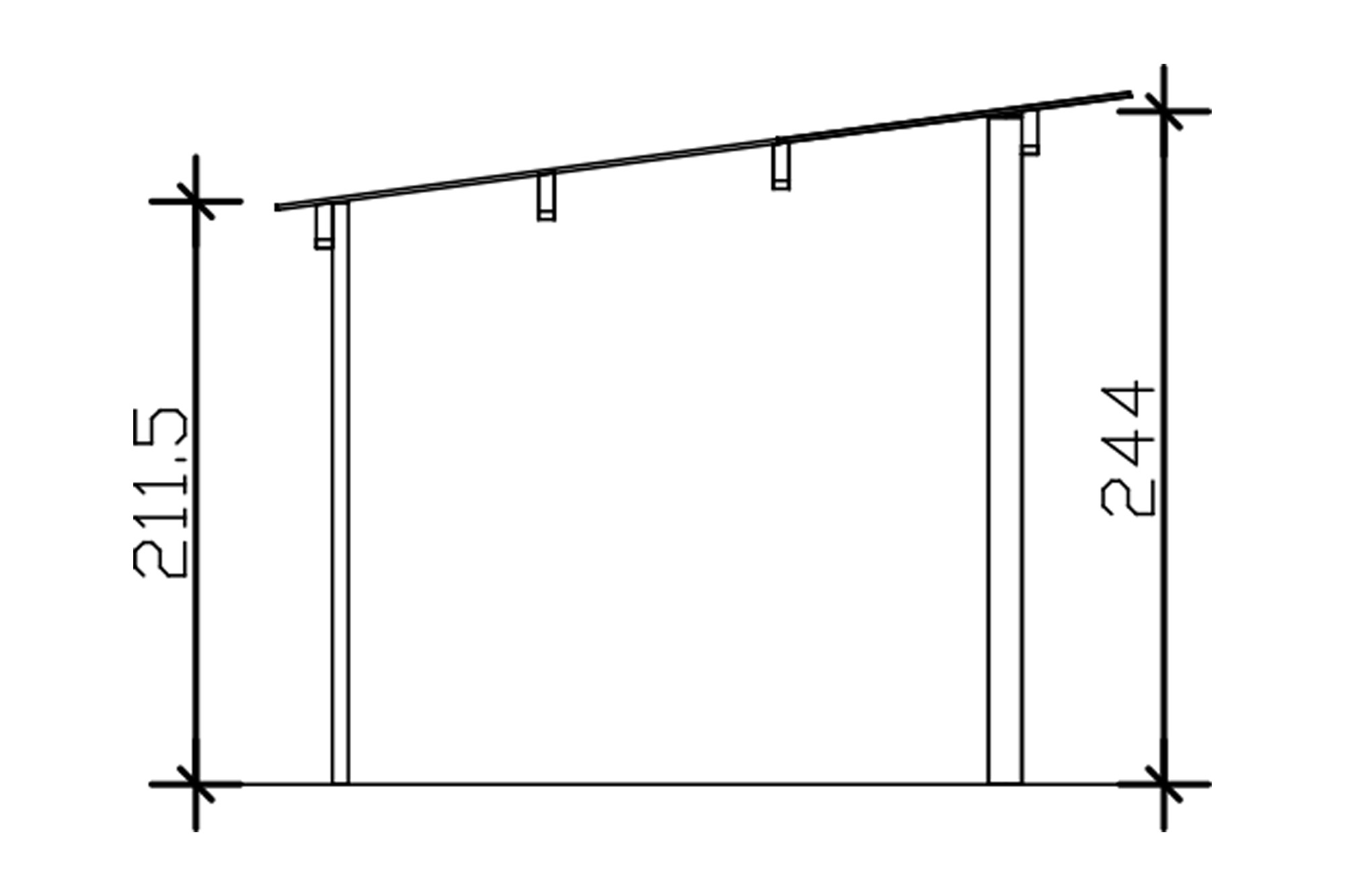

Roof ridge height: 244 cm
Height sidewall: 211.5 cm
Total height (front): 244 cm
Total height (behind): 211.5 cm
Wall type: Logs
Wall thickness: 19 mm
Corner construction: Trend, obtuse corner design
Wind bracing: Corner post with screw connection
Wall surface outside: 17.4 m²
Number of rooms: 1
Roof shape: Pent roof
Roof construction: 16 mm roof boards
Material roof covering: Without
Roof thickness: 16 mm
Roof surface: 12.9 m²
Roof edging: Wooden fascia
Roof slope: backwards
Slope: 8 °
Roof overhang (front): 40 cm
Roof overhang (behind): 20 cm
roof overhang (left): 20 cm
roof overhang (right): 20 cm
Roofing sheet requirement á 5m²: 4 roll(s)
Floor: No
Base surface: 9.25 m²
Building volume: 21.07 m³
Snow load: 0.85 kN/m²
Wind pressure: 0.5 kN/m²
Mounting material: Included
delivery time: 4 weeks
Number of windows 1: 2
Window type 1: Window element
Opening dimensions window 1: 70,5 x 18,5 cm
Function window 1: Fixed
Glazing window 1: Single glass
Number of packages: 1
package weight 1: 360 kg
packaging width 1: 420 cm
packaging height 1: 30 cm
packaging length 1: 120 cm
Total weight: 360 kg
Not inclusiv: Insulation, cement, anchoring basic storage with underground (foundation)
Garantie: 5 years according to our warranty conditions
delivery Note: Road that must support a 38t truck (Germany, mainland)

Accessories

Onduline KSK-M membranes 5 m², for roofing 5m²
Onduline KSK-M is self-adhesive roof sheeting with aluminium top layer and particularly high adhesive strength. Processing is simple, safe and quick. The aluminium surface features premium paint in silver-grey and provides excellent protection against UV radiation and other environmental influences. Please refer to the product for which the roof-edging is needed to calculate the number of rolls.Onduline KSK-M membranes5 m²Silver grey

€99.00*
