Friesland carport 546 x 708 cm, with EPDM roof, green impregnated

€5,649.00*

Prices incl. VAT plus shipping costs

Color

Green

Walnut

Slate-grey

Anthracite

Size

546 x 555 cm

546 x 708 cm

546 x 860 cm

Material roof covering

Roof boards with EPDM rubber roofing

Galvanised and coated trapezoidal sheet steel

Product number: 350216-99-35

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

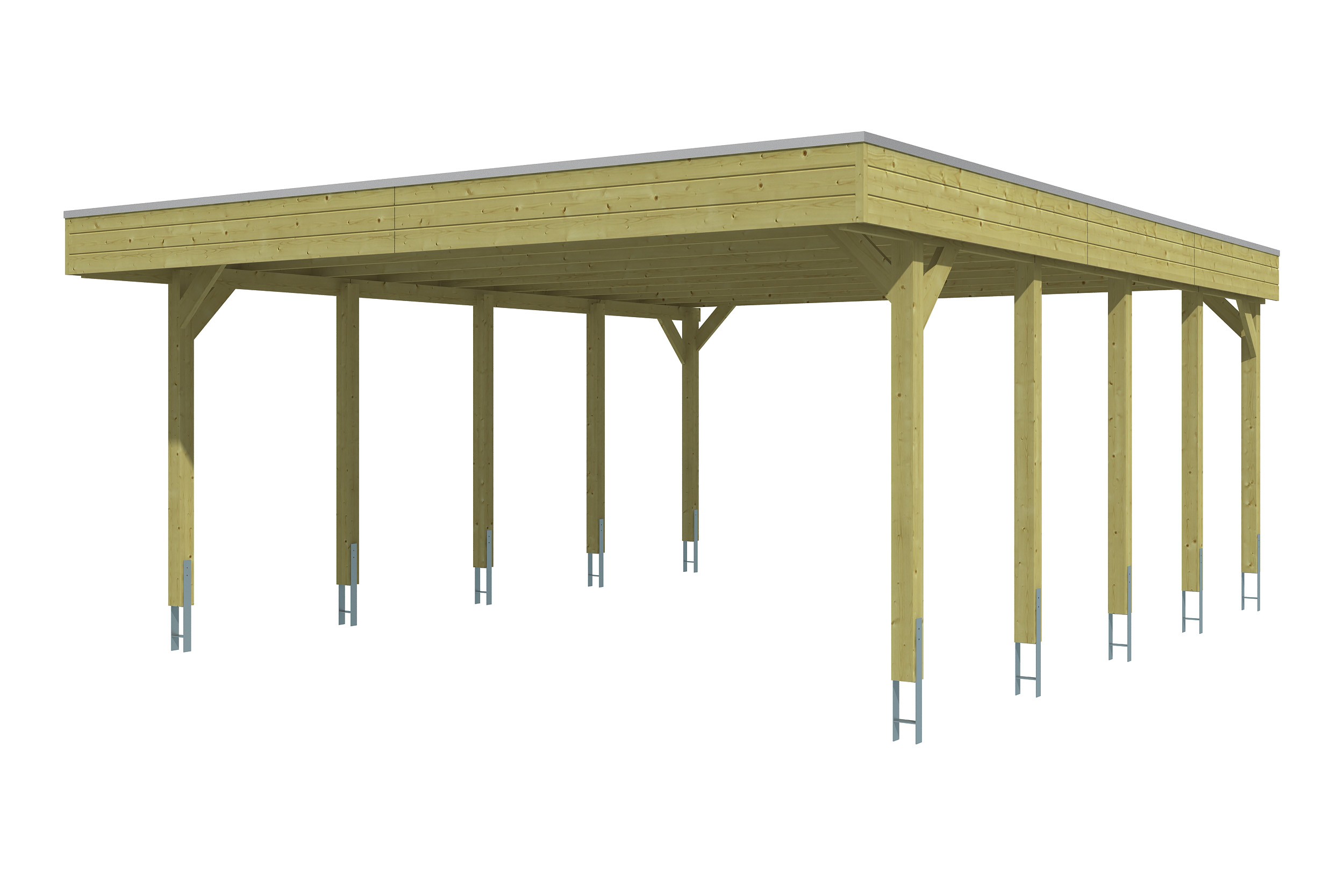

SKAN HOLZ Friesland carport

The Friesland 546 x 708 cm carport offers a high-quality, durable and functional solution for covered car parking or as a sheltered outdoor area. The stable structure of impregnated softwood combined with a robust EPDM roof covering ensures weather resistance and low maintenance while maintaining a natural look.

Exterior dimensions 546 x 708 cm: ideal for one or two cars or as a covered parking area

Structure: Solid, impregnated spruce wood (not kiln dried) with strong 11.5 x 11.5 cm posts

High-quality roof covering: 20 mm roof boarding with fully bonded EPDM foil - durable, stretchable and UV-resistant

Post anchoring: Including 60 cm H-post anchor made of galvanised flat steel for setting in concrete in point foundations to be created on site.

Roof finish: Profiled wood trim with aluminium end edge for a clean, durable finish

Treatment and care instructions:

The wood is protected by the water-based impregnation, but has an increased residual moisture content. Minor drying cracks or resin leakage are natural characteristics and do not reduce the structural strength.

Before further surface treatment, please wait 2-3 months in the sun until the excess impregnation has dried. Then sand the surface lightly, clean and treat twice with a high-quality wood preservative stain.

When selecting the stain, make sure it has good UV protection and follow the manufacturer's processing guidelines. Recommended maintenance intervals are approx. 4-5 years, but at the latest before visible damage occurs.

Technical and planning-relevant information:

Stability: Connecting the posts with the supplied H-anchors creates a stable and permanent anchoring in the concrete point foundation.

Foundation: The size and design of the point foundations can be found in the assembly instructions. On request, you can receive the appropriate foundation plan together with the anchors - please specify when ordering.

Laying the EPDM foil: The EPDM roof covering is supplied as a large-area foil and cold-bonded. EPDM is characterised by its high elasticity, long service life and very good UV protection.

The Friesland carport impresses with its well thought-out details, high-quality materials and easy assembly. It is ideal for customers looking for a durable, visually appealing and functional canopy for their outdoor area.

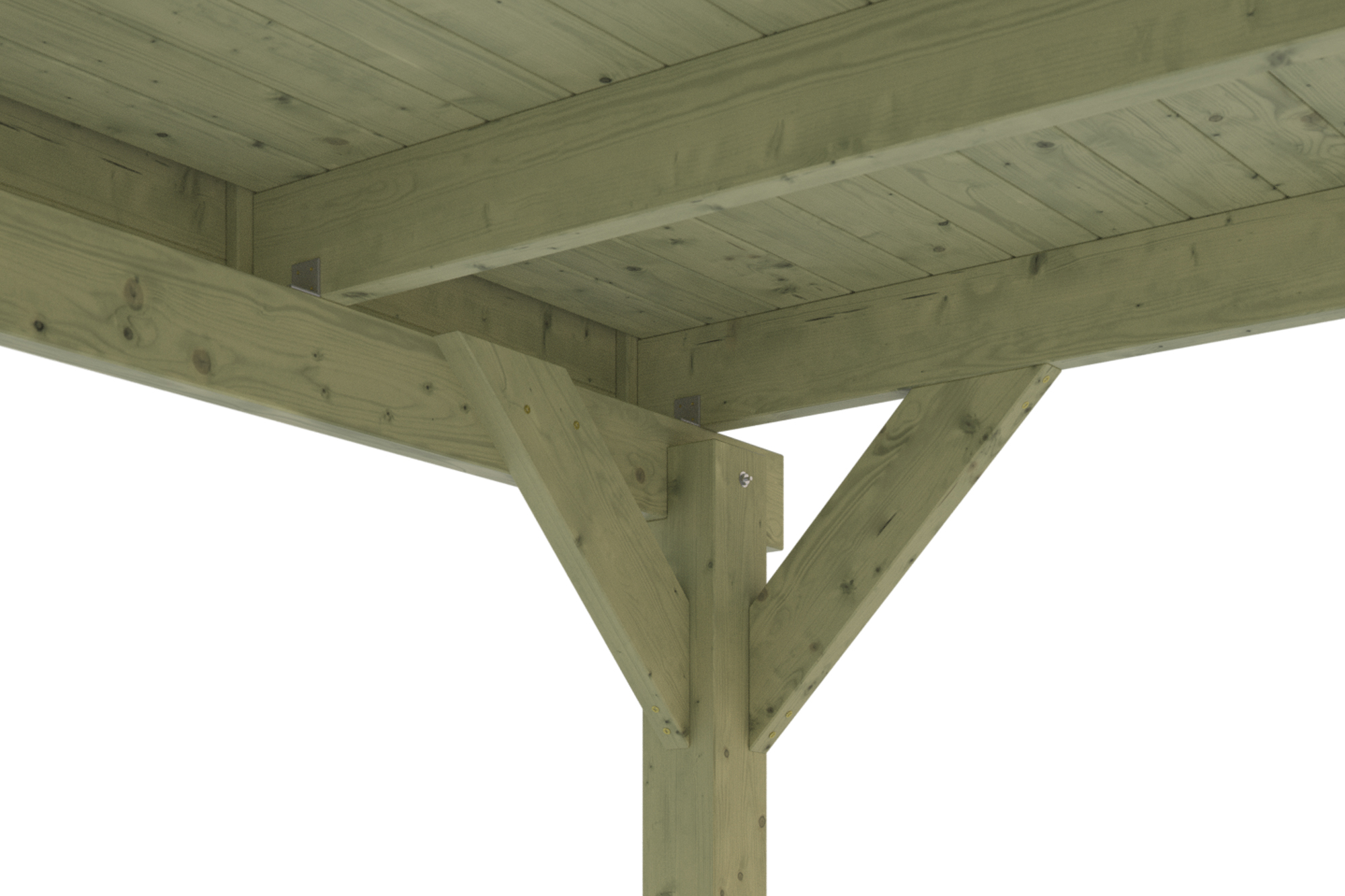

Construction

The construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.

Color treatment

Water-based impregnation protects the wooden components of this building kit from fungus and insect infestations. The building kit can be assembled immediately upon delivery. The wooden surface should be further treated no sooner than 2-3 sunny months later, after the excess impregnation has dried. Lightly sand and clean the surface prior to coating. Apply two coats of premium wood varnish to the surface. Look for good UV protection of the products and follow the guidelines of the varnish manufacturer. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.

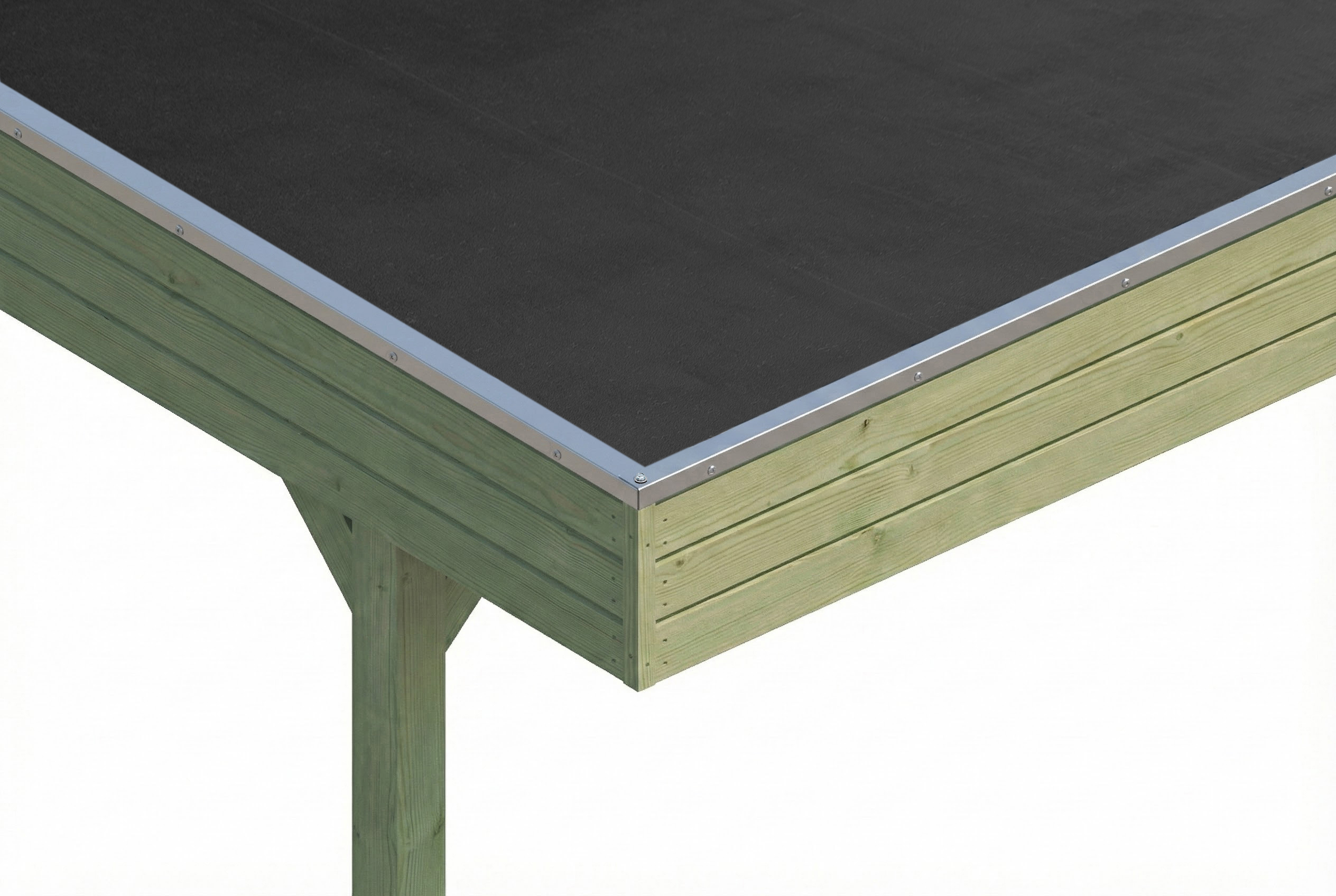

Roofing

Roofing consists of 19 mm-thick roof boarding with EPDM foil. EPDM foil is easy to lay, safe and durable roofing for roofs with low pitch. It features long service life, high elasticity, and excellent resistance to UV radiation. It is laid as one piece using cold bonding with the provided adhesive.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Flat-roof carport

Structure of impregnated softwood

Green impregnated

Roof boarding with EPDM foil

Posts 11.5 x 11.5 cm

Material:	Softwood
Color:	Green
Color treatment:	impregnated
Size:	546 x 708 cm
Basic width:	538 cm
Basic length:	622 cm
Total width:	546 cm
Total length:	708 cm
Roof ridge height:	252 cm
Roof eave height:	238 cm
Total height (front):	252 cm
Total height (behind):	238 cm
Roof shape:	Flat roof
Material roof covering:	Roof boards with EPDM rubber roofing
Color roofing:	Black
Roof thickness:	20 mm
Roof surface:	38.24 m²
Roof edging:	Wooden panel with roof edge profile
Roof slope:	backwards
Slope:	1.2 °
Roof overhang (front):	71 cm
Roof overhang (behind):	15 cm
roof overhang (left):	4 cm
roof overhang (right):	4 cm
Base surface:	38.66 m²
Building volume:	94.71 m³
Passage width:	515 cm
Passage height (front):	219 cm
Passage height (behind):	205 cm
Thickness of posts:	11,5 x 11,5 cm
Post length:	220 cm
Post spacing (width):	515 cm
Post spacing (depth):	141 cm
Number of posts:	10 Piece
Anchoring:	Post anchors
Snow load:	1.25 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	166 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	4 weeks
Number of packages:	2
package weight 1:	1038 kg
packaging width 1:	540 cm
packaging height 1:	55 cm
packaging length 1:	120 cm
package weight 2:	80 kg
packaging width 2:	60 cm
packaging height 2:	60 cm
packaging length 2:	50 cm
Total weight:	1118 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)
