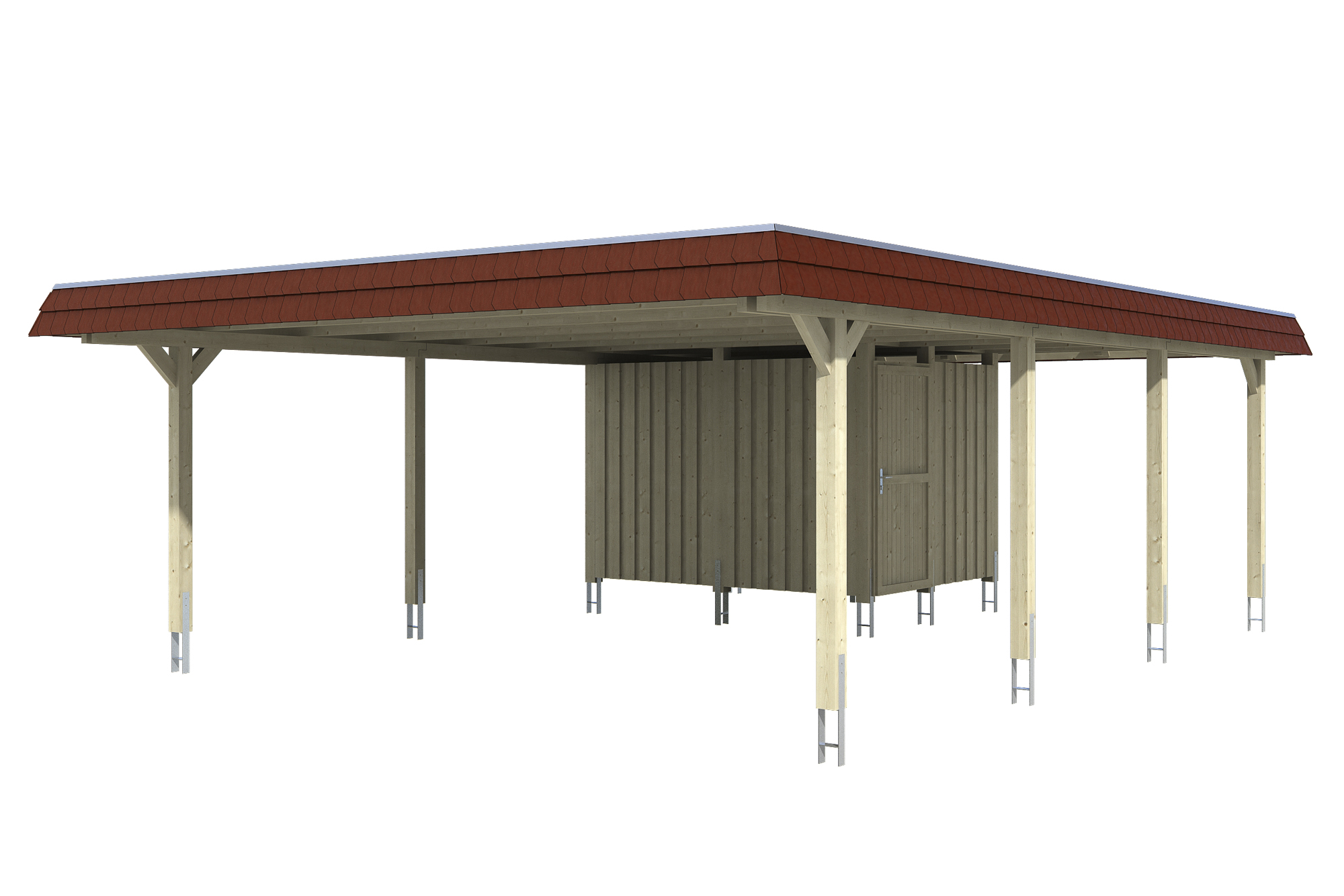

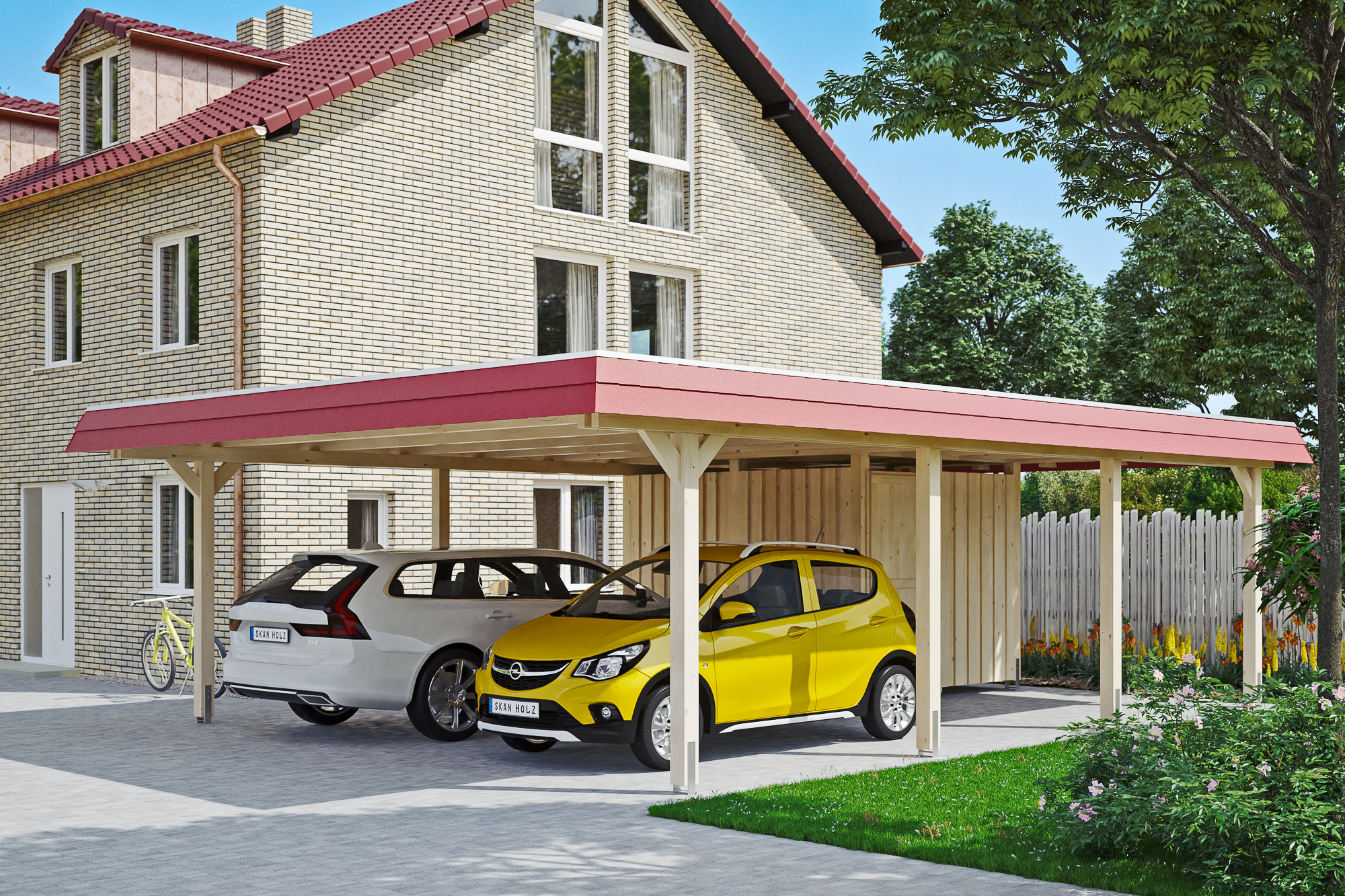

SKAN HOLZ Carport Wendland
- Flat-roof carport
- Exterior dimensions 630 x 879 cm
- with storeroom
- solid structure of high quality glued laminate (BSH spruce)
- not colour-treated
- posts 12 x 12 cm including H-post anchor
- Aluminium roof panels, coated in anthracite paint
- circular red facing in slate look with aluminium end edge
- including rain gutter with downpipe made of anthracite-coated steel
Construction
The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.
Color treatment
This building kit is not treated with color. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular application of protective coatings is thus essential. Primer should be applied to all sides prior to assembly. First apply wood primer to protect against fungus and insects.
Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.
Roofing
Roofing consists of aluminium roof panels with trapezoidal profile, paint-coated (top face anthracite/underside light grey). Unbreakable and hail-resistant. High noise development during precipitation. Formation of condensation possible during temperature fluctuations. High form stability at high surface temperatures.
Rain gutter
The scope of delivery includes a rain gutter made of galvanised and anthracite-coloured coated metal. The gutter is attached to the carport with sternboard brackets. The gutters are joined together using clamp connectors and the ends are sealed with caps for clamping. Pipes and bends are simply inserted into each other. If gutters or pipes need to be shortened on site, please use a hand saw suitable for steel, not an angle grinder. This will also protect the cut edge from rust.
Would you like a white gutter instead of an anthracite one? No problem. Please make a note of this in your order.
Bracing
The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.
- Flat-roof carport
- Solid structure of glued laminate (BSH spruce)
- not Colour-treated
- Aluminium roof panels
- Posts 12 x 12 cm
