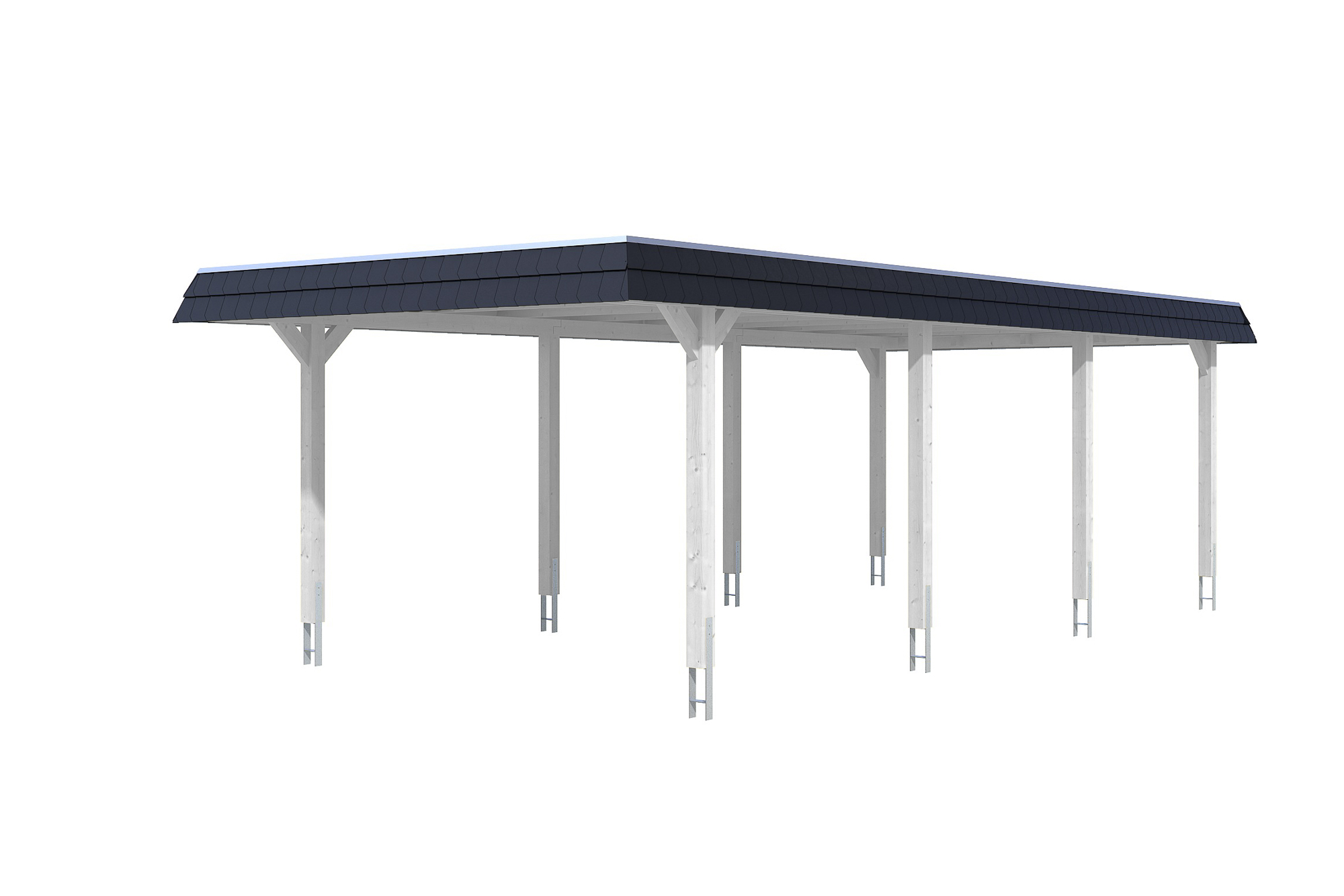

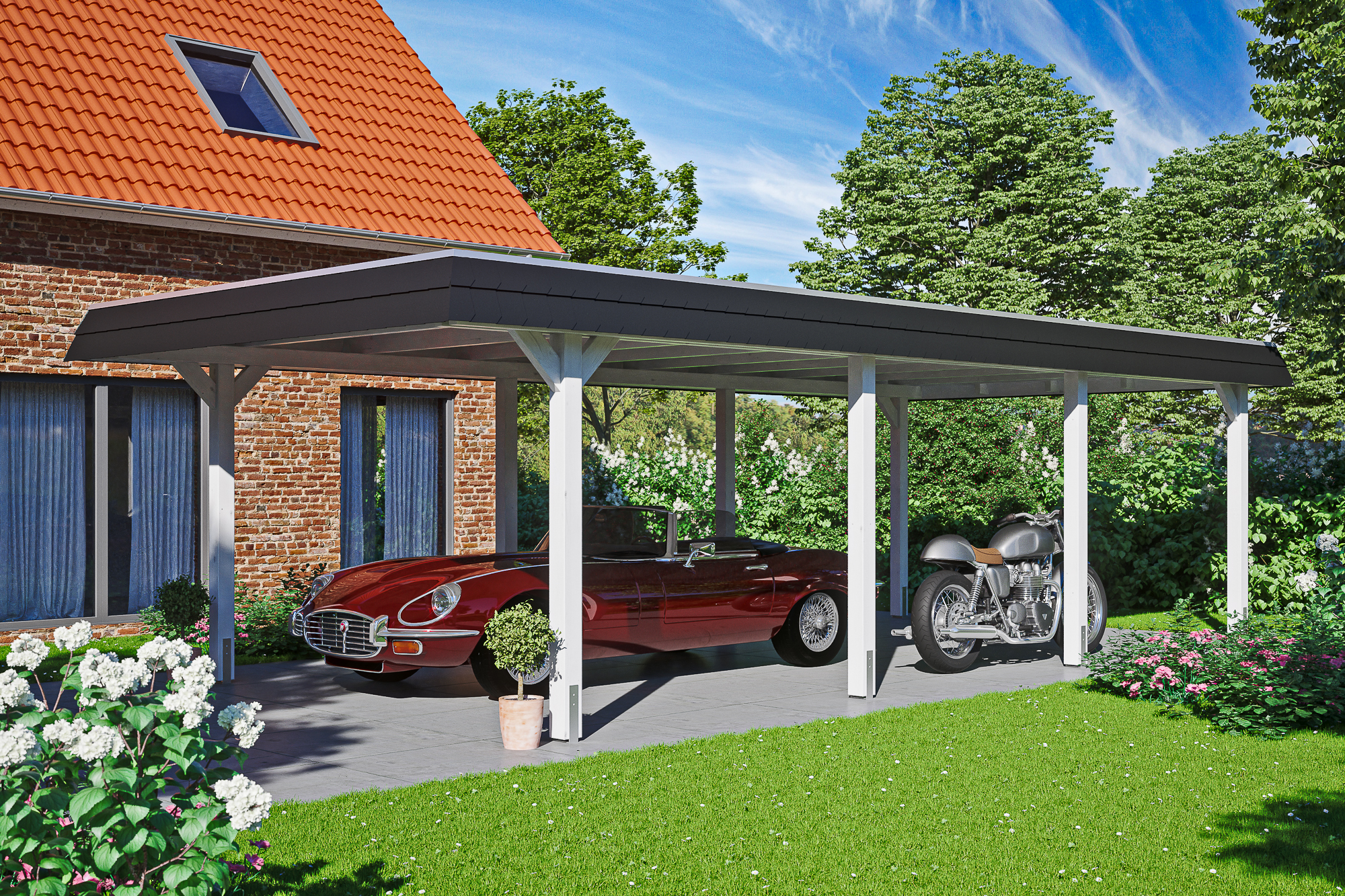

Carport Wendland 409 x 870 cm with EPDM roof, black fascia, colour pre-treated white

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

SKAN HOLZ Carport Wendland

Flat-roof carport

Exterior dimensions 409 x 870 cm

solid structure of high quality glued laminate (BSH spruce)

colour-treated in white

posts 12 x 12 cm including H-post anchor

Roofing of 19 mm-thick roof boarding with EPDM foil

circular black facing in slate look with aluminium end edge

including rain gutter with downpipe made of anthracite-coated steel

Construction

The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.

Color treatment

The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.

You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.

If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.

Roofing

Roofing consists of 19 mm-thick roof boarding with EPDM foil. EPDM foil is easy to lay, safe and durable roofing for roofs with low pitch. It features long service life, high elasticity, and excellent resistance to UV radiation. It is laid as one piece using cold bonding with the provided adhesive.

Rain gutter

The scope of delivery includes a rain gutter made of galvanised and anthracite-coloured coated metal. The gutter is attached to the carport with sternboard brackets. The gutters are joined together using clamp connectors and the ends are sealed with caps for clamping. Pipes and bends are simply inserted into each other. If gutters or pipes need to be shortened on site, please use a hand saw suitable for steel, not an angle grinder. This will also protect the cut edge from rust.

Would you like a white gutter instead of an anthracite one? No problem. Please make a note of this in your order.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Flat-roof carport

Solid structure of glued laminate (BSH spruce)

Colour-treated in white

Roof boarding with EPDM foil

Posts 12 x 12 cm

Material:	Glulam, spruce
Color:	White
Color treatment:	Stained
Size:	409 x 870 cm
Basic width:	365 cm
Basic length:	738 cm
Total width:	409 cm
Total length:	870 cm
Roof ridge height:	247 cm
Roof eave height:	230 cm
Total height (front):	247 cm
Total height (behind):	230 cm
Roof shape:	Flat roof
Material roof covering:	Roof boards with EPDM rubber roofing
Color roofing:	Black
Roof thickness:	20 mm
Roof surface:	30.75 m²
Roof edging:	Circumferential fascia with alu edges
Roof slope:	backwards
Slope:	1.2 °
Roof overhang (front):	94 cm
Roof overhang (behind):	38 cm
roof overhang (left):	22 cm
roof overhang (right):	22 cm
Base surface:	35.58 m²
Building volume:	84.87 m³
Passage width:	341 cm
Passage height (front):	210 cm
Passage height (behind):	193 cm
Thickness of posts:	12 x 12 cm
Post length:	220 cm
Post spacing (width):	341 cm
Post spacing (depth):	230 cm
Number of posts:	8 Stück
Anchoring:	Post anchors
Snow load:	1.25 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	158.86 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	6 weeks
Number of packages:	2
package weight 1:	1043 kg
packaging width 1:	380 cm
packaging height 1:	80 cm
packaging length 1:	120 cm
package weight 2:	104 kg
packaging width 2:	50 cm
packaging height 2:	60 cm
packaging length 2:	50 cm
Total weight:	1147 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)
