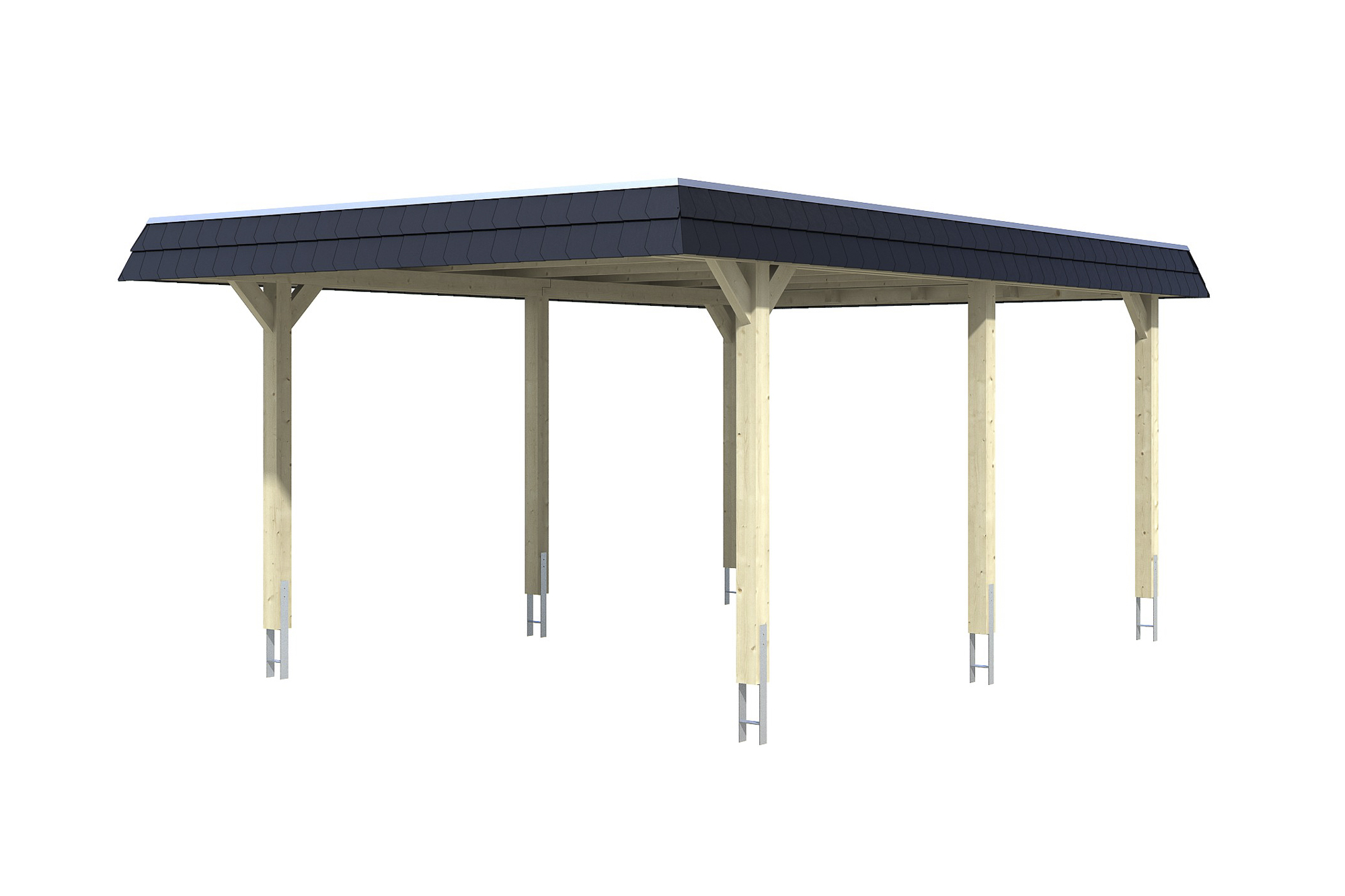

Carport Wendland 409 x 628 cm with aluminium roof, black fascia

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

SKAN HOLZ Carport Wendland

Flat-roof carport

Exterior dimensions 409 x 628 cm

solid structure of high quality glued laminate (BSH spruce)

not colour-treated

posts 12 x 12 cm including H-post anchor

Aluminium roof panels, coated in anthracite paint

circular black facing in slate look with aluminium end edge

including rain gutter with downpipe made of anthracite-coated steel

Construction

The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.

Color treatment

This building kit is not treated with color. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular application of protective coatings is thus essential. Primer should be applied to all sides prior to assembly. First apply wood primer to protect against fungus and insects.
Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.

Roofing

Roofing consists of aluminium roof panels with trapezoidal profile, paint-coated (top face anthracite/underside light grey). Unbreakable and hail-resistant. High noise development during precipitation. Formation of condensation possible during temperature fluctuations. High form stability at high surface temperatures.

Rain gutter

The scope of delivery includes a rain gutter made of galvanised and anthracite-coloured coated metal. The gutter is attached to the carport with sternboard brackets. The gutters are joined together using clamp connectors and the ends are sealed with caps for clamping. Pipes and bends are simply inserted into each other. If gutters or pipes need to be shortened on site, please use a hand saw suitable for steel, not an angle grinder. This will also protect the cut edge from rust.

Would you like a white gutter instead of an anthracite one? No problem. Please make a note of this in your order.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Flat-roof carport

Solid structure of glued laminate (BSH spruce)

not Colour-treated

Aluminium roof panels

Posts 12 x 12 cm

Material:	Glulam, spruce
Color:	Natural
Color treatment:	Untreated
Size:	409 x 628 cm
Basic width:	365 cm
Basic length:	496 cm
Total width:	409 cm
Total length:	628 cm

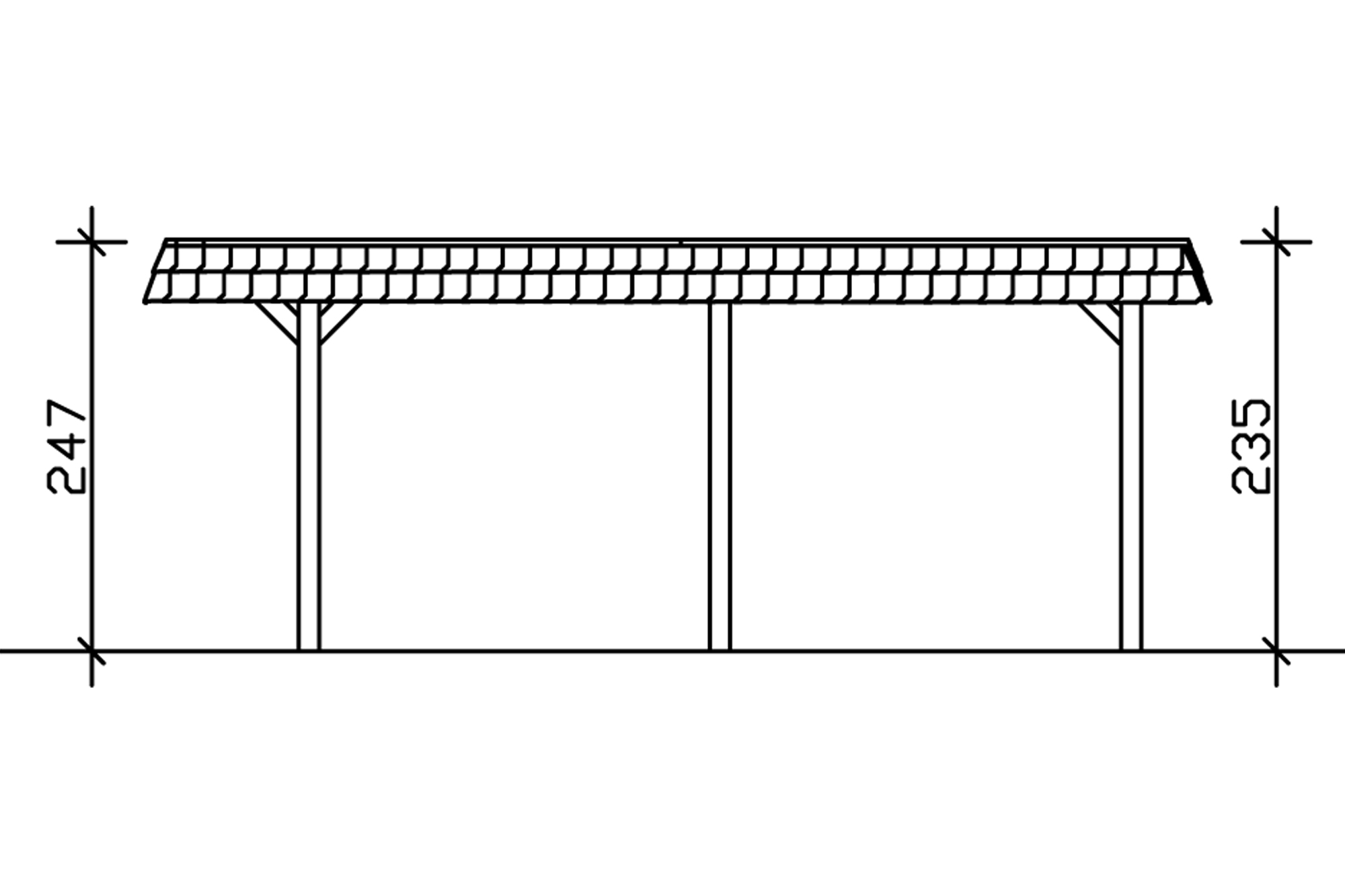

Roof ridge height:	247 cm
Roof eave height:	235 cm
Total height (front):	247 cm
Total height (behind):	235 cm
Roof shape:	Flat roof
Material roof covering:	Aluminium roof panels with trapezoidal profile
Color roofing:	Anthracite
Roof thickness:	0,5 mm
Roof surface:	21.79 m²
Roof edging:	Circumferential fascia with alu edges
Roof slope:	backwards
Slope:	1.2 °
Roof overhang (front):	94 cm
Roof overhang (behind):	38 cm
roof overhang (left):	22 cm
roof overhang (right):	22 cm
Base surface:	25.69 m²
Building volume:	61.9 m³

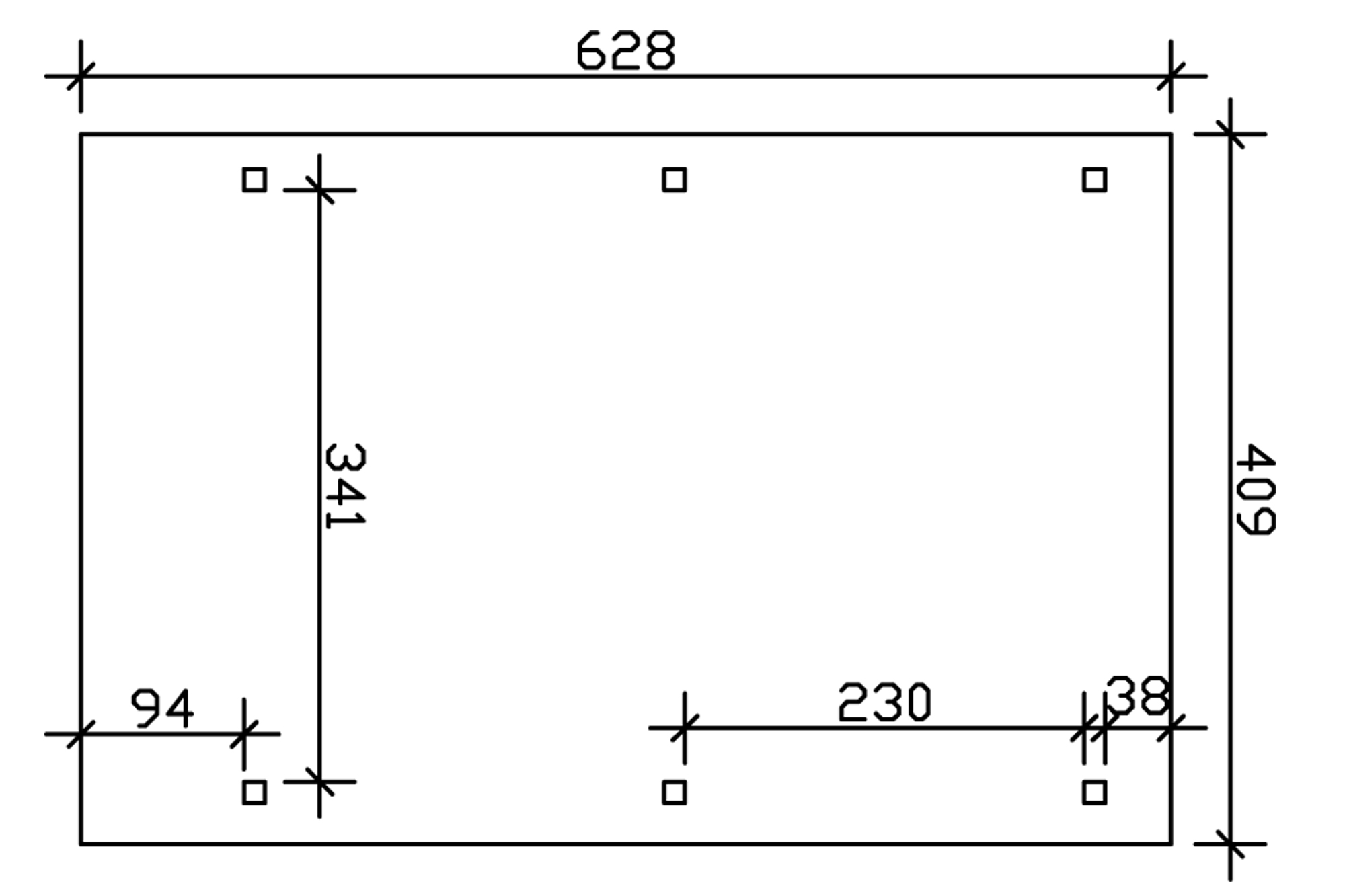

Passage width:	341 cm
Passage height (front):	210 cm
Passage height (behind):	198 cm
Thickness of posts:	12 x 12 cm
Post length:	220 cm
Post spacing (width):	341 cm
Post spacing (depth):	230 cm
Number of posts:	6 Stück
Anchoring:	Post anchors
Snow load:	1.25 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	53.17 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	4 Wochen
Number of packages:	1
package weight 1:	640 kg
packaging width 1:	380 cm
packaging height 1:	65 cm
packaging length 1:	120 cm
Total weight:	640 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)
