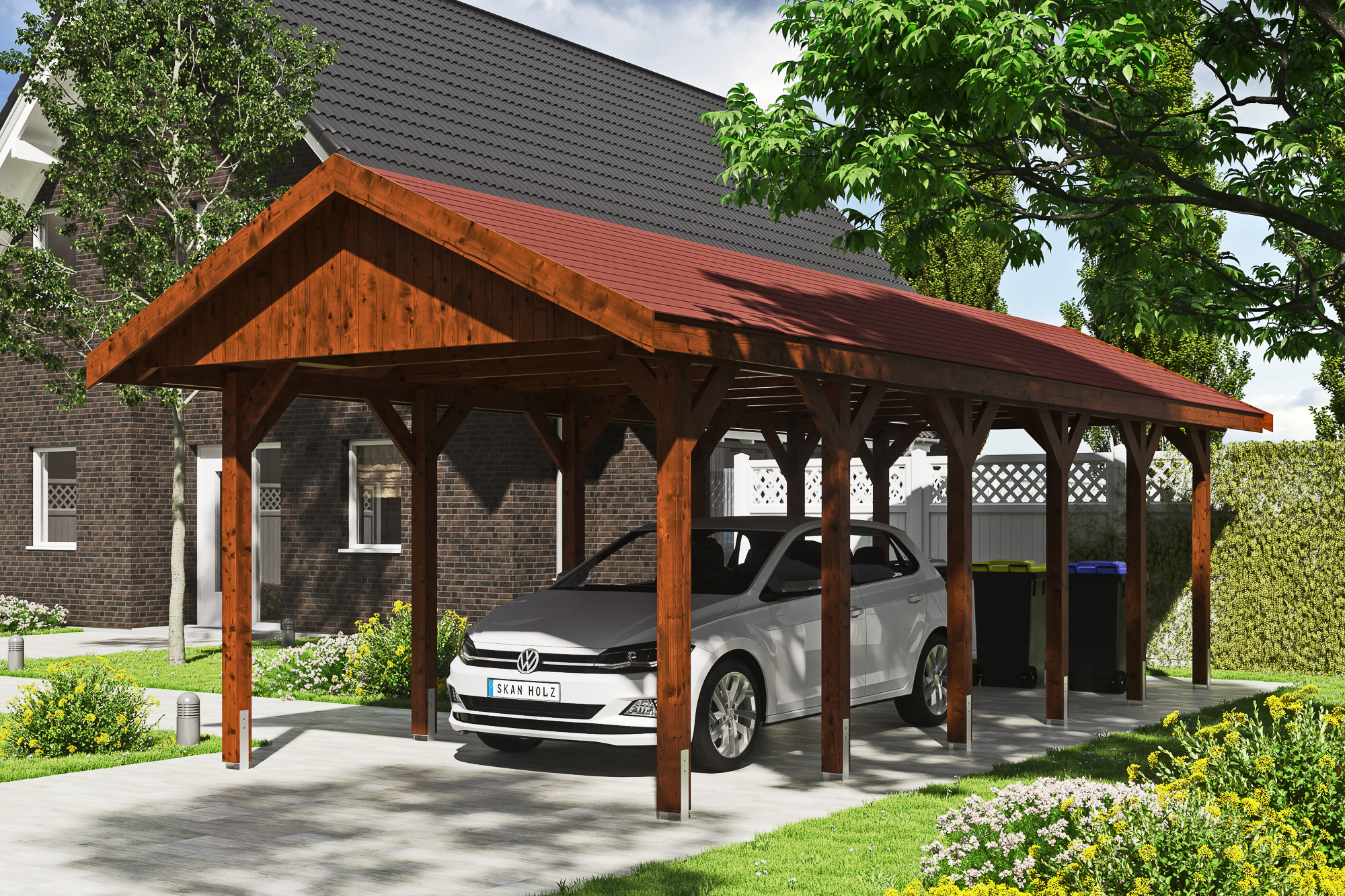

Carport Wallgau 380 x 900 cm, colour pre-treated walnut, red shingles

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

SKAN HOLZ Carport Wallgau

Saddle-roof carport

Exterior dimensions 380 x 900 cm

Structure of impregnated softwood

colour-treated in walnut

posts 11,5 x 11,5 cm including H-post anchor

Rafter roof with 20 mm roof boarding

including red bitumen roof shingles

Construction

The construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.

Color treatment

The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.

You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.

If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.

Roofing

The roof is supplied with 20 mm-thick roof boarding of solid wood roofing with roof shingles.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Saddle-roof carport

Structure of impregnated softwood

Colour-treated in walnut

Rafter roof with roof boarding and red shingles

Posts 11,5 x 11,5 cm

Material:	Softwood
Color:	Walnut
Color treatment:	Stained
Size:	380 x 900 cm
Basic width:	314 cm
Basic length:	769 cm
Total width:	380 cm
Total length:	900 cm

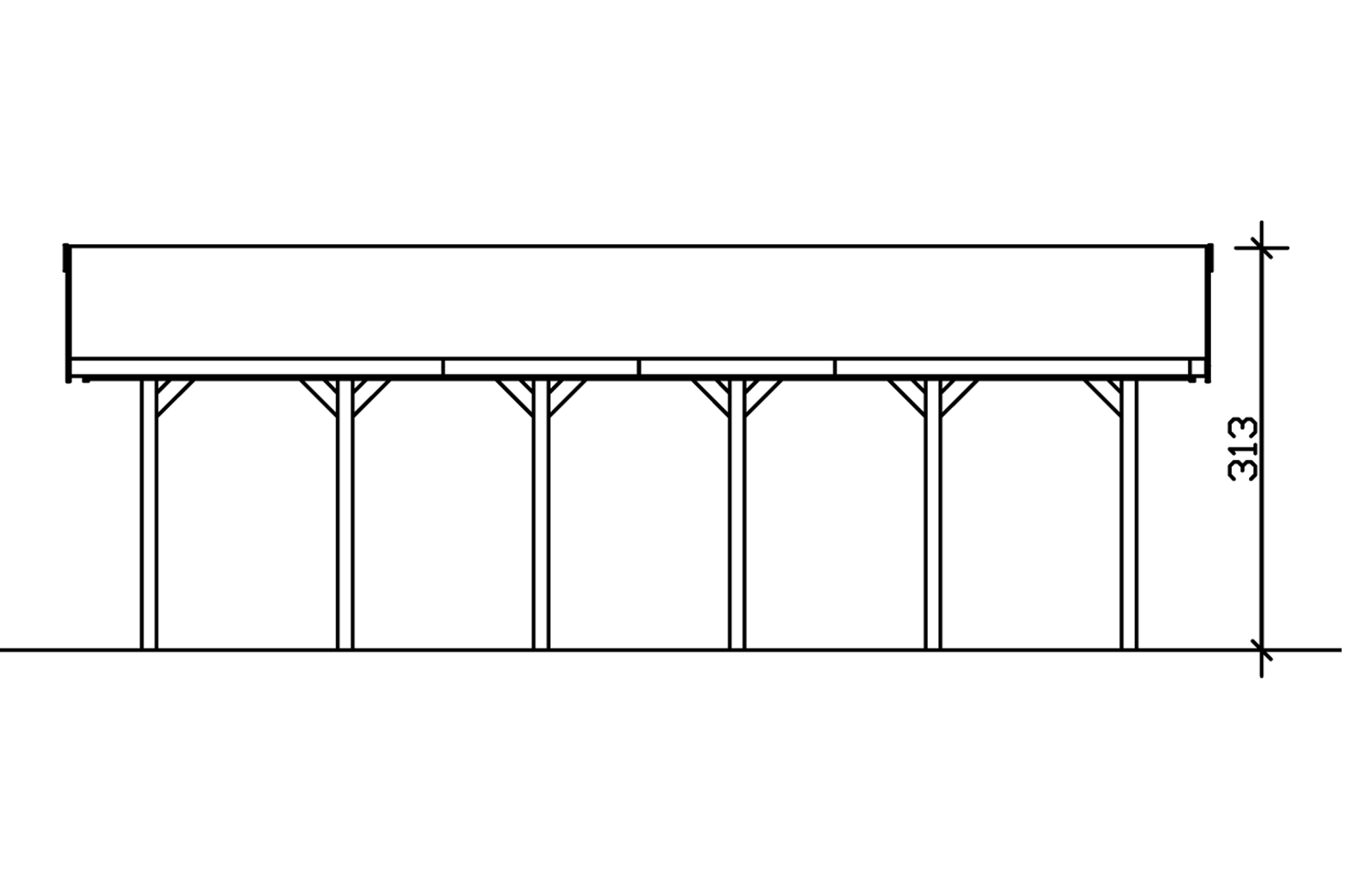

Roof ridge height:	313 cm
Roof eave height:	225 cm
Total height (front):	313 cm
Total height (behind):	313 cm
Roof shape:	Saddle roof
Material roof covering:	Shingles, red
Color roofing:	Red
Roof thickness:	20 mm
Roof surface:	36.54 m²
Roof edging:	Wooden fascia
Roof slope:	to the side
Slope:	25 °
Roof overhang (front):	65.5 cm
Roof overhang (behind):	65.5 cm
roof overhang (left):	33 cm
roof overhang (right):	33 cm
Base surface:	34.2 m²
Building volume:	92 m³
Passage width:	291 cm
Passage height (front):	215 cm
Passage height (behind):	215 cm
Thickness of posts:	11,5 x 11,5 cm
Post length:	220 cm
Post spacing (width):	291 cm
Post spacing (depth):	141 cm
Number of posts:	12
Anchoring:	Post anchors
Snow load:	2 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	177.92 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	6 weeks
Number of packages:	1
package weight 1:	1340 kg
packaging width 1:	320 cm
packaging height 1:	95 cm
packaging length 1:	120 cm
Total weight:	1340 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)
