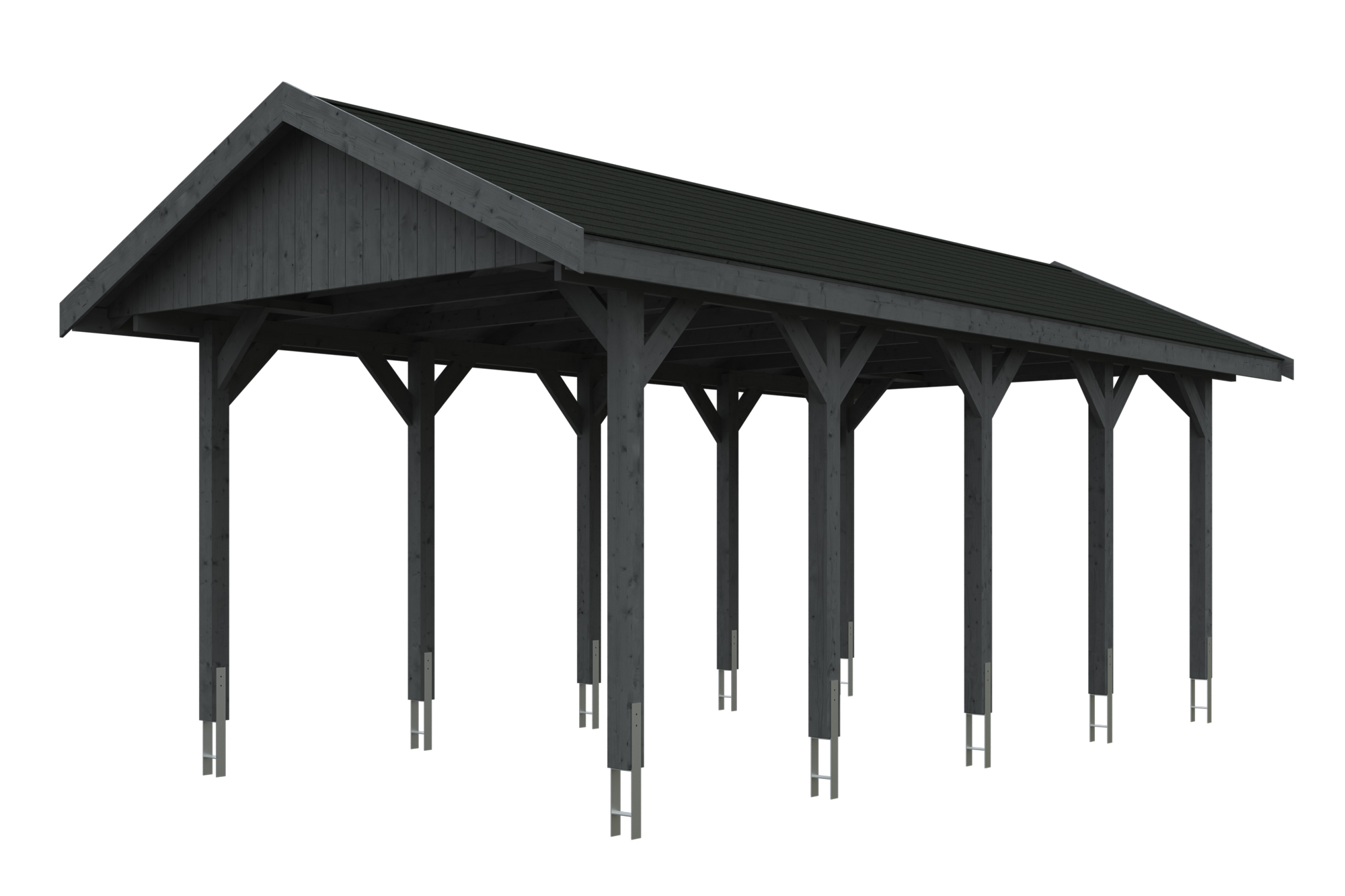

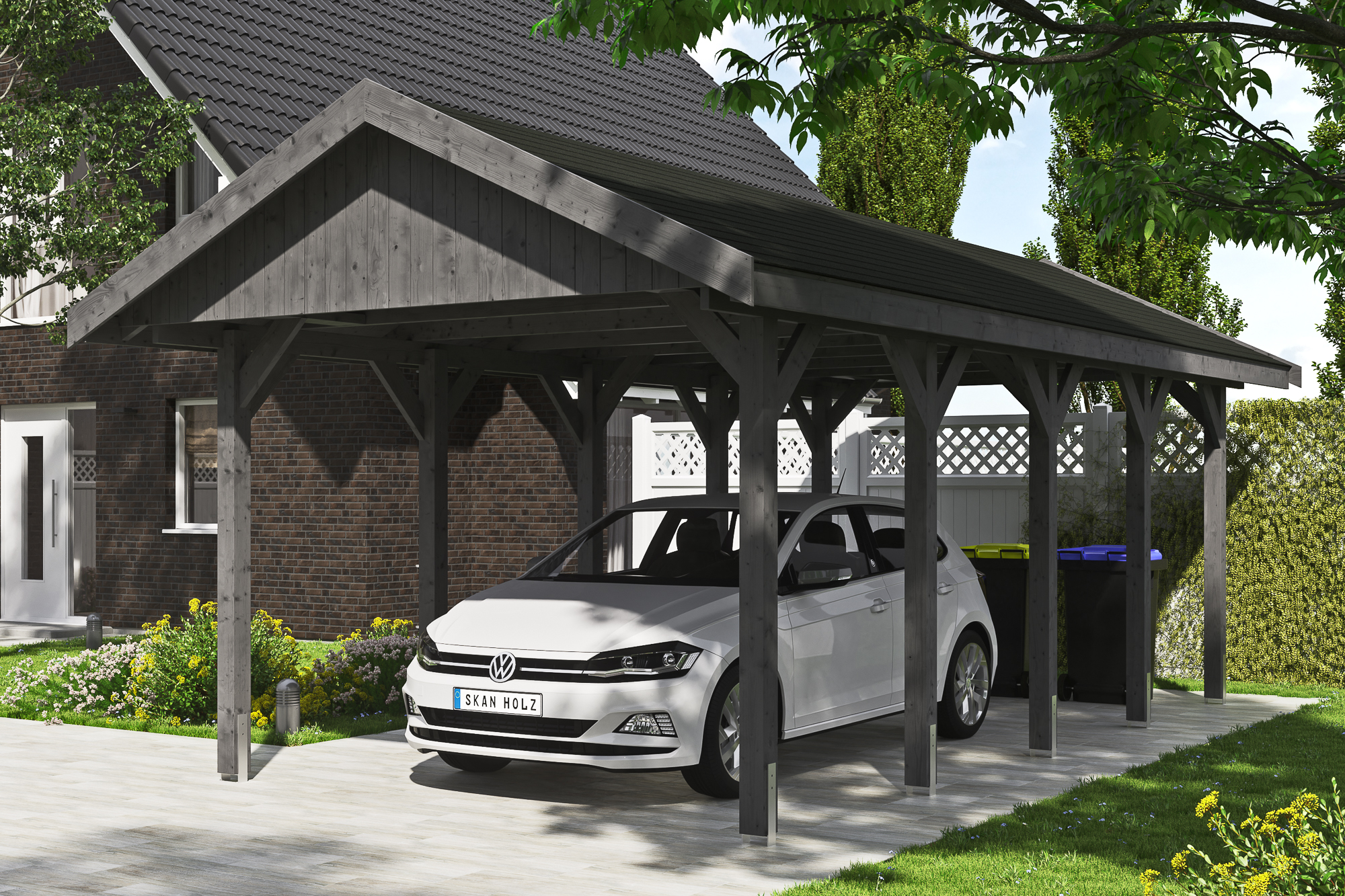

Carport Wallgau 380 x 750 cm, colour pre-treated in slate-grey, black shingles

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

SKAN HOLZ Carport Wallgau

Saddle-roof carport

Exterior dimensions 380 x 750 cm

Structure of impregnated softwood

colour-treated in slate grey

posts 11,5 x 11,5 cm including H-post anchor

Rafter roof with 20 mm roof boarding

including black bitumen roof shingles

Construction

The construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.

Color treatment

The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.

You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.

If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.

Roofing

The roof is supplied with 20 mm-thick roof boarding of solid wood roofing with roof shingles.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Saddle-roof carport

Structure of impregnated softwood

Colour-treated in slate grey

Rafter roof with roof boarding and black shingles

Posts 11,5 x 11,5 cm

Material:	Softwood
Color:	Slate-grey
Color treatment:	Stained
Size:	380 x 750 cm
Basic width:	314 cm
Basic length:	619 cm
Total width:	380 cm
Total length:	750 cm
Roof ridge height:	313 cm
Roof eave height:	225 cm
Total height (front):	313 cm
Total height (behind):	313 cm
Roof shape:	Saddle roof
Material roof covering:	Shingles, black
Color roofing:	Black
Roof thickness:	20 mm
Roof surface:	30.45 m²
Roof edging:	Wooden fascia
Roof slope:	to the side
Slope:	25 °
Roof overhang (front):	65.5 cm
Roof overhang (behind):	65.5 cm
roof overhang (left):	33 cm
roof overhang (right):	33 cm
Base surface:	28.5 m²
Building volume:	76.67 m³
Passage width:	291 cm
Passage height (front):	215 cm
Passage height (behind):	215 cm
Thickness of posts:	11,5 x 11,5 cm
Post length:	220 cm
Post spacing (width):	291 cm
Post spacing (depth):	141 cm
Number of posts:	10 Stück
Anchoring:	Post anchors
Snow load:	2 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	150.22 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	6 weeks
Number of packages:	1
package weight 1:	1128 kg
packaging width 1:	320 cm
packaging height 1:	87 cm
packaging length 1:	120 cm
Total weight:	1128 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)

Accessories

Guttering set for saddle roofed-carports 800cm, PVC, brown

Weather-resistant brown resin gutter set.Length: 2 x 800 cmColour: browndiameter gutter 100 mmdiameter downpipe 75 mmconsisting of :gutter(s)downpipedownpipe bendconnection elementspipe clampsgutter end piecesgutter bracketsscrews for gutter bracketsSimple inserting and clamping of parts.PVC gutter set, brown800cmDiameter downpipe 75 mm

€585.00*

Details

Guttering set for saddle roofed-carports 812cm, anthrazit, steel

Weather-resistant metal gutter set.Length: 2 x 812 cmColour: anthracite coateddiameter gutter 100 mmdiameter downpipe 75 mmconsisting of :gutter(s)downpipeconnection elementsgutter end piecespipe clampsgutter bracketsdownpipe bendscrews for gutter bracketssilicone cartridge for sealingEasy insertion and clamping of parts, one-time gluing of gutter end pieces, no soldering nor welding.Metal gutter setAnthraciteDiameter gutter 100 mmDiameter downpipe 75 mm

€559.00*

Details

Sidewall in profiled siding material 141 x 200 cm, softwood impregnated, colour pre-treated in slate grey

Sidewall of profiled siding material for installation under a SKAN HOLZ carportProfiled siding consists of loose tongued and grooved timber in 20 mm thickness, which is attached to one another and mounted between the posts.Product featuresWidth: 141 cmHeight: 200 cmThickness: 20 mmMaterial: sprucecolour-treated in slate greyConstructionThe construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Sidewall in profiled siding materialSuitable for post spacing of 141 cmProfiled siding materialColour-treated in slate grey

€255.00*

Details

Backwall in profiled siding material 291 x 200 cm, softwood impregnated, colour pre-treated in slate grey

Backwall of profiled siding material for installation under a SKAN HOLZ carportProfiled siding consists of loose tongued and grooved timber in 20 mm thickness, which is attached to one another and mounted between the posts.Product featuresWidth: 291 cmHeight: 200 cmThickness: 20 mmincluding post 9 x 9 cmincluding H-post anchorMaterial: sprucecolour-treated in slate greyConstructionThe construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Backwall in profiled siding materialSuitable for post spacing of 291 cmProfiled siding materialColour-treated in slate grey

€585.00*

Details

Replacement post for higher entrance, 11,5x11,5cm, by 20cm to length of 240cm, colour pre-treated in slate grey

Do you need longer posts?Order the replacement posts, made of impregnated softwood, for your carport. The standard 220 cm-long posts in the building kit are then exchanged for posts of 240 cm.Product featuresLength: 240 cm (20 cm)Thickness: 11,5 x 11,5 cmcolour-treated in slate greyAttention: the surcharge applies per post, and they can only be ordered directly with the carport.Replacement post for higher entrance11,5x11,5cm, by 20cm to length of 240cmStructure of impregnated softwoodColour-treated in slate grey

€6.37*

Details

Replacement post for higher entrance, 11,5x11,5cm, by 80cm to length of 300cm, colour pre-treated in slate grey

Do you need longer posts?Order the replacement posts, made of impregnated softwood, for your carport. The standard 220 cm-long posts in the building kit are then exchanged for posts of 300 cm.Product featuresLength: 300 cm (80 cm)Thickness: 11,5 x 11,5 cmcolour-treated in slate greyAttention: the surcharge applies per post, and they can only be ordered directly with the carport.Replacement post for higher entrance11,5x11,5cm, by 80cm to length of 300cmStructure of impregnated softwoodColour-treated in slate grey

€25.51*

Details

Snow load Wallgau 380 x 750 cm, colour pre-treated in slate grey

The SKAN HOLZ increased snow-load consists of additional rafter triangles that you mount between the existing rafter triangles. In this way you reduce the rafter spacing of the carport and thereby increase the overall load capacity. The number and size of the rafters varies depending on the carport.Increased snow load increases the snow load of the carport to 3,25 kN/m².This increased snow load fits the following models:Carport Wallgau 380 x 750 cmcolour-treated in slate greyPlease be aware:Increased snow load cannot subsequently be backfitted on the carports. Before assembling, please find out what the snow-load limit is in your area.ConstructionThe construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Snow load380 x 750 cmStructure of impregnated softwoodColour-treated in slate grey

€519.00*

Details

Storage room C1 profiled siding material 314 x 164 cm, softwood impregnated, colour pre-treated in slate grey

Storeroom of profiled siding material (for installation under a SKAN HOLZ carport)Profiled siding consists of loose tongued and grooved timber in 20 mm thickness, which is attached to one another and mounted between the posts.Product featuresWidth: 314 cmDepth: 164 cmHeight: 200 cmdoor (door clear opening 94 x 190 cm)Thickness: 20 mmpost including H-post anchorposts marked with red are available for carportsCustomer can easily adapt when installing into a carport with narrow passage widthMaterial: sprucecolour-treated in slate greyConstructionThe construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Storeroom C1314 x 164 cmProfiled siding materialColour-treated in slate grey

€1,625.00*

Details
