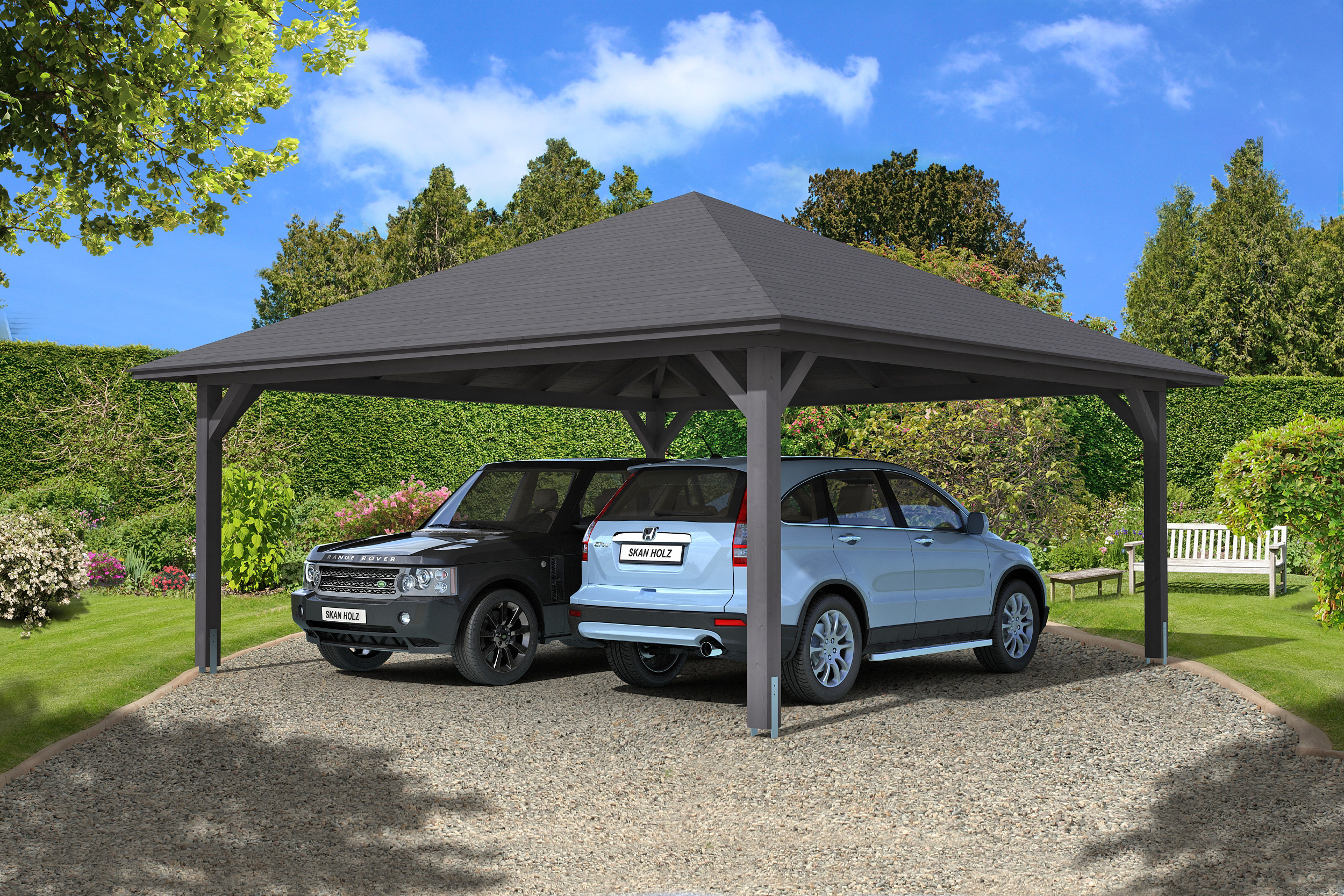

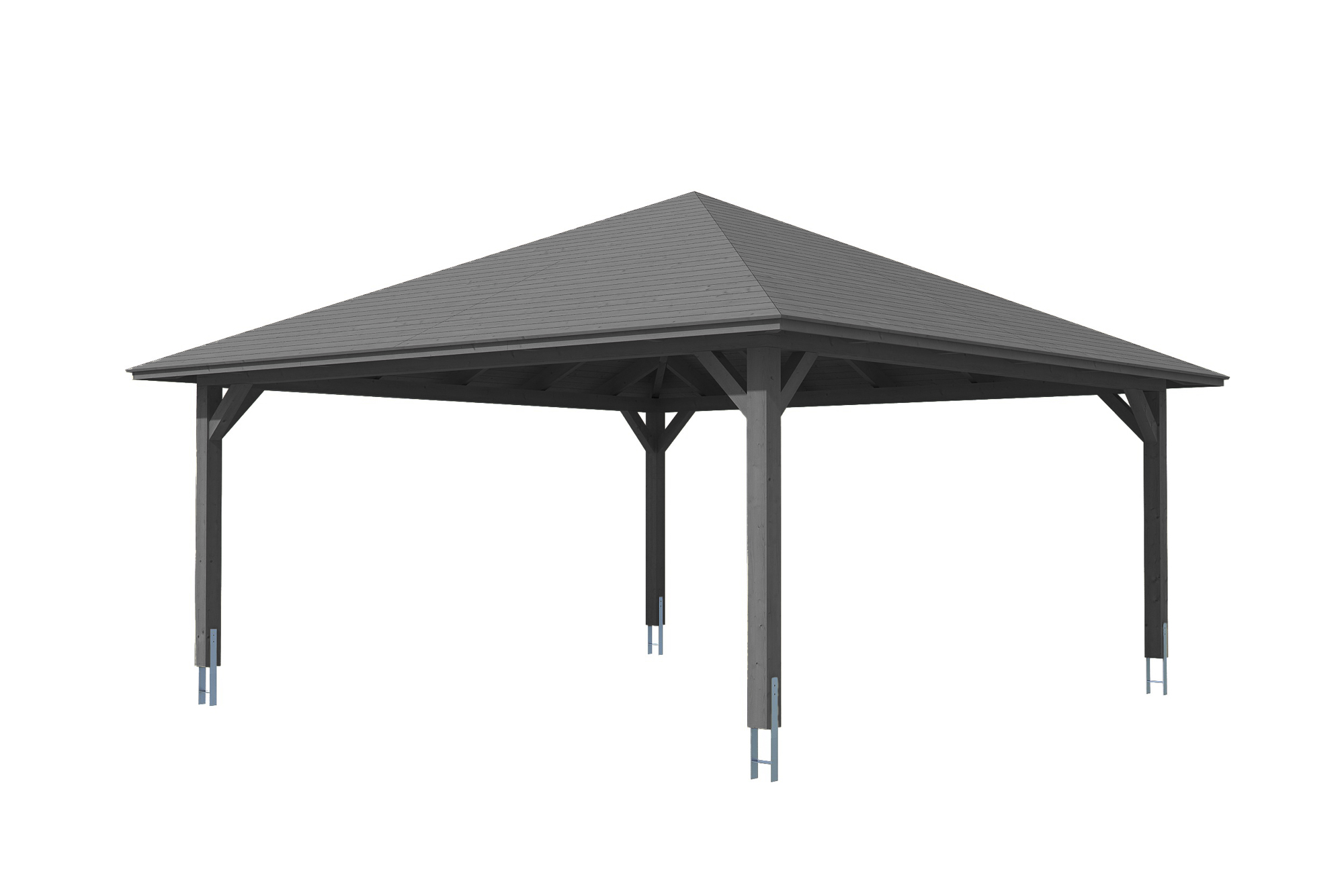

SKAN HOLZ Carport Taunus
- Pavilion-roof carport
- Exterior dimensions 634 x 634 cm
- solid structure of high quality glued laminate (BSH spruce)
- colour-treated in slate grey
- posts 14 x 14 cm including H-post anchor
- tongued post-purlin connections
- gekervte rafters
- beveled hip rafter
- 20 mm roof boarding
- Shingles optionally available
Construction
The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.
Color treatment
The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.
You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.
If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.
Roofing
The roof is supplied with 20 mm-thick roof boarding for roofing with roof shingles (roof shingles optionally available).
Bracing
The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.
- Pavilion-roof carport
- Solid structure of glued laminate (BSH spruce)
- Colour-treated in slate grey
- Rafter roof with 20 mm roof boarding
- Posts 14 x 14 cm
