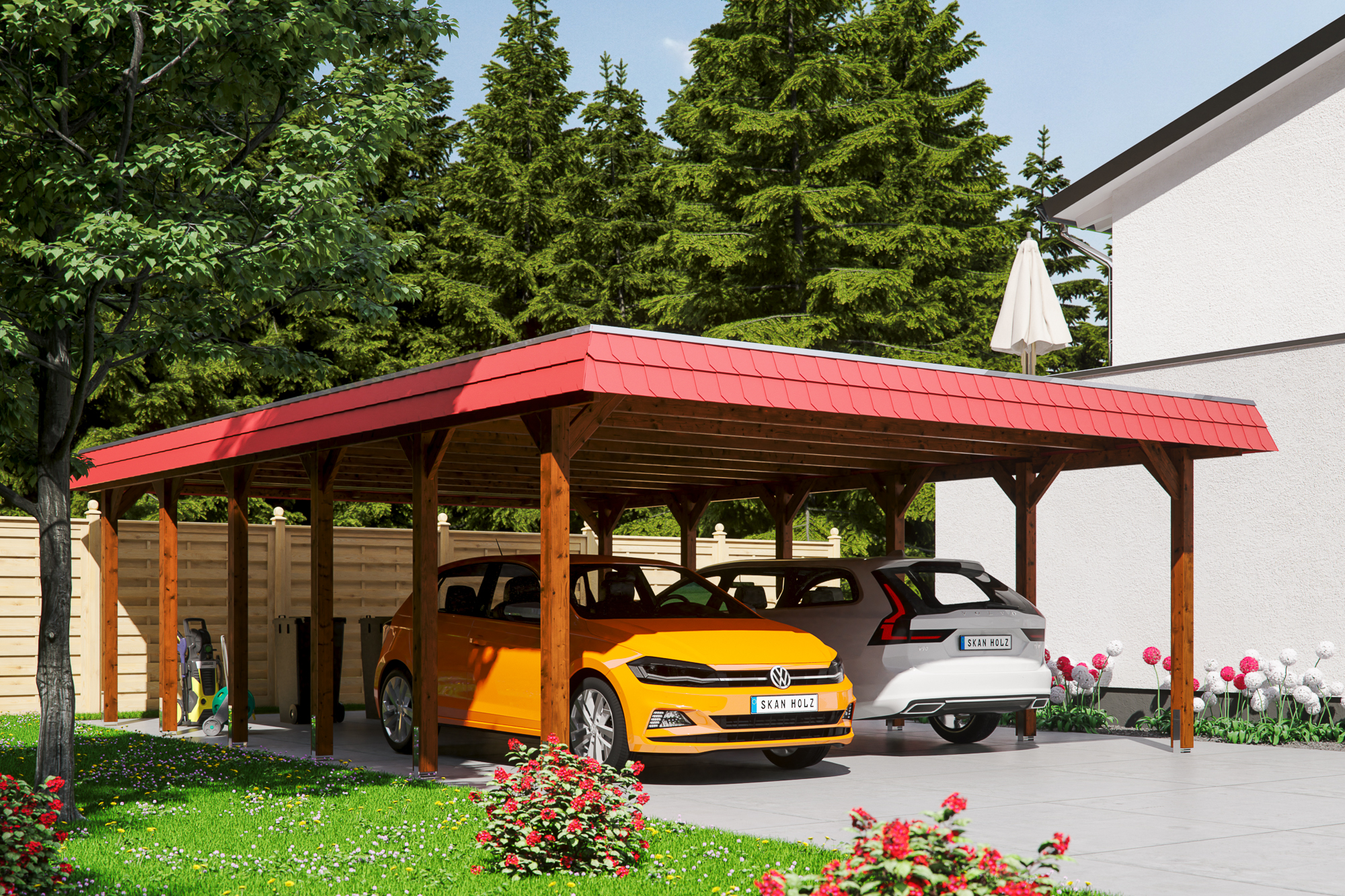

Carport Spreewald 585 x 893 cm with aluminium roof, red fascia, colour pre-treated walnut

€7,869.00*

Prices incl. VAT plus shipping costs

Color

Green

Walnut

Size

585 x 893 cm

585 x 589 cm

585 x 741 cm

Material roof covering

Aluminium roof panels with trapezoidal profile

Roof boards with EPDM rubber roofing

Product number: 313914-03-50

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

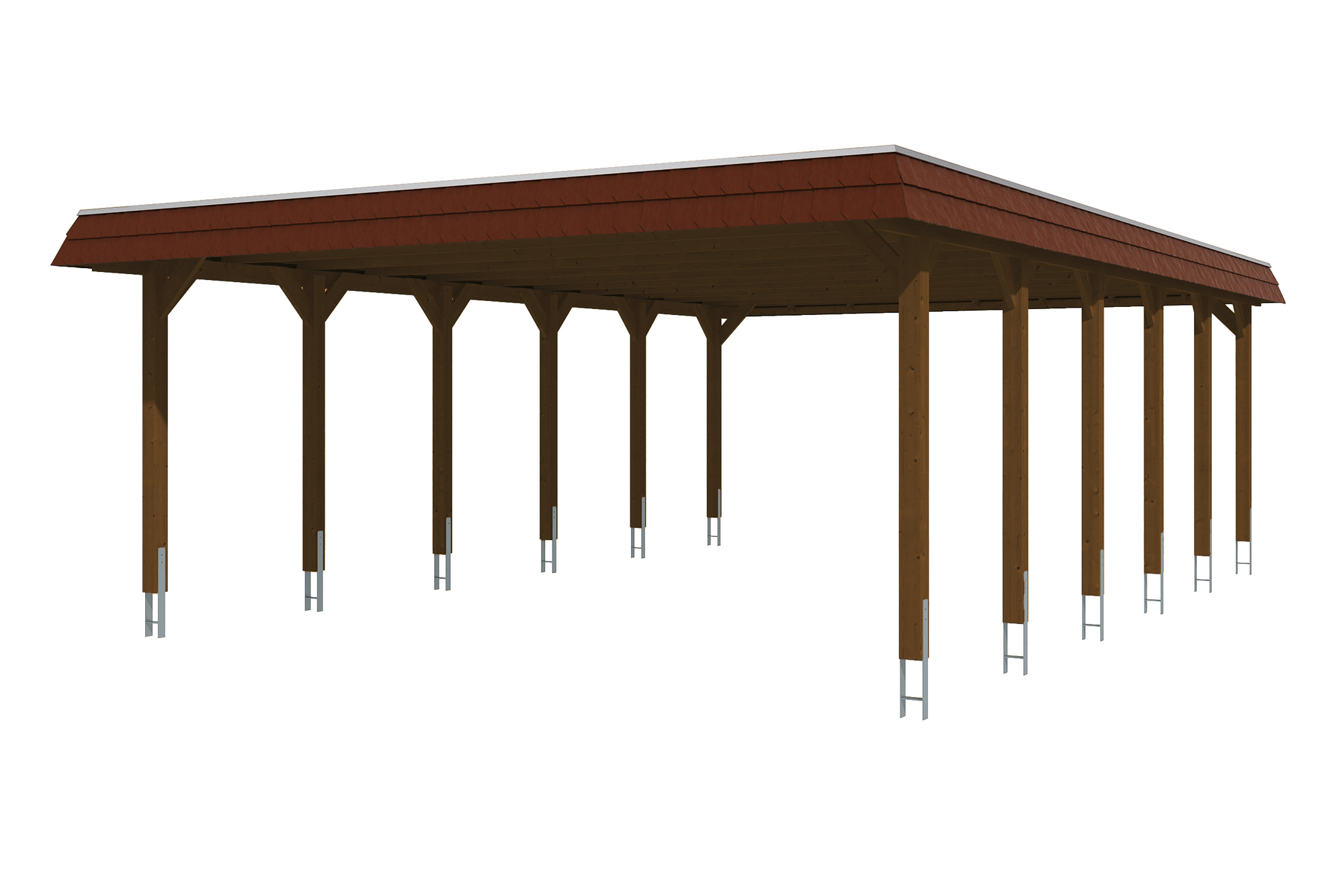

SKAN HOLZ Carport Spreewald

Flat-roof carport

Exterior dimensions 585 x 893 cm

Structure of impregnated softwood

colour-treated in walnut

posts 11,5 x 11,5 cm including H-post anchor

Aluminium roof panels (blank)

circular red facing in slate look with aluminium end edge

including plastic gutter with downpipe

Construction

The construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.

Color treatment

The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.

You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.

If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.

Roofing

Roofing consists of aluminium roof panels with trapezoidal profile, bare. Unbreakable and hail-resistant. High noise development during precipitation. Formation of condensation possible during temperature fluctuations. High form stability at high surface temperatures.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Flat-roof carport

Structure of impregnated softwood

Colour-treated in walnut

Aluminium roof panels

Posts 11,5 x 11,5 cm

Material:	Softwood
Color:	Walnut
Color treatment:	Stained
Size:	585 x 893 cm
Basic width:	553 cm
Basic length:	773 cm
Total width:	585 cm
Total length:	893 cm

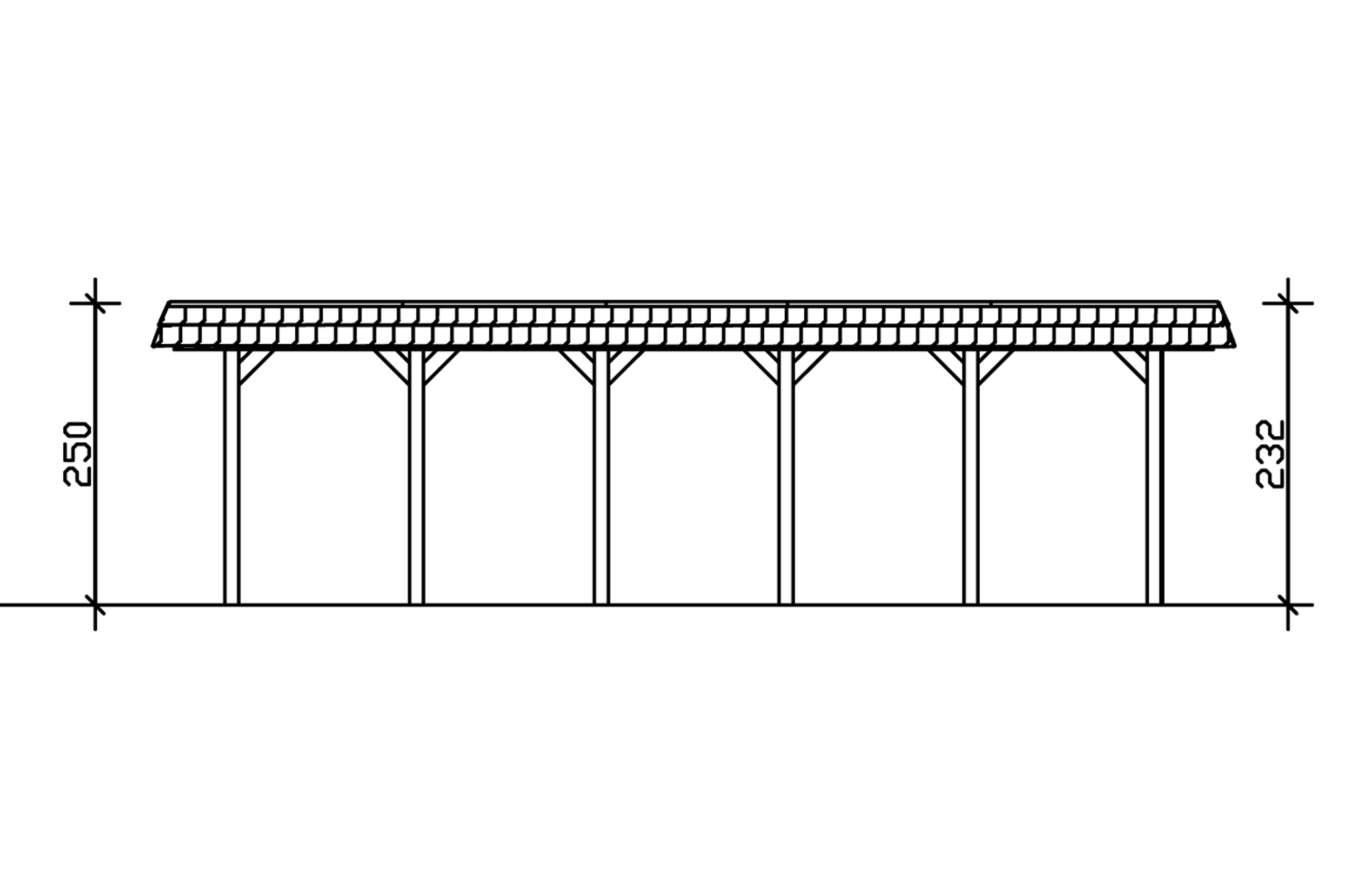

Roof ridge height:	250 cm
Roof eave height:	232 cm
Total height (front):	250 cm
Total height (behind):	232 cm
Roof shape:	Flat roof
Material roof covering:	Aluminium roof panels with trapezoidal profile
Color roofing:	Aluminum
Roof thickness:	0,5 mm
Roof surface:	46.91 m²
Roof edging:	Circumferential fascia with alu edges
Roof slope:	backwards
Slope:	1.2 °
Roof overhang (front):	60 cm
Roof overhang (behind):	60 cm
roof overhang (left):	16 cm
roof overhang (right):	16 cm
Base surface:	52.24 m²
Building volume:	125.9 m³
Passage width:	530 cm
Passage height (front):	215 cm
Passage height (behind):	197 cm
Thickness of posts:	11,5 x 11,5 cm
Post length:	220 cm

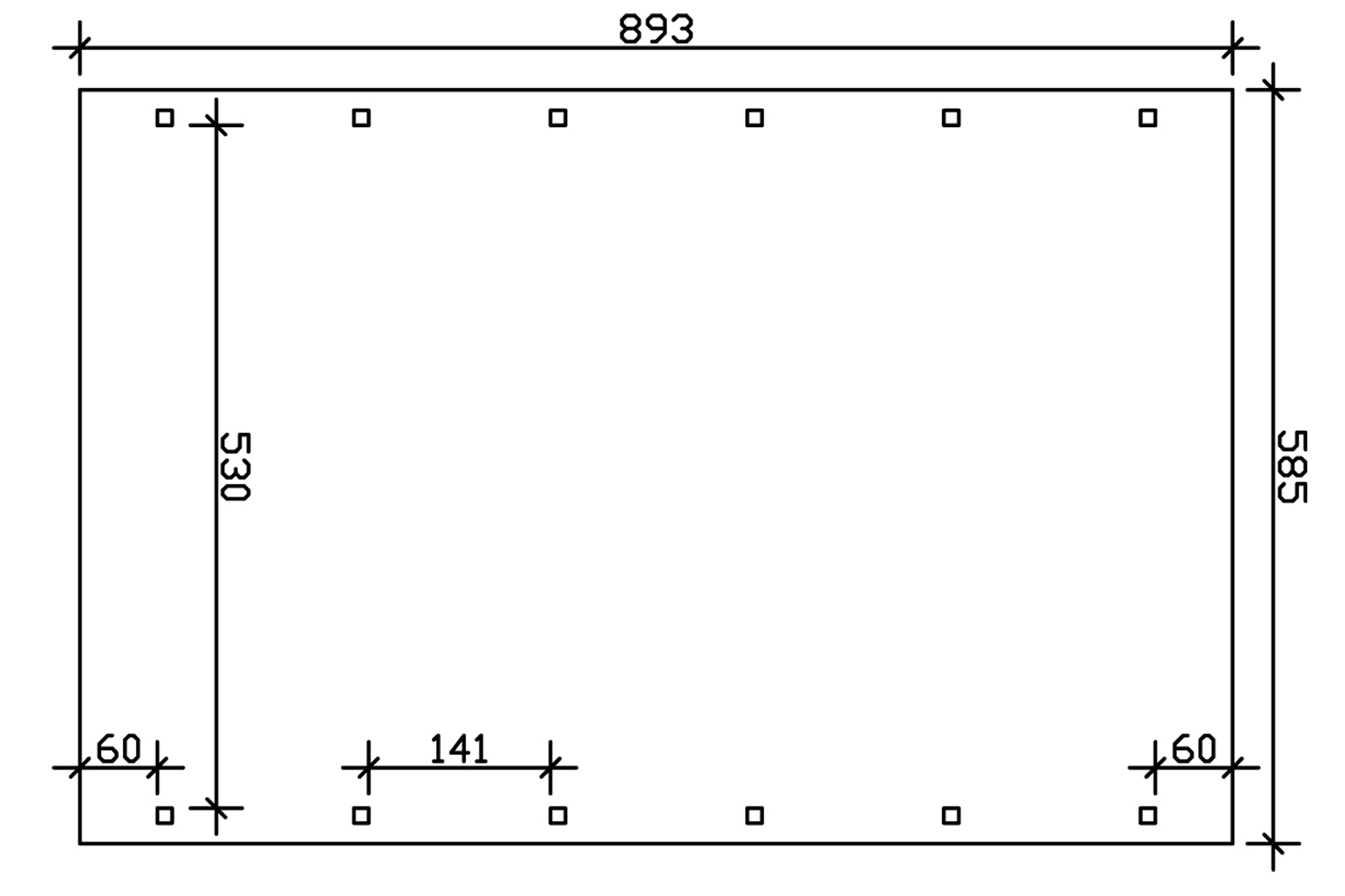

Post spacing (width):	530 cm
Post spacing (depth):	141 cm
Number of posts:	12 Stück
Anchoring:	Post anchors
Snow load:	1.25 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	85.93 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	6 weeks
Number of packages:	1
package weight 1:	1124 kg
packaging width 1:	560 cm
packaging height 1:	60 cm
packaging length 1:	120 cm
Total weight:	1124 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)
