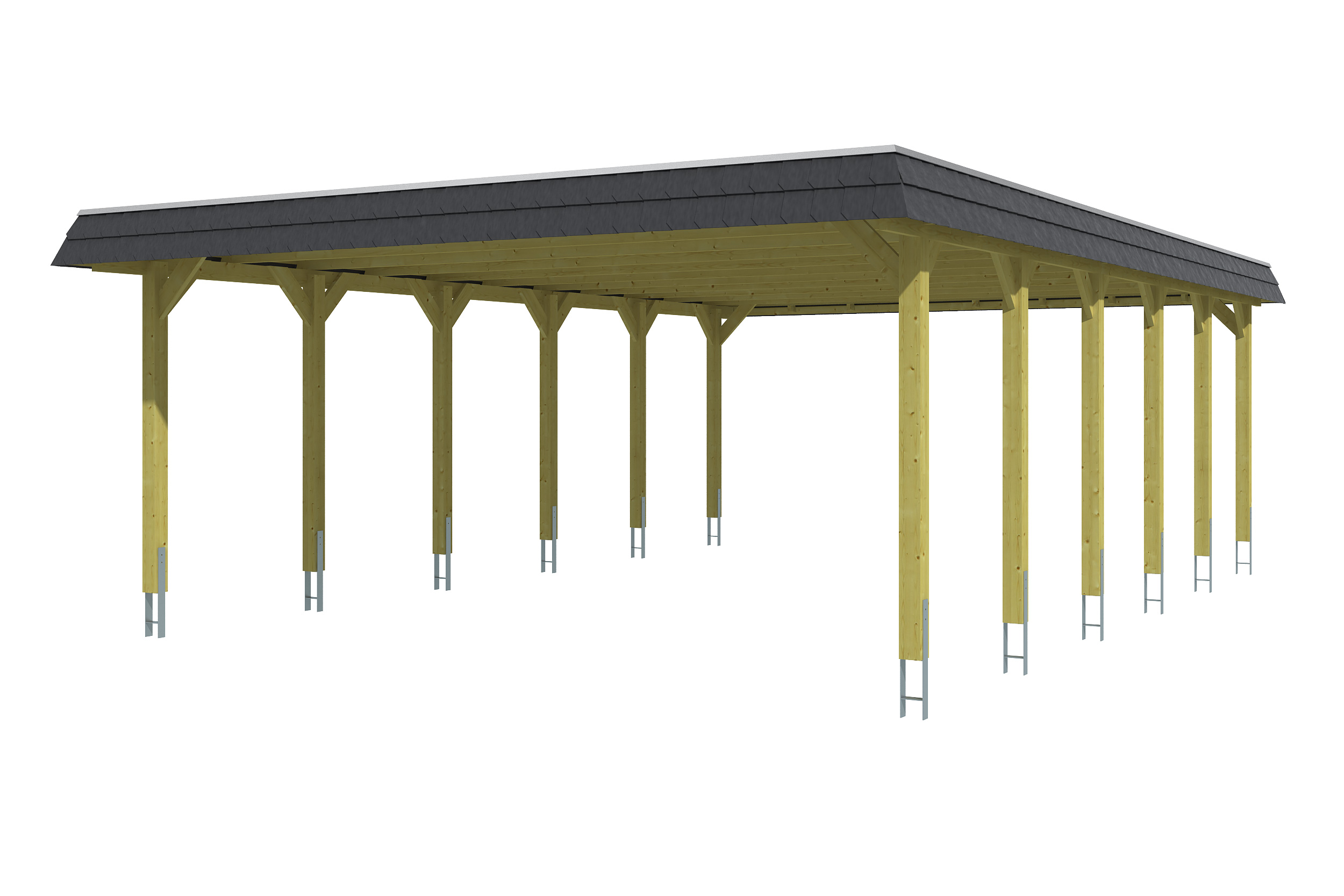

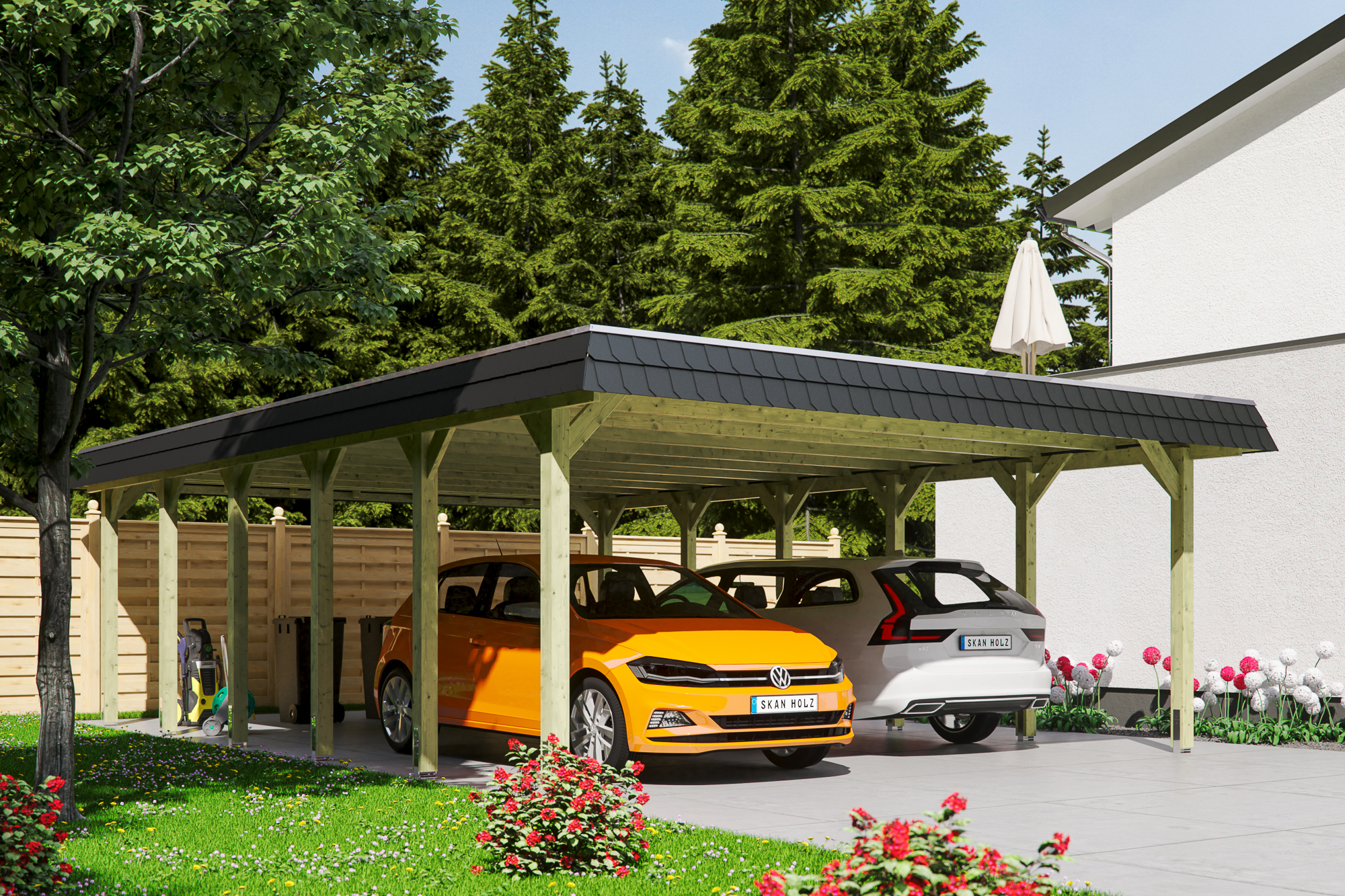

Carport Spreewald 585 x 893 cm with EPDM roof, black fascia

€8,485.00*

Prices incl. VAT plus shipping costs

Color

Green

Walnut

Size

585 x 893 cm

585 x 741 cm

585 x 589 cm

Material roof covering

Aluminium roof panels with trapezoidal profile

Roof boards with EPDM rubber roofing

Product number: 313907-99-35

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

SKAN HOLZ Carport Spreewald

Flat-roof carport

Exterior dimensions 585 x 893 cm

Structure of impregnated softwood

Green impregnated

posts 11,5 x 11,5 cm including H-post anchor

Roofing of 20 mm-thick roof boarding with EPDM foil

circular black facing in slate look with aluminium end edge

including plastic gutter with downpipe

Construction

The construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.

Color treatment

Water-based impregnation protects the wooden components of this building kit from fungus and insect infestations. The building kit can be assembled immediately upon delivery. The wooden surface should be further treated no sooner than 2-3 sunny months later, after the excess impregnation has dried. Lightly sand and clean the surface prior to coating. Apply two coats of premium wood varnish to the surface. Look for good UV protection of the products and follow the guidelines of the varnish manufacturer. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.

Roofing

Roofing consists of 19 mm-thick roof boarding with EPDM foil. EPDM foil is easy to lay, safe and durable roofing for roofs with low pitch. It features long service life, high elasticity, and excellent resistance to UV radiation. It is laid as one piece using cold bonding with the provided adhesive.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Flat-roof carport

Structure of impregnated softwood

Green impregnated

Roof boarding with EPDM foil

Posts 11,5 x 11,5 cm

Material:	Softwood
Color:	Green
Color treatment:	impregnated
Size:	585 x 893 cm
Basic width:	553 cm
Basic length:	773 cm
Total width:	585 cm
Total length:	893 cm
Roof ridge height:	250 cm
Roof eave height:	232 cm
Total height (front):	250 cm
Total height (behind):	232 cm
Roof shape:	Flat roof
Material roof covering:	Roof boards with EPDM rubber roofing
Color roofing:	Black
Roof thickness:	20 mm
Roof surface:	46.91 m²
Roof edging:	Circumferential fascia with alu edges
Roof slope:	backwards
Slope:	1.2 °
Roof overhang (front):	60 cm
Roof overhang (behind):	60 cm
roof overhang (left):	16 cm
roof overhang (right):	16 cm
Base surface:	52.24 m²
Building volume:	125.9 m³
Passage width:	530 cm
Passage height (front):	215 cm
Passage height (behind):	197 cm
Thickness of posts:	11,5 x 11,5 cm
Post length:	220 cm
Post spacing (width):	530 cm
Post spacing (depth):	141 cm
Number of posts:	12 Stück
Anchoring:	Post anchors
Snow load:	1.25 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	203.98 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	4 weeks
Number of packages:	2
package weight 1:	1400 kg
packaging width 1:	560 cm
packaging height 1:	70 cm
packaging length 1:	120 cm
package weight 2:	120 kg
packaging width 2:	50 cm
packaging height 2:	60 cm
packaging length 2:	50 cm
Total weight:	1520 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)
