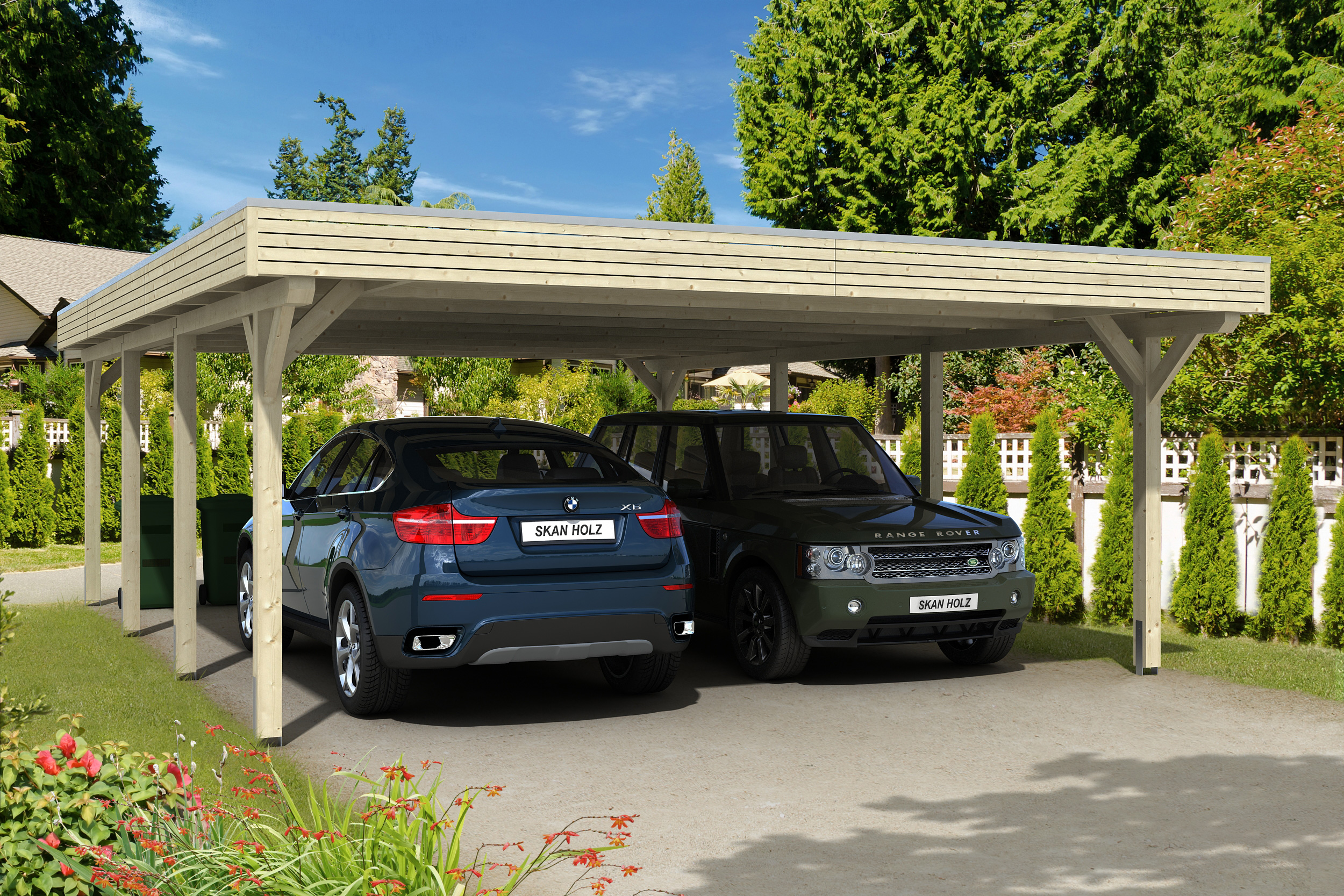

Carport Spessart 611 x 846 cm, untreated

€8,275.00*

Prices incl. VAT plus shipping costs

Color

Natural

Light oak

Walnut

White

Slate-grey

Anthracite

Size

611 x 846 cm

611 x 604 cm

Material roof covering

Aluminium roof panels with trapezoidal profile

Product number: 244812

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

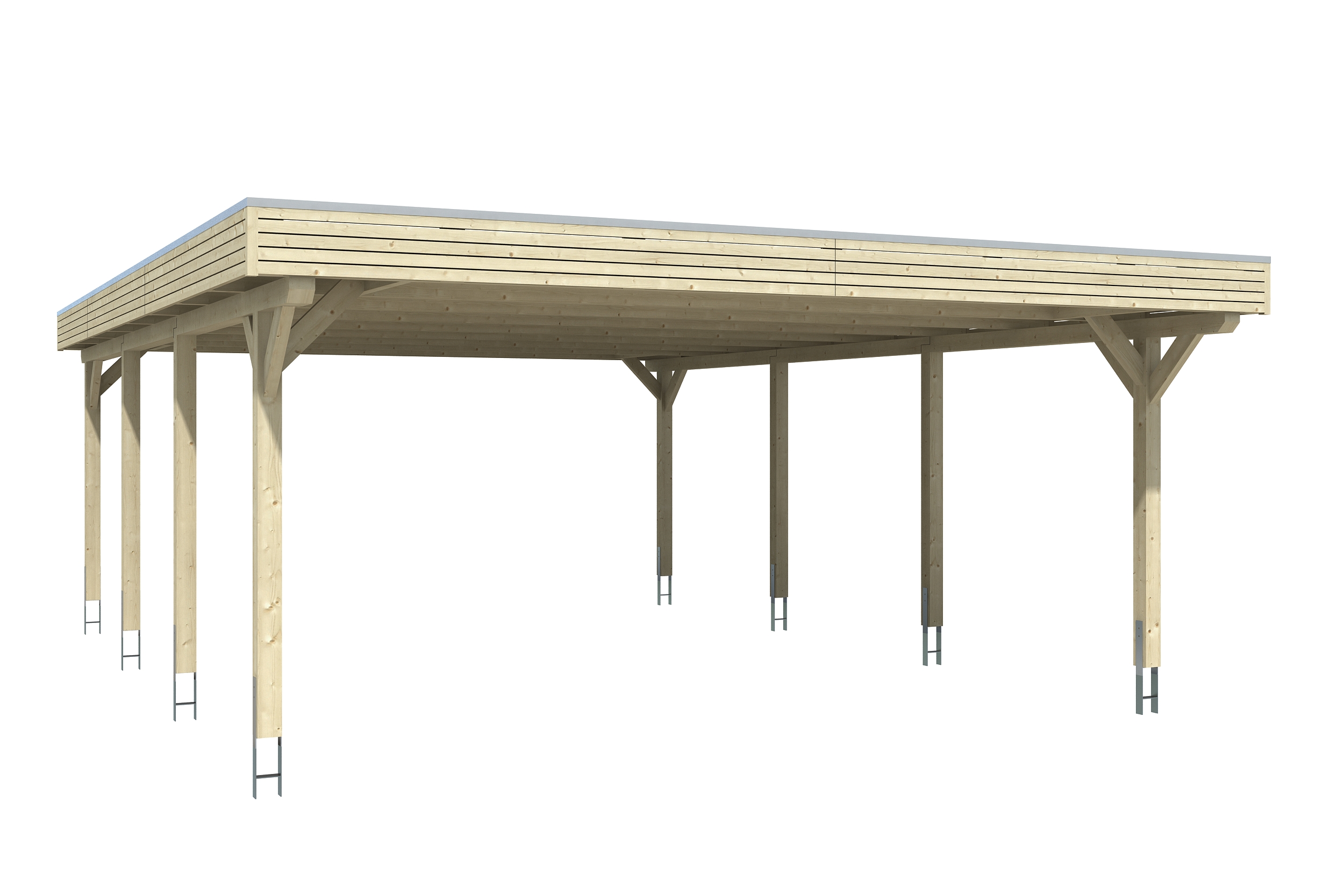

SKAN HOLZ Carport Spessart

Flat-roof carport

Exterior dimensions 611 x 846 cm

solid structure of high quality glued laminate (BSH spruce)

not colour-treated

posts 12 x 12 cm including H-post anchor

Aluminium roof panels, coated in anthracite paint

circular rhombus facing with aluminium end edge

including plastic gutter with downpipe

Construction

The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.

Color treatment

This building kit is not treated with color. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular application of protective coatings is thus essential. Primer should be applied to all sides prior to assembly. First apply wood primer to protect against fungus and insects.
Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.

Roofing

Roofing consists of aluminium roof panels with trapezoidal profile, paint-coated (top face anthracite/underside light grey). Unbreakable and hail-resistant. High noise development during precipitation. Formation of condensation possible during temperature fluctuations. High form stability at high surface temperatures.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Flat-roof carport

Solid structure of glued laminate (BSH spruce)

not Colour-treated

Aluminium roof panels

Posts 12 x 12 cm

Material:	Glulam, spruce
Color:	Natural
Color treatment:	Untreated
Size:	611 x 846 cm
Basic width:	574 cm
Basic length:	738 cm
Total width:	611 cm
Total length:	846 cm
Roof ridge height:	258 cm
Roof eave height:	236 cm
Total height (front):	258 cm
Total height (behind):	236 cm
Roof shape:	Flat roof
Material roof covering:	Aluminium roof panels with trapezoidal profile
Color roofing:	Anthracite
Roof thickness:	0,5 mm
Roof surface:	50.24 m²
Roof edging:	Wooden fascia with alu edges
Roof slope:	backwards
Slope:	1.2 °
Roof overhang (front):	74 cm
Roof overhang (behind):	34 cm
roof overhang (left):	18 cm
roof overhang (right):	18 cm
Base surface:	51.69 m²
Building volume:	127.68 m³
Passage width:	550 cm
Passage height (front):	220 cm
Passage height (behind):	198 cm
Thickness of posts:	12 x 12 cm
Post length:	220 cm
Post spacing (width):	550 cm
Post spacing (depth):	230 cm
Number of posts:	8 Stück
Anchoring:	Post anchors
Snow load:	1.25 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	83.41 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	4 weeks
Number of packages:	1
package weight 1:	1072 kg
packaging width 1:	620 cm
packaging height 1:	60 cm
packaging length 1:	120 cm
Total weight:	1072 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)

Accessories

Sidewall for caport Spessart 230 x 160 cm, untreated

Sidewall Rhombus for installation in SKAN HOLZ carportThe walls consist of Rhombus sectional strips, loosely supplied, which are screwed between the posts.Product featuresWidth: 230 cmHeight: 160 cmthickness battens: 2,8 x 5,6 cmMaterial: nordic sprucenot colour-treatedPhoto galleryAny illustrated terrace roofs, colour treatment and decoration are not included in scope of supply. This involves customer photos, which are to provide you with an impression of the installed condition.ConstructionThe construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.Color treatment This building kit is not treated with color. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular application of protective coatings is thus essential. Primer should be applied to all sides prior to assembly. First apply wood primer to protect against fungus and insects. Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.Sidewall RhombusSuitable for post spacing of 230 cmNordic sprucenot Colour-treated

€379.00*

Details

Backwall for caport Spessart 550 x 160 cm, untreated

Backwall Rhombus for installation in SKAN HOLZ carportThe walls consist of Rhombus sectional strips, loosely supplied, which are screwed between the posts.Product featuresWidth: 550 cmHeight: 160 cmthickness battens: 2,8 x 5,6 cmthickness posts: 12 x 12 cmincluding H-post anchorMaterial: nordic sprucenot colour-treatedPhoto galleryAny illustrated terrace roofs, colour treatment and decoration are not included in scope of supply. This involves customer photos, which are to provide you with an impression of the installed condition.ConstructionThe construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.Color treatment This building kit is not treated with color. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular application of protective coatings is thus essential. Primer should be applied to all sides prior to assembly. First apply wood primer to protect against fungus and insects. Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.Backwall RhombusSuitable for post spacing of 550 cmNordic sprucenot Colour-treated

€1,005.00*

Details

Snow load 613x846/611x846/630x879cm 2,00 kN/m², untreated

The SKAN HOLZ increased snow-load consists of additional rafters, which are mounted between the existing roof rafters. This reduces the rafter spacing of the carport and increases load capacity. The number and size of the rafters varies according to carport.Increased snow load increases the snow load of the carport to 2,0 kN/m².This snow-load increase contains 6 additional rafters and fits the following models:Carport Emsland 613 x 846 cmCarport Wendland 630 x 879 cmCarport Spessart 611 x 846 cmnot colour-treatedPlease be aware:Increased snow load cannot subsequently be backfitted on the carports. Before assembling, please find out what the snow-load limit is in your area.ConstructionThe construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.Color treatment This building kit is not treated with color. Wood in outdoor areas is constantly exposed to the elements, such as fungus and insect infestations. Regular application of protective coatings is thus essential. Primer should be applied to all sides prior to assembly. First apply wood primer to protect against fungus and insects. Then apply an intermediate and a finishing coat of premium wood varnish or paint to protect against color change and damage. Calculate service intervals of about 4-5 years, prior to the appearance of visible damage. Follow the processing guidelines of the varnish manufacturer.Snow load2,00 kN/m²Glued laminatenot Colour-treated

€1,849.00*

Details

Post extension 12x12cm in running meters, glulam, untreated

Do you need longer posts?Order the post extension for your terrace roof or carport of glued laminate. The posts in the building kits are then replaced with longer posts.Product featuresThickness: 12 x 12 cmMaterial: glulam, sprucenot colour-treatedAttention: the surcharge applies per post, and they can only be ordered directly with the carport/terrace roof.Post extension 12x12cm in running meters12 x 12 cmGlued laminatenot Colour-treated

€38.94*

Details
