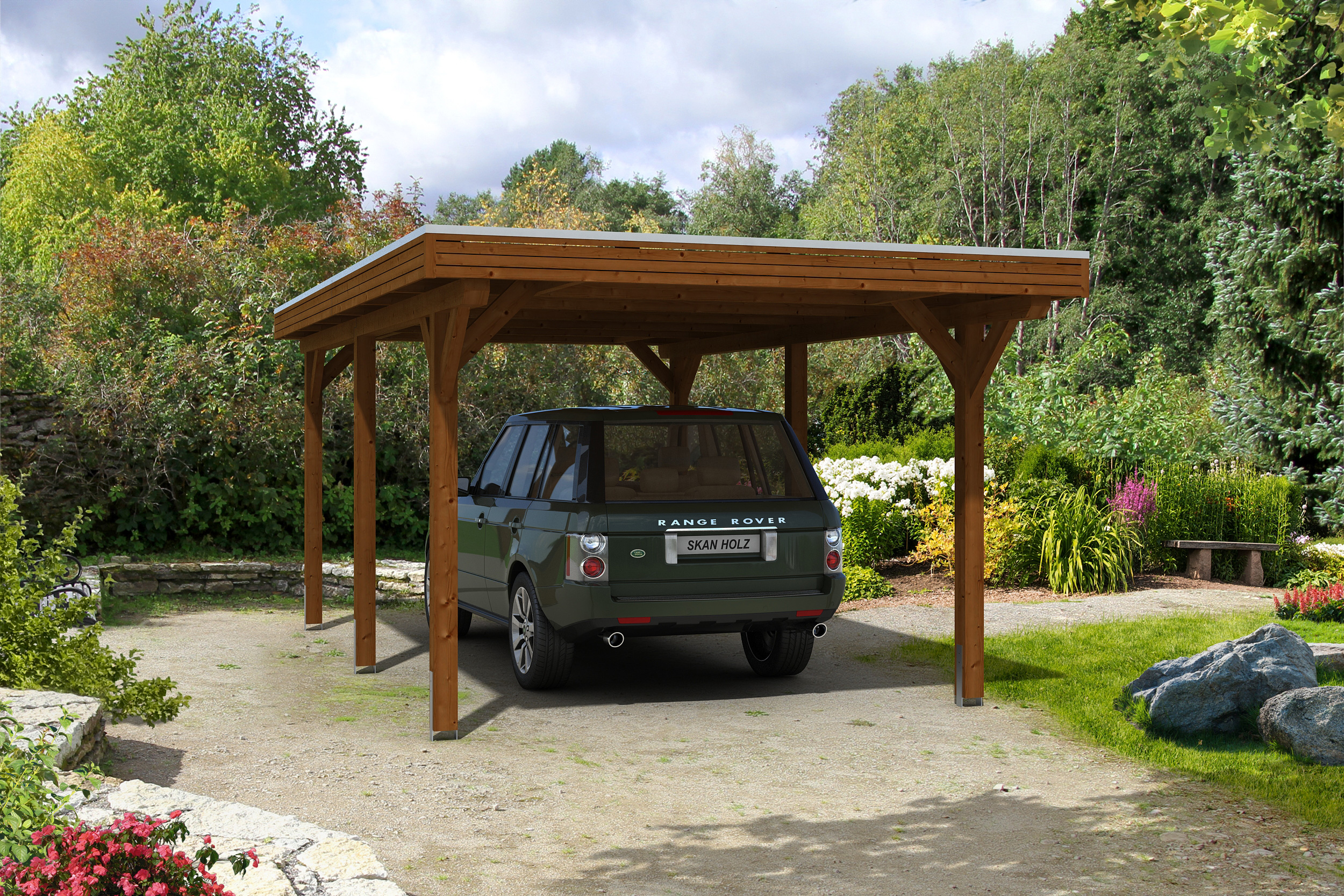

Carport Spessart 355 x 604 cm, colour pre-treated walnut

€4,829.00*

Prices incl. VAT plus shipping costs

Color

Natural

Light oak

Walnut

White

Slate-grey

Size

355 x 846 cm

355 x 604 cm

Product number: 244706-03-51

Premium quality for your garden

*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

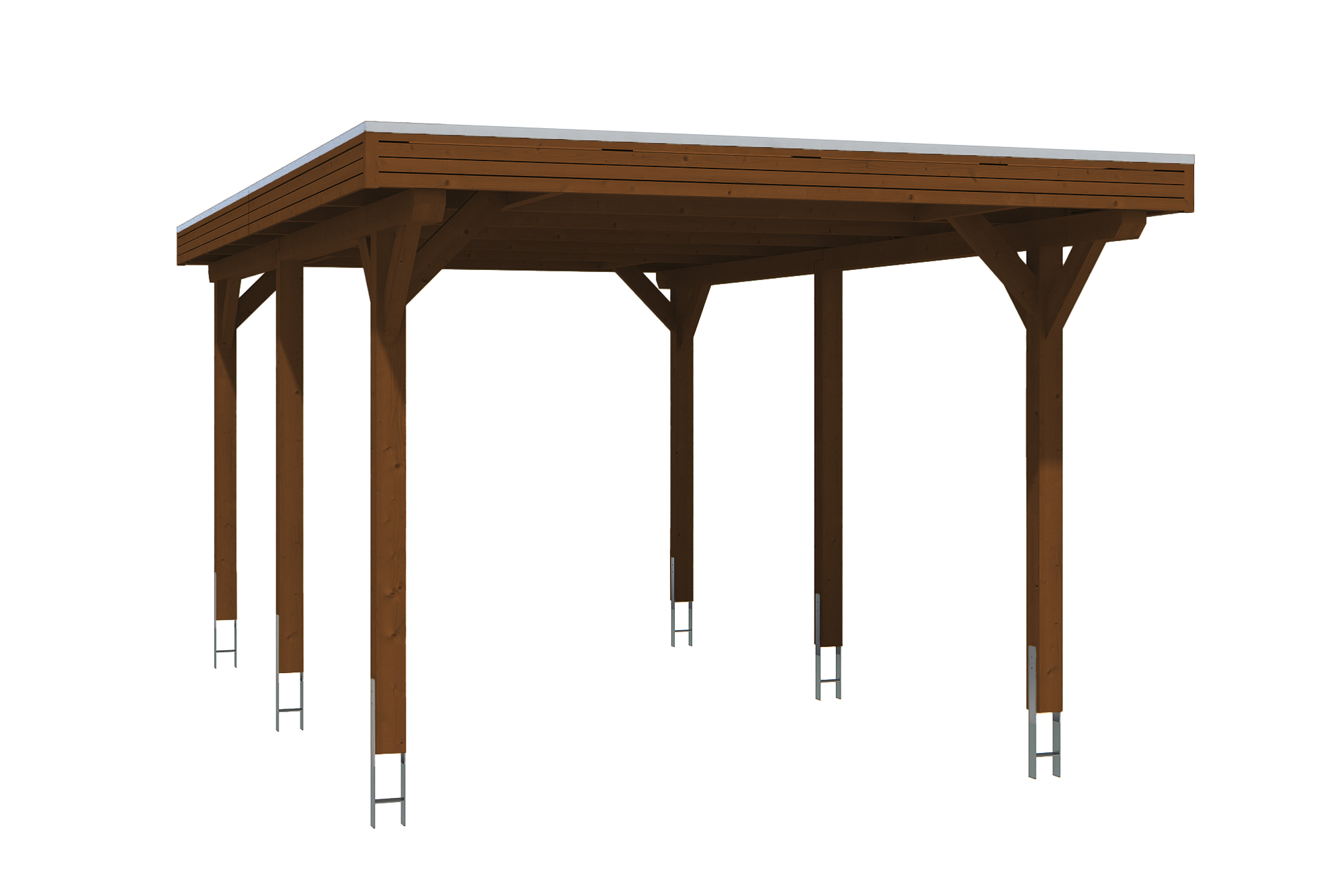

SKAN HOLZ Carport Spessart

Flat-roof carport

Exterior dimensions 355 x 604 cm

solid structure of high quality glued laminate (BSH spruce)

colour-treated in walnut

posts 12 x 12 cm including H-post anchor

Aluminium roof panels, coated in anthracite paint

circular rhombus facing with aluminium end edge

including plastic gutter with downpipe

Construction

The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.

Color treatment

The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.

You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.

If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.

Roofing

Roofing consists of aluminium roof panels with trapezoidal profile, paint-coated (top face anthracite/underside light grey). Unbreakable and hail-resistant. High noise development during precipitation. Formation of condensation possible during temperature fluctuations. High form stability at high surface temperatures.

Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.

Flat-roof carport

Solid structure of glued laminate (BSH spruce)

Colour-treated in walnut

Aluminium roof panels

Posts 12 x 12 cm

Material:	Glulam, spruce
Color:	Walnut
Color treatment:	Stained
Size:	355 x 604 cm
Basic width:	315 cm
Basic length:	496 cm
Total width:	355 cm
Total length:	604 cm
Roof ridge height:	243 cm
Roof eave height:	228 cm
Total height (front):	243 cm
Total height (behind):	228 cm
Roof shape:	Flat roof
Material roof covering:	Aluminium roof panels with trapezoidal profile
Color roofing:	Anthracite
Roof thickness:	0,5 mm
Roof surface:	20.49 m²
Roof edging:	Wooden fascia with alu edges
Roof slope:	backwards
Slope:	1.2 °
Roof overhang (front):	74 cm
Roof overhang (behind):	34 cm
roof overhang (left):	20 cm
roof overhang (right):	20 cm
Base surface:	21.44 m²
Building volume:	50.5 m³
Passage width:	291 cm
Passage height (front):	220 cm
Passage height (behind):	205 cm
Thickness of posts:	12 x 12 cm
Post length:	220 cm
Post spacing (width):	291 cm
Post spacing (depth):	230 cm
Number of posts:	6
Anchoring:	Post anchors
Snow load:	1.05 kN/m²
Wind pressure:	0.95 kN/m²
Surface wood:	39.8 m²
Type of installation:	Free standing
Mounting material:	Included
delivery time:	6 weeks
Number of packages:	1
package weight 1:	444 kg
packaging width 1:	360 cm
packaging height 1:	50 cm
packaging length 1:	120 cm
Total weight:	444 kg
Included in delivery:	H-post anchors, mounting material, assembly instructions
Not inclusiv:	Cement
Garantie:	5 years according to our warranty conditions
delivery Note:	Road that must support a 38t truck (Germany, mainland)

Accessories

Sidewall for caport Spessart 230 x 160 cm, colour pre-treated in walnut

Sidewall Rhombus for installation in SKAN HOLZ carportThe walls consist of Rhombus sectional strips, loosely supplied, which are screwed between the posts.Product featuresWidth: 230 cmHeight: 160 cmthickness battens: 2,8 x 5,6 cmMaterial: nordic sprucecolour-treated in walnutPhoto galleryAny illustrated terrace roofs, colour treatment and decoration are not included in scope of supply. This involves customer photos, which are to provide you with an impression of the installed condition.ConstructionThe construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Sidewall RhombusSuitable for post spacing of 230 cmNordic spruceColour-treated in walnut

€469.00*

Details

Backwall for caport Spessart 291 x 160 cm, colour pre-treated in walnut

Backwall Rhombus for installation in SKAN HOLZ carportThe walls consist of Rhombus sectional strips, loosely supplied, which are screwed between the posts.Product featuresWidth: 291 cmHeight: 160 cmthickness battens: 2,8 x 5,6 cmthickness posts: 12 x 12 cmincluding H-post anchorMaterial: nordic sprucecolour-treated in walnutPhoto galleryAny illustrated terrace roofs, colour treatment and decoration are not included in scope of supply. This involves customer photos, which are to provide you with an impression of the installed condition.ConstructionThe construction is made of solid Nordic fir. We use technically-dried, solid spruce wood, scanned for flaws, sorted and weatherproofed by finger-joint bonding according to length. Small fissures, branches and slight twists reflect the character of the materials used.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Backwall RhombusSuitable for post spacing of 291 cmNordic spruceColour-treated in walnut

€759.00*

Details

Snow load 354x604/355x604/362x628cm 2,00 kN/m², colour pre-treated in walnut

The SKAN HOLZ increased snow-load consists of additional rafters, which are mounted between the existing roof rafters. This reduces the rafter spacing of the carport and increases load capacity. The number and size of the rafters varies according to carport.Increased snow load increases the snow load of the carport to 2,0 kN/m².This snow-load increase contains 4 additional rafters and fits the following models:Carport Emsland 354 x 604 cmCarport Wendland 362 x 628 cmCarport Spessart 355 x 604 cmcolour-treated in walnutPlease be aware:Increased snow load cannot subsequently be backfitted on the carports. Before assembling, please find out what the snow-load limit is in your area.ConstructionThe construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.Color treatment The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.Snow load2,00 kN/m²Glued laminateColour-treated in walnut

€425.00*

Details

Post extension 12x12cm in running meters, glulam, colour pre-treated in walnut

Do you need longer posts?Order the post extension for your terrace roof or carport of glued laminate. The posts in the building kits are then replaced with longer posts.Product featuresThickness: 12 x 12 cmMaterial: glulam, sprucecolour-treated in walnutAttention: the surcharge applies per post, and they can only be ordered directly with the carport/terrace roof.Post extension 12x12cm in running meters12 x 12 cmGlued laminateColour-treated in walnut

€48.67*

Details
