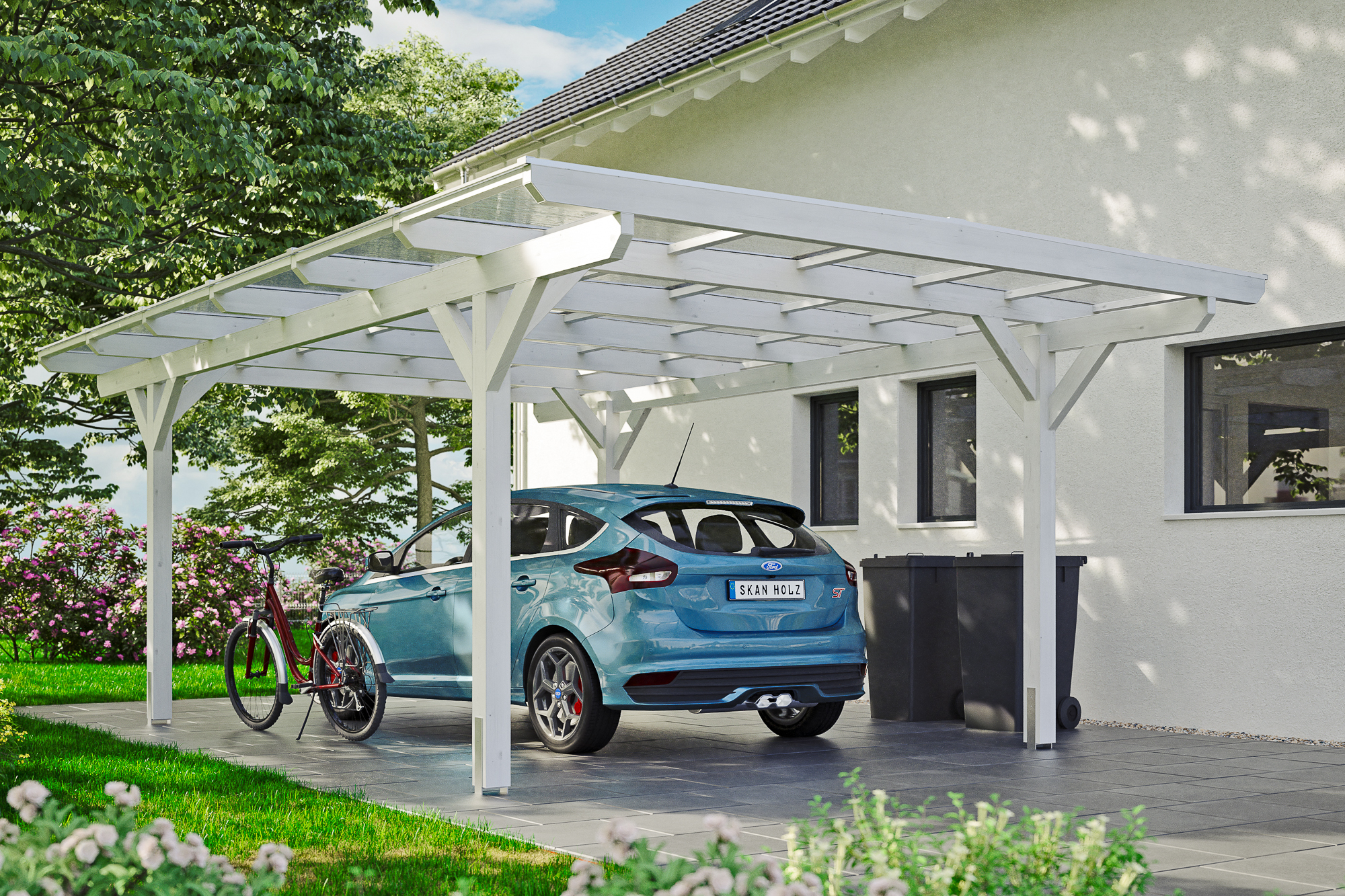

Carport Odenwald 428 x 648 cm, colour pre-treated white

€4,815.00*

Color
Size
Product number: 246052-11-25
Premium quality for your garden
*Manufacturer's recommended retail price. Delivery in Germany free kerbside / Austria free DIY store. Please note that an order can only be placed via our dealers. Assembly instructions Data sheet

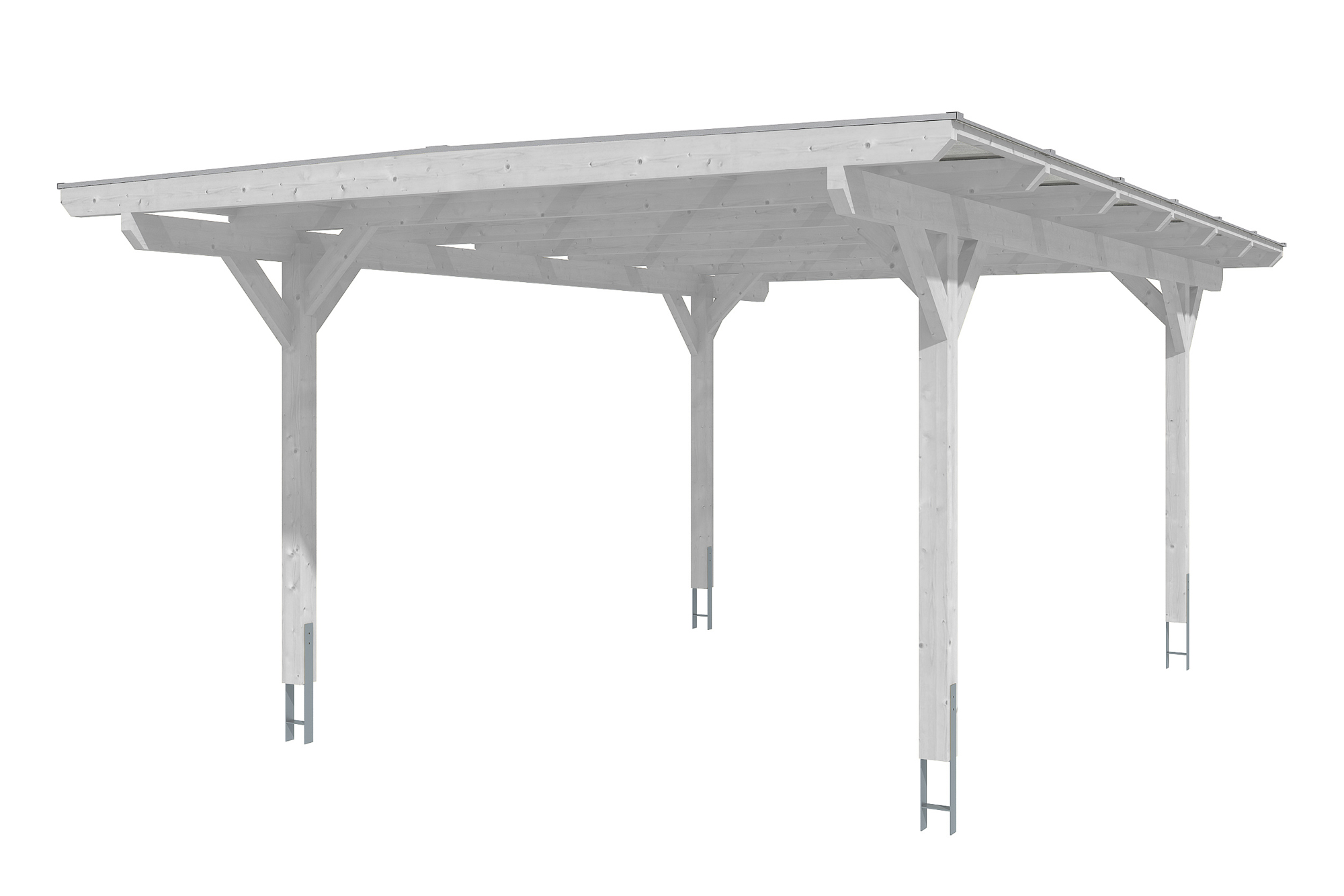

SKAN HOLZ Carport Odenwald


  • Design flat-roof carport

  • Exterior dimensions 428 x 648 cm

  • solid structure of high quality glued laminate (BSH spruce)

  • colour-treated in white

  • posts 12 x 12 cm including H-post anchor

  • straight struts

  • Roofing 10 mm Polycarbonate sheet in clear




Construction

The construction is made of glued laminate timber, consisting of several dried layers, attached to one another with finger-jointing. They are glued onto one another for weather-resistance. This results in a load-bearing beam which is more resistant to warping and less prone to fissures than naturally grown wood.


Color treatment

The color pre-treated parts of the building kit are treated with premium varnish and paint. This protects wood from blue stain and UV damage, as well as from swelling and fading, while still allowing the wooden texture to shine through. At the factory, parts are flow-coated twice on all sides with varnish and the excess subsequently brushed off.

You can begin with assembly immediately upon delivery, there is no need for cumbersome priming and painting. Every building kit includes enough touch-up paint or varnish to repair damage and cover screws and cut surfaces at least two times.

If you wish to further enhance the surface, lightly sand the visible surfaces and coat them with premium varnish or paint after assembly. Traces of storage on all-round color-treated components are due to technical reasons.


Roofing

Roofing consists of stable, 10 mm-thick polycarbonate twin-wall sheet. The top face is provided with a UV-reflecting layer. It is attached with a high-quality aluminium profile with EPDM lip-seals.


Bracing

The building kit includes 60 cm-long H-post anchors of galvanized flat steel for embedding in concrete in the site-built deep foundation (for size and lay-out see assembly instructions). They firmly connect the posts to the subsurface to ensure high stability.


  • Design flat-roof carport

  • Solid structure of glued laminate (BSH spruce)

  • Colour-treated in white

  • Roofing: Polycarbonate sheet in clear

  • Posts 12 x 12 cm

Material: Glulam, spruce
Color: White
Color treatment: Stained
Size: 428 x 648 cm
Basic width: 350 cm
Basic length: 440 cm
Total width: 428 cm
Total length: 648 cm
Roof ridge height: 238 cm
Roof eave height: 234 cm
Total height (front): 238 cm
Total height (behind): 238 cm
Roof shape: Flat roof
Material roof covering: Polycarbonate multiwall sheets
Color roofing: Transparent
Roof thickness: 10 mm
Roof surface: 27.73 m²
Roof slope: to the side
Slope: 1 °
Roof overhang (front): 104 cm
Roof overhang (behind): 104 cm
roof overhang (left): 39 cm
roof overhang (right): 39 cm
Base surface: 27.73 m²
Building volume: 65.45 m³
Passage width: 326 cm
Passage height (front): 220 cm
Passage height (behind): 220 cm
Thickness of posts: 12 x 12 cm
Post length: 220 cm
Post spacing (width): 326 cm
Post spacing (depth): 416 cm
Number of posts: 4 Stück
Anchoring: Post anchors
Snow load: 1.25 kN/m²
Wind pressure: 0.95 kN/m²
Surface wood: 34.83 m²
Type of installation: Free standing
Mounting material: Included
delivery time: 6 weeks
Number of packages: 1
package weight 1: 467 kg
packaging width 1: 650 cm
packaging height 1: 50 cm
packaging length 1: 120 cm
Total weight: 467 kg
Included in delivery: H-post anchors, mounting material, assembly instructions
Not inclusiv: Cement
Garantie: 5 years according to our warranty conditions
delivery Note: Road that must support a 38t truck (Germany, mainland)
