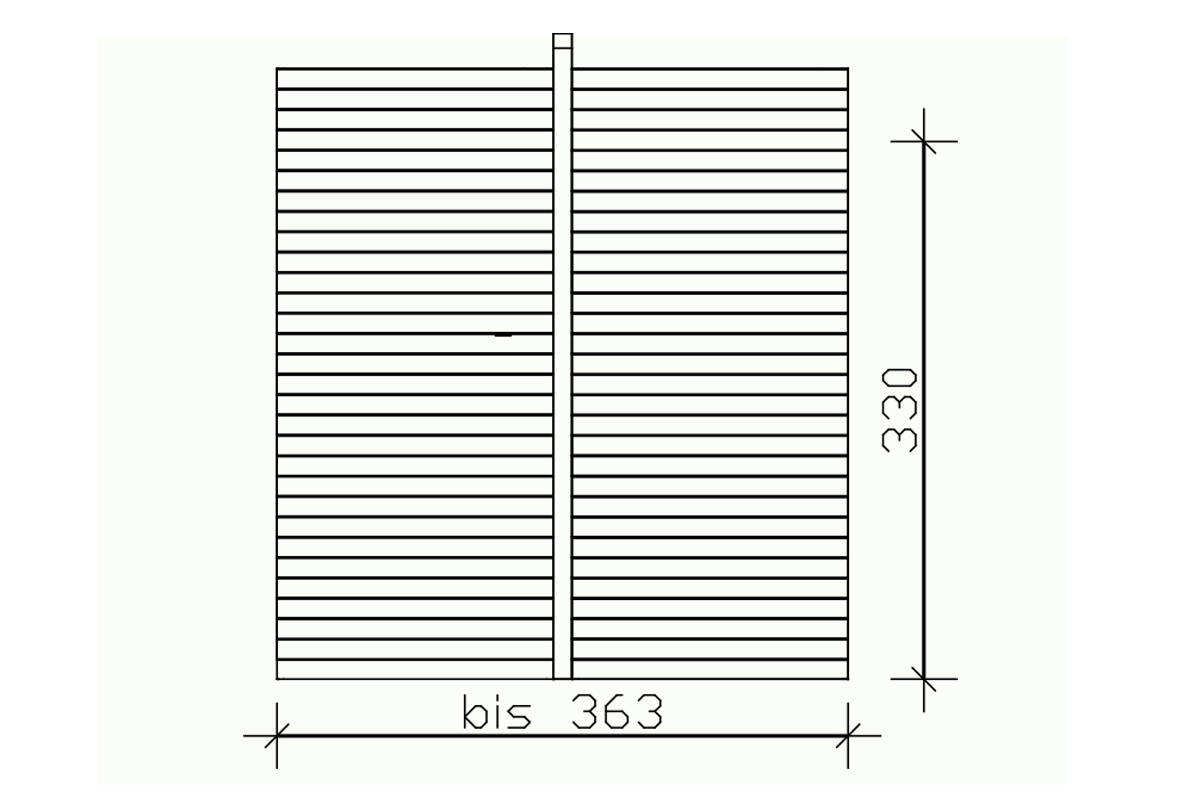

Back panel profiled formwork 363 x 330 cm, walnut

Premium quality for your garden
  Assembly instructions Data sheet

Rear wall made of profiled boarding for installation under a SKAN HOLZ carport


Profiled formwork consists of 20 mm thick profiled boards supplied loose, which are fitted together and mounted between the posts.


Product features


  • Width: 363 cm
  • Height: 330 cm
  • Thickness: 20 mm
  • Including posts 11.5 x 11.5 cm
  • H-post anchor included
  • Material: Spruce
  • Colour-treated in walnut


Construction


The construction is made of impregnated softwood. Spruce and pine wood, which is not technically-dried, acquires its greenish color from metal salts released by the impregnating agent. They protect wood against fungus and insect infestations, but do not contain UV protection. Impregnation gives wood higher residual moisture. Subsequent drying can lead to release of resin, twisting and formation of drying cracks, which pose no static disadvantage and rather reflect the natural materials used.


Colour treatment


The colour-treated components are coated with a layer of paint at the factory. The coating allows the natural wood grain to remain visible whilst ensuring a uniform surface finish. The components are coated on all sides twice at the factory, after which any excess material is brushed off.


Thanks to this factory pre-treatment, the components can be assembled immediately upon delivery. A primer coat prior to assembly is not required. Each kit also includes a quantity of wood stain or paint for touching up cut edges, screw holes or any damage caused during assembly. These areas should be treated in accordance with the installation instructions.


For a personalised finish, the visible wooden surfaces can be lightly sanded after assembly and treated with a suitable wood stain or paint. Components that have been colour-treated on all sides may show storage marks due to technical reasons.


  • Rear wall made of profiled formwork
  • For installation in a Friesland carport
  • Colour-treated in walnut
  • Height of 330 cm
  • Including installation post and post anchor
Material: Softwood
Color: Walnut
Color treatment: impregnated
Size: 363 x 330 cm
Width: 363 cm
Depth: 12 cm
Height: 330 cm
Wall type: Profiled siding
Wall thickness: 20 mm
Thickness of posts: 11,5 x 11,5 cm
Number of posts: 1 Piece
Mounting material: Included
delivery time: 3-4 weeks
Number of packages: 1
package weight 1: 116 kg
packaging width 1: 370 cm
packaging height 1: 20 cm
packaging length 1: 30 cm
Total weight: 116 kg
Garantie: 5 years according to our warranty conditions
delivery Note: Road that must support a 38t truck (Germany, mainland)
